Challenge Titan 200 20" Programmable Hydraulic Paper Cutter [with Tilt Shield]
14995 NewCondition InStock

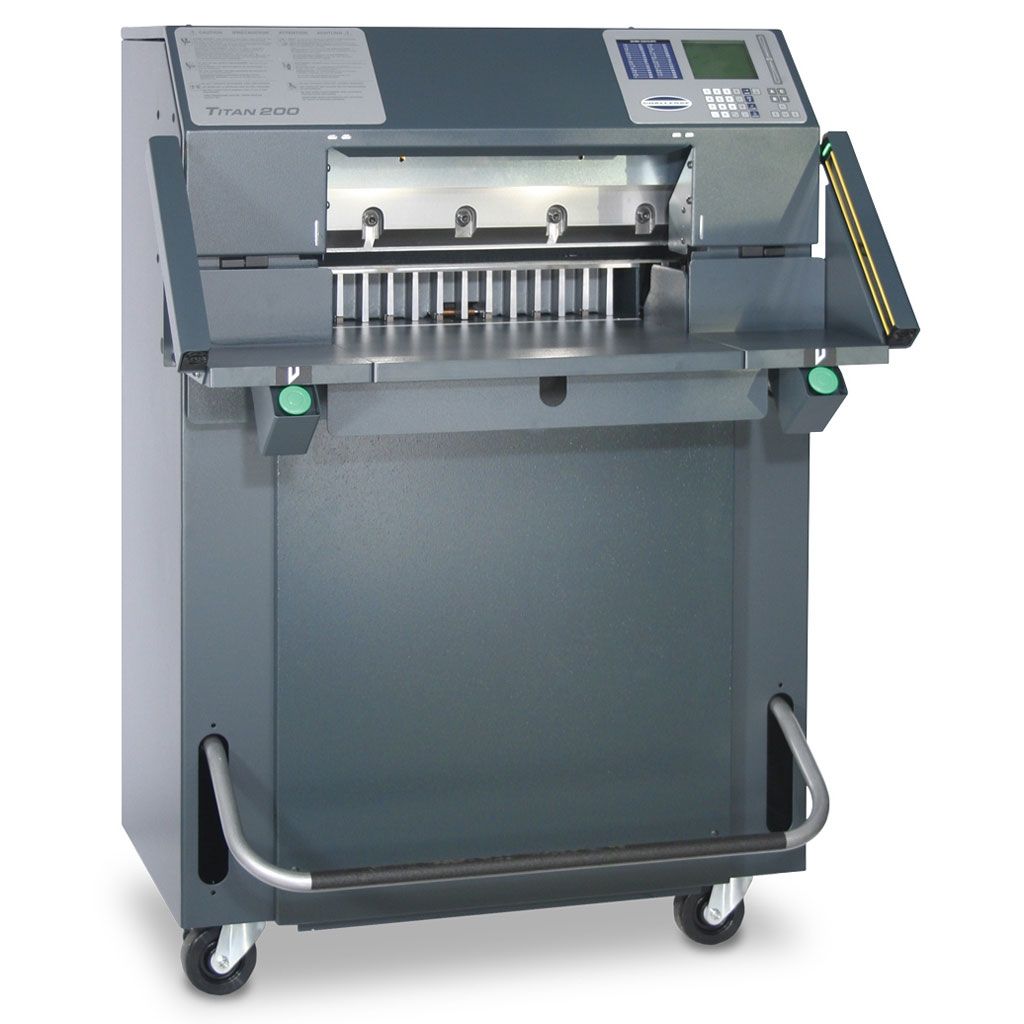

Challenge Titan 200 20" Programmable Hydraulic Paper Cutter [with Tilt Shield]

Item #: 04CHLT200P
Brand: Challenge
  • Fully hydraulic cutting and clamping
  • Solid cast iron and steel construction ensure years of trouble-free operation
  • Solid 1-inch thick tool grade aluminum table offers the strong work surface required in production environments
  • Cutter Capacity: 3 1/4" Thick Stack (About 810 Sheets) / 3" (750 Sheets) with False Clamp
  • Price Match Guarantee!
  • Oversize / Truck shipping
  • Brand New
  • Availability: Usually ships in about 3 weeks

$14,995.00

SWIPE FOR MORE IMAGES
  • 0
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
video

Overview

The most economical hydraulically powered paper cutter on the market, the Challenge Titan 200 industrial cutter makes the perfect addition to any in-plant or production print house that needs fast, on-demand cutting for clients, as well as for in-house use. Made in the USA and constructed of solid steel, cast iron and aluminum, the Titan 200 cutter offers consistent and accurate cutting, all in a durable unit with an attractive look. With a long 20" cutting length and a capacity of up to 3 ¼" without the false clamp, or 3" with, you can produce even large jobs quickly and with ideal efficiency. Floating fingers prevent individual sheets from being stuck under the back gauge, while a bright LED cut indicator light tells you precisely where the blade will connect with your stack. With the continued Challenge motto of innovation and strength, offering virtually maintenance-free operation. The set-up menu is easy to navigate, and allows you to accurately set the machine to cut to your exact specifications. Memory storage of up to 99 total jobs and 9,801 total cut positions make repeat jobs extremely easy. And to make life on the operator even easier, it features self-diagnostics and error indications that walk you through any potential problems. To keep your users safe, this particular version of the Titan 200 features a tilt shield that covers the table during use, preventing any hands or other items within the cutting area. Also available is the Titan 200 with category 4 light beam safety curtains. If you are ready to step up to premium quality, then consider buying the Challenge Titan 200 Plexishield hydraulic cutter online. Included with your purchase are two high speed steel knives, three cutter sticks, one jogging block, one tool kit and the knife change safety holder assembly.

Specifications

Item #04CHLT200P
ManufacturerChallenge Machinery Company
Manufacturer Part NumberCMC-200C-TS
Brand NameTitan
Operating MethodProgrammable / Hydraulic
Included Supplies & Accessories2 High Speed Steel Knifes
3 Plastic Cutting Sticks
1 Jogging Aid
1 User Manual
1 Tool Kit
1 Knife Change Safety Holder Assembly
Power Voltage230 Volts, 60Hz, 12 Amps
Dimensions36" W x 49 ⅝" D x 53" H
CertificationsC, C-UL, CE
Manufacturer's Warranty1 Year Limited
Size20"
Cutting Width20"
Cutter Capacity*3 ¼" Thick Stack (About 810 Sheets) / 3" (750 Sheets) with False Clamp
Shipping Weight (lbs)920
Shipping InformationThis item ships via Truck (Common Carrier). It is the responsibility of the Consignee (receiver) to remove the product from the truck. If you do not have a loading dock or any other means to lift the freight off the truck and/or you need assistance bringing the product inside of your location please call (866) 537-2244. Click here for full details.

Description

With today’s digital print market placing great demands on your business, some decisions can be difficult. When it comes to choosing your next paper cutter, this one is easy...step up to a Challenge Titan 200 Hydraulic Paper Cutter! The Titan 200 continues the Challenge excellence of innovation and strength. It is based on solid cast iron and steel construction for maximum durability. UHMW gib surfaces, LED line lights, and a one-inch thick solid tool aluminum table require virtually no maintenance for years of trouble-free operation. The intuitive menu-driven controller allows variable mode data entry with up to 99 jobs / 9,801 total cut position storage. The optional electronic clamp pressure control minimizes waste. Machine self-diagnostics and error indication walks the operator through any potential difficulties.

The Challenge Titan 200 Hydraulic Cutter meets the toughest safety standards in the industry today! Light-safety curtains, enclosed rear table, two-hand cut buttons, and knife safety latch contribute to the UL and CE certifications. Proudly manufactured in the USA, The Titan 200 continues Challenge's legacy -- assurance that you made the right decision.

Features:

  • Fully hydraulic cutting and clamping

  • Solid cast iron and steel construction ensure years of trouble-free operation

  • Solid 1-inch thick tool grade aluminum table offers the strong work surface required in production environments

  • Bright red LED line light is easy to see and needs no future replacement

  • Optional electronic clamp pressure adjustment

  • Fully programmable controller offers intuitive operation and up to 9,801 total cut position storage

Videos

Challenge Machinery Titan 200 Hydraulic Paper Cutter | Overview | Binding101

Transcript: The Challenge Machinery Titan 200 Hydraulic Paper Cutters bridge the gap for digital, on-demand, and in-plant printers.

A combination of solid steel, cast iron, and tool-grade aluminum construction serves as the foundation for consistent and accurate cutting.

The black gauge with floating fingers ensures pages cannot get stuck underneath, while a bright red LED cutting line shows you exactly where the blade will hit your stack.

The Titan 200 features swift back gauge positioning and a t...
Read More
The Challenge Machinery Titan 200 Hydraulic Paper Cutters bridge the gap for digital, on-demand, and in-plant printers.

A combination of solid steel, cast iron, and tool-grade aluminum construction serves as the foundation for consistent and accurate cutting.

The black gauge with floating fingers ensures pages cannot get stuck underneath, while a bright red LED cutting line shows you exactly where the blade will hit your stack.

The Titan 200 features swift back gauge positioning and a table slot closure device.

A monitored knife safety latch prevents blade drifting, keeping your operator safe and your cut, accurate.

Two models are available: Either with a category 4 light-beam safety curtain, or a tilt-shield safety cover.

Programming the Titan 200 is simple for even novice operators, as the intuitive design walks you through the process. It can store up to 99 program sets with up to 9,801 cutting positions, making repeat jobs incredibly efficient. Trouble-shooting is also simple with self-diagnostic error indicators.
It features a manual foot clamp and will cut through up to a 3 ¼” thick stack, as well as cut pages up to 20” long.

Made in the USA, the powerful Titan 200 cutter is designed to meet the speed, accuracy, and efficiency demands of today’s digital and in-plant print providers. It meets the toughest safety standards in the industry, and features UL and CE certifications.

For more information on the Titan 200 cutter, visit Binding101.com or call the number on your screen.

How to Adjust Accuracy on Challenge Titan 200 Cutters

Transcript: In this video, we will show you how to adjust the accuracy on your Titan 200 Cutter. Please note that this video was created as an enhancement to the service manual; refer to the manual for additional information, specs, and procedures.

When your actual cut sheet is longer or off from your display, then accuracy adjustment is needed. I use 11" x 17" piece of paper to cover the whole area of the back gauge. Set my machine to 2". Make your cut. Take out my strip and take a measurement. Right n...
Read More
In this video, we will show you how to adjust the accuracy on your Titan 200 Cutter. Please note that this video was created as an enhancement to the service manual; refer to the manual for additional information, specs, and procedures.

When your actual cut sheet is longer or off from your display, then accuracy adjustment is needed. I use 11" x 17" piece of paper to cover the whole area of the back gauge. Set my machine to 2". Make your cut. Take out my strip and take a measurement. Right now my ruler says I am at 1 ¾" on the strip. To fix that, we go into our maintenance mode. Go into our parameters. Toggle down to "accuracy adjust", press enter. We'll enter our actual measured cut; in this case it was 1 ¾". Press enter. Now press clear. The back gauge will move back, find home, and then beep. To re-check your accuracy, go back to 2" set. Place your piece of paper against the back gauge. Now you can see my cut is right at 2".

For more information on the Titan 200 cutter, visit binding101.com or call the number on your screen.

How to Change the Blade on Challenge Titan 200 Cutter

Transcript: In this video, we will show you how to change the blade on your Challenge Titan 200 Paper Cutter. Please note that this video was created as an enhancement to the service manual; refer to the manual for additional information, specs, and procedures.

We're doing a blade change on the Titan 200 cutter. Your first step is to loosen your quarter twenty screws up above the blade; all the way out. Once those are out of your way, you loosen your first slotted screw and remove. Your second slat, an...
Read More
In this video, we will show you how to change the blade on your Challenge Titan 200 Paper Cutter. Please note that this video was created as an enhancement to the service manual; refer to the manual for additional information, specs, and procedures.

We're doing a blade change on the Titan 200 cutter. Your first step is to loosen your quarter twenty screws up above the blade; all the way out. Once those are out of your way, you loosen your first slotted screw and remove. Your second slat, and remove. This is where your knife handles will be screwed. Make sure they're good and snug so your blade doesn't slide; keeps you safe. Once they're tight, take out the rest of your blade screws. To get the blade out and remove it, loosen your handles while still holding pressure up, and then bring your knife down. Pull your knife out.

Now you've got your blade out, you will loosen the two bolts on your scabbard knife carrier; pull the screws. Dump the blade out, try not touch it - these blades are extremely sharp. Put in the dull blade. Put your handles into the new blade that you're going to put in the machine. Push it back. Insert the two bolts back into the carrier. Make sure that your screws are tight for shipping purposes.

To install the new blade, start low on the right hand side with your left end up. Be very careful not to chip the edge of your blade. Slide it into the carrier. Make sure you're all the way up to the top and tighten your handles tight to make sure they're not going to slip. And then insert your blade screws. Remove the handles. Insert the last 2 remaining screws, keep them snug. Not overly tight, but snug; you do not want your blade to slide in this position. Now your blade is in, you are going to want to flip your cut stick or put a new cut stick in. Here I flipped it to a clean side. And you're ready to go.

For more information on the Titan 200 cutter, visit Binding101.com or call the number on your screen.
