MBM Triumph™ 4850 18-5/8"Automatic Paper Cutter
- 0
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
Overview
Specifications
Item # | 04WTRU4850 |
---|---|
Manufacturer | MBM Corporation |
Manufacturer Part Number | CU0416L |
Brand Name | Triumph™ |
Operating Method | Clamp: Automatic Back Gauge: Manual [Hand Crank, Front of Machine] Blade: Electric [Two-Hand Activation Bars] |
Included Supplies & Accessories | 1 Steel Blade (Installed) 1 Cutting Stick (Installed) Stand with Storage Shelf Easy-Access Tool Holder Paper Jogging Block |
Compatible Supplies & Accessories | Optional Side Tables Replacement Blades Replacement Cutting Sticks |
Power Voltage | 115V, 60Hz (20 amp dedicated line required) |
Dimensions | 30" W x 41 ½" D x 51" H |
Certifications | GS, CE, CUL |
Manufacturer's Warranty | 1 Year Limited |
Size | 18 ⅝" |
Cutting Width | 18-5/8" |
Cutter Capacity* | 3" Thick Stack (About 750 Sheets) |
Narrow Cut | 1" |
Length Behind Blade | 18" |
Cutter Memory | No Memory |
Safety Features | SCS™ Safety Package (Check the Product Description for Full Details) |
Cutter Working Height (When Mounted to Stand) | 37" |
Shipping Weight (lbs) | 556 |
Shipping Information | This item ships via Truck (Common Carrier). It is the responsibility of the Consignee (receiver) to remove the product from the truck. If you do not have a loading dock or any other means to lift the freight off the truck and/or you need assistance bringing the product inside of your location please call (866) 537-2244. Click here for full details. |
Description

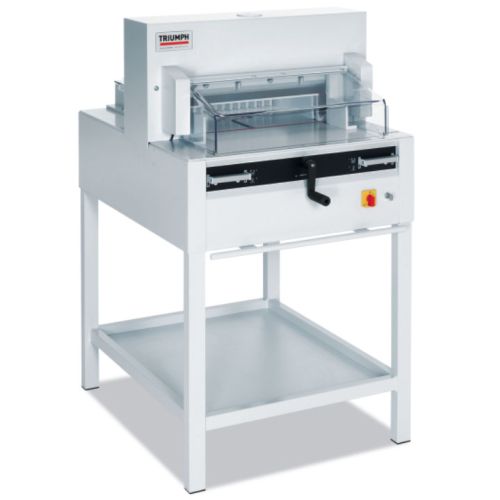

The MBM Triumph 4850 Automatic Cutter is powerful enough to cut through a stack of paper as thick as 3" and as wide as 18-5/8". It sits at a comfortable working height of 37" and features an electric blade and clamp drive, as well as a spindle-guided back gauge controlled by a calibrated crank. The front table digital display screen features multilingual operator guidance in either cementers or inches (cm or in). The Triumph 4815 Cutter features a bright LED optical cutting line that gives you a precise view of where the machine will cut. The high-quality German steel blade will power through for all your cutting needs while the all-metal construction makes the cutter strong and stable.
Safety concerns are put to bed with the MBM Triumph SCS® Safety Cutter System comprehensive package that ensures the protection of users. This package includes the following features: patented EASY CUT electronic blade activation bars for true two-hand operation; IR light beam safety curtain on front table; transparent safety cover on rear table; main switch and safety lock with key; 24 volt controls (low voltage); patented IDEAL safety drive; automatic blade and clamp return from every position; disc brake for instant blade stop; blade changing device covers cutting edge of blade; blade depth adjustment from outside of machine; blade and cutting stick can be changed without removing covers.
