3.5" x 2.5" Playing Card Box (13" x 19" Sheet, 4-Up) Dyna-Cut Flexible Rotary Die
708.39 NewCondition InStock

3.5" x 2.5" Playing Card Box (13" x 19" Sheet, 4-Up) Dyna-Cut Flexible Rotary Die

Item #: 05CMDPCB3525
Brand: Count
FAQ: 3 Questions, 3 Answers
  • Die: Playing Card Box
  • Cut Size: 2.5" x 3.5" x 0.75"
  • Sheet Size: 13" x 19"
  • Cuts per Sheet: 4
Additional Sizes Below
  • 85+ Years Experience
  • Free Shipping $75+
  • Brand New
  • In Stock

$708.39

SWIPE FOR MORE IMAGES
  • 0
  • 1
  • 2
  • 3
video

Overview

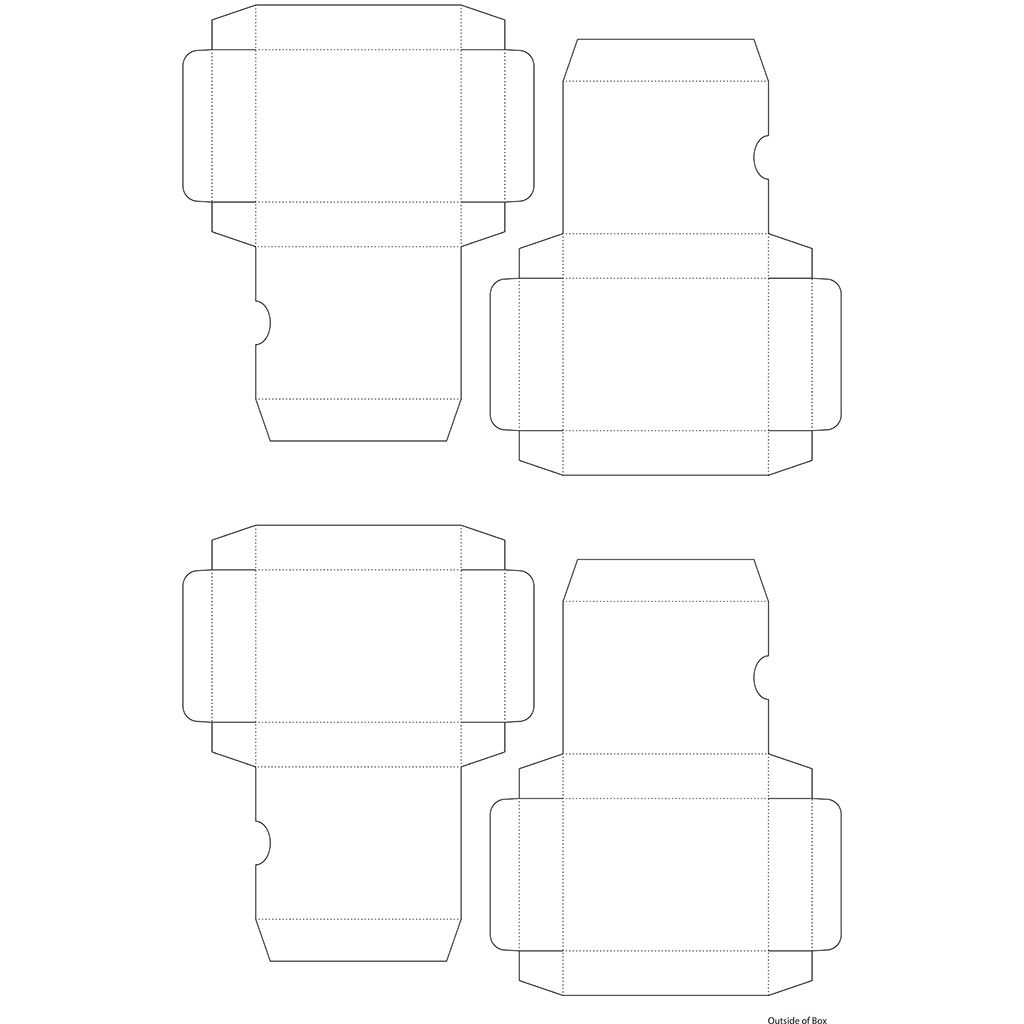

We are partnered with Count and AtlasFlex to bring you the best flexible rotary dies for your Dyna-Cut cutting system. This die creates a 3.5" x 2.5" x 0.75" playing card box size cutout. They are meant to be used with a 13" x 19" sheet, and cut in a 4-up format, meaning there are 4 hangers cut per page.

Our Dyna-Cut cutting dies are made to exceptional quality standards for an incredibly long life. They feature a premium PTFE surface treatment and hard coat that increases the longevity with abrasive materials; flash chrome and cryogenic hardening are utilized. Ejection fingers on each die make it easy to remove and change them out of your machine without ejection foam. Depending on the materials you cut, most of our dies last for between 300,000 and 500,000 impressions.

Specifications

Item #05CMDPCB3525
ManufacturerAtlasFlex (Partnered with Count)
Manufacturer Item #DC-AD606366-1
Cut ShapePlaying Card Box
Cut Size2.5" x 3.5" x 0.75"
Sheet Size13" x 19"
Cuts per Die4-Up
QuantityEach

Description

We are partnered with Count and AtlasFlex to bring you the best flexible rotary dies for your Dyna-Cut cutting system. They are made to exceptional quality standards for an incredibly long life by our manufacturing plant with over 40 years of experience in the flexible die production industry. All of our Dyna-Cut dies feature a premium PTFE surface treatment and hard coat that increase the longevity with abrasive materials; flash chrome and cryogenic hardening are utilized. Ejection fingers on each die make it easy to remove and change them out of your machine without ejection foam. Depending on the materials you cut, most of our dies last for between 300,000 and 500,000 impressions.



These Dyna-Cut dies are flexible, wrapping around a mandrel for rotation-style cutting. They come in a huge selection of common cut sizes, and customized dies can also be produced for your unique needs. The Dyna-Cut dies are incredibly easy to change out by just peeling off the installed die, and then rolling on the next one -- it can be done in just about a minute or two. Rotary die cutting provides print service centers with immense flexibility in the design of finished pieces which can be specifically tailored to your client’s request. From start to finish, the Dyna-Cut makes the entire paper cutting process simple, affordable, versatile, and profitable.



Standard Dies Available:

  • 5" x 7", Ticket Style Invitation, 12" x 18" sheet size - 4 up
  • 5" x 7", Scalloped Invitation, 12" x 18" sheet size - 4 up
  • 3" Round,11 x 17 sheet size -12 up
  • 4.45" x 3" rectangle 11" x 17" sheet size - 8 up
  • 3.5" x 2.5", Playing Card Box, 13" x 19" sheet size - 4 up
  • 3.5" x 2.5", Playing Cards, 13" x 19" sheet size - 16 up
  • 8.25" x 3.5" Perforated Coupon Door Hanger, 13" x 19" sheet size - 6 up
  • 4.75" x 3", Oval, 11" x 17" sheet size - 8 up
  • 3.5" x 2", Business Card Square Corners, 12" x 18" sheet size - 21 up
  • 3.5" x 2", Business Card Round Corners, 12" x 18" sheet size - 21 up
  • 5" x 7", Bracket Invitation, 12" x 18" sheet size - 4 up

Specialty Dies Available:

  • 3.375" x 2.125", Horizontal ID Card, 12" x 18" sheet size -18 up
  • 3.375" x 2.125", Vertical ID Card, 12" x 18" sheet size -18 up
  • 5.5" x 5.5" Ornate Boarder Invitation 13" x 19" sheet size - 6 up
  • 5" x 7", Round Corner Invitation, 12" x 18" sheet size - 4 up
  • 5" x 7", Rectangle Invitation, 12" x 18" sheet size - 4 up
  • 4.75" x 3", Bracketl, 11" x 17" sheet size - 8 up
  • 3.5" X 2.75" Diamond 11" x 17" sheet size - 8 up
  • 3.5" X 2.75" Heart 11" x 17" sheet size - 20 up
  • 4" X 4" Coasters, 13" x 19" sheet size - 12 up
  • 7" X 4.5" Gift Card Holder, 12" x 18" sheet size - 4 up
  • 8.25" x 3" Large Opening Door Hanger-No Slit, 13" x 19" sheet size - 6 up
  • 3.25" x 1.75", Price Tag, 12" x 18" sheet size - 24 up
  • [8.25" x 3" Round Hook Door Hanger, 13" x 19" sheet size - 6 up
  • 3" X 1.5", Ticket, 12" x 18" sheet size - 30 up



Call us at (866)537-2244 for a Quote on a Custom Die

Most customized dies can be manufactured and shipped in just a couple of business days!

Videos

Dyna-Cut Rotary Cutter - The Best Automatic Rotary Die Cutting System

Transcript: Made in the USA! ✅ This premium-quality paper cutter achieves unmatched precision and speed. It has a unique die system that means your print shop can achieve a huge variety of cut job applications -- everything from business cards to brochures, to door hangers, to boxes, and so much more! Professional print finishing is easy to achieve with the Dyna-Cut rotary die cutter from Count Machinery and Binding101.

Key Features:
- Speeds up to 6,000 Cycles per hour
- Dies are easy to chan...
Read More
Made in the USA! ✅ This premium-quality paper cutter achieves unmatched precision and speed. It has a unique die system that means your print shop can achieve a huge variety of cut job applications -- everything from business cards to brochures, to door hangers, to boxes, and so much more! Professional print finishing is easy to achieve with the Dyna-Cut rotary die cutter from Count Machinery and Binding101.

Key Features:
- Speeds up to 6,000 Cycles per hour
- Dies are easy to change for quick job switching
- Easy-to-use touch screen panel
- Automatic cutting -- set it and walk away
- Huge 8" feeder capacity
- Air suction input and conveyor exit

Product Reviews

Write Your Own Review
You're reviewing:Standard Dyna-Cut Flexible Rotary Dies (Many Options)
Your Rating

Frequent Asked Questions

Q
How thick of substrate can be cut with the Dyna-Cut?
Asked by Dan
A
We have successfully tested up to 435 GSM or 21pt. Additionally, higher GSM is possible but will need to be tested on an application-by-application basis.
Answer by Binding101
Q
Do I need to print a registration mark on every sheet?
Asked by Addy
A
Yes, the registration mark is used to stage and time the precise moment when the paper enters into the cutting cylinders.
Answer by Binding101
Q
How does the alignment of the printed sheets work before entering cutting cylinders?
Asked by Kate
A
Printed sheets are aligned through adjustments made by the operator through the PLC as well as manual adjustments. Types of adjustments include Left/Right Margin, Skew, and Vertical Cut Adjust.
Answer by Binding101
