Count Dyna-Cut RD435 Rotary Die Cutter System
69995 NewCondition InStock

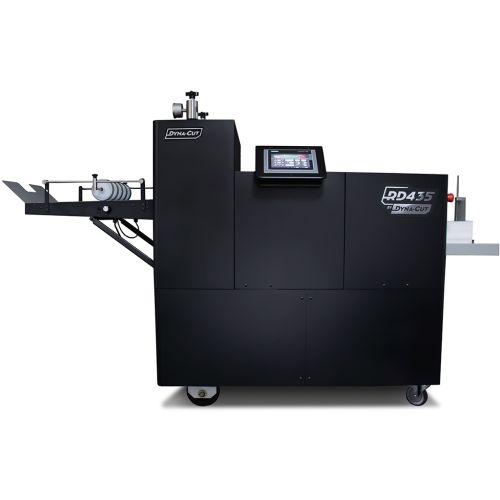

Count Dyna-Cut RD435 Rotary Die Cutter System

Item #: 04CMDYNACUT
Brand: Count
FAQ: 6 Questions, 6 Answers
  • Perfect for almost any perforate, crease, or kiss-cut job
  • Flexible dies perform multiple cuts, slits, slit-scores, kiss cuts, perforations, and window punches
  • High speed output of up to 6,000 cycles per hour
  • Fast and efficient die changes
  • 180 Day Manufacturer Warranty
  • 85+ Years Experience
  • Oversize / Truck shipping
  • Brand New

$69,995.00

Buy Now, Pay Later
Starting at $6,475/monthLearn More >

SWIPE FOR MORE IMAGES
  • 0
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
video

Overview

Achieve unmatched quality and versatility for your professional print shop using the RD435 by Dyna-Cut cutter. This rotary die cutter is manufactured in the USA by Count Machinery and lets you cut a huge variety of paper sizes and formats. It is an automated industrial cutter that is easily controlled from the touch-screen panel and offers easy die change with the flexible dies makes switching between jobs a snap. You can browse the variety of standard dies and specialty dies, and even order a custom die if you don't see what you need. All of these (and more) features combine to make the Dyna-Cut the best automatic rotary cutting system on the market today.

Specifications

Item # 04CMDYNACUT
Manufacturer Count
Manufacturer Item # DYNA-CUT
Touch Screen Yes
Speed 6,000 Cycles / Hour
Vaccuum System Top-Feed
Feeder Capacity 8" Stack
Scrap Separator Yes
Delivery Conveyor System Motorized Belt
Rollers Urethane
Registration Mark Sensor Yes
Reg Board Alignment Yes
In-Line Scrap Separator Yes
Paper Weight Range 106 to 400 gsm
Minimum Sheet Size 11" L x 8.25" W
Maximum Sheet Size 20" L x 14" W
Double Sheet Detector Yes
Dimensions 105" L x 29.25" W x 55.25" H
Voltage 110v or 220v
Motor Dual Cylinder & Feeder
Shipment Method Freight Truck Required (Click Here for Details)
Country of Manufacture Made in the USA
Manufacturer's Warranty 180 Day Manufacturer's Warranty (Extended Warranties Available)

Description

We're living in a world where consumers want instant gratification, without sacrificing quality. With the RD435 Dyna-Cut from Count, your print shop can more efficiently meet this demand for fast, perfectly finished paper products.



This unique cutter uses a rotary die system to produce automated, continuous-load cutting. The dies are flexible, wrapping around a mandrel for rotation-style cutting. They come in a huge selection of common cut sizes, and customized dies can also be produced for your unique needs. The Dyna-Cut RD435 dies are incredibly easy to change out by just peeling off the installed die, and then rolling on the next one -- it can be done in just about a minute or two. Rotary die cutting provides print service centers with immense flexibility in the design of finished pieces which can be specifically tailored to your client’s request.



The automation of this system makes it incredibly efficient to use, producing as many as 6,000 cycles per hour. This speed combines with the 8-inch thick stack capacity to make an easy to set it and forget it -- just set up the machine using the handy touch screen control panel, press start, and move on to a different task. Entry into the system from the feeder is done via a top-feed vacuum system, which means it can easily be used with all kinds of paper stocks up to 400 gsm. The exit tray is on a conveyor to create a neat stack, while also automatically separating the scrap and discarding it to the waste bin below the exit tray. No more peeling off mis-cut edges, or sorting through finished product and scraps.



The versatility of the RD435 is probably the most notable feature; the one that customers continuously rave about. With the various dies available, you can produce a huge variety of digital print and packaging products, including (but not limited to) custom-shaped brochures, direct mailers, invitations, retail packages and boxes, labels, greeting cards, playing cards, tear-off vouchers, tickets, stickers, party favors, doorknob hangers, gift card holders, and more. It can handle starting sheet sizes as small as 8.25" W x 11" H and up pages as large as 14" W x 20" H. These dies are made from a premium PTFE surface treatment with a hard coat flash chrome, cryogenic hardening that increases the longevity of the die with abrasive materials. Ejection fingers keep materials from sticking to the die cavity and eliminate the need for ejection foam.



Plus, the Dyna-Cut rotary cutting system comes with the Count Machinery 3x3 warranty, which is considered the best warranty in the industry for this class of product, offering 3-year protection against mechanical and electrical failure. From start to finish, the Dyna-Cut makes the entire paper cutting process simple, affordable, versatile, and profitable.



Standard Dyna-Cut Dies Available  •  Stocked

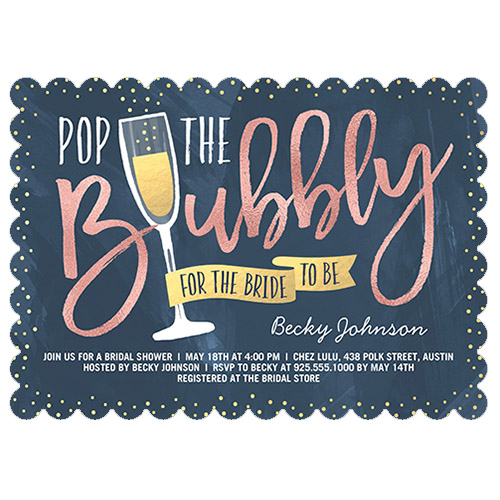

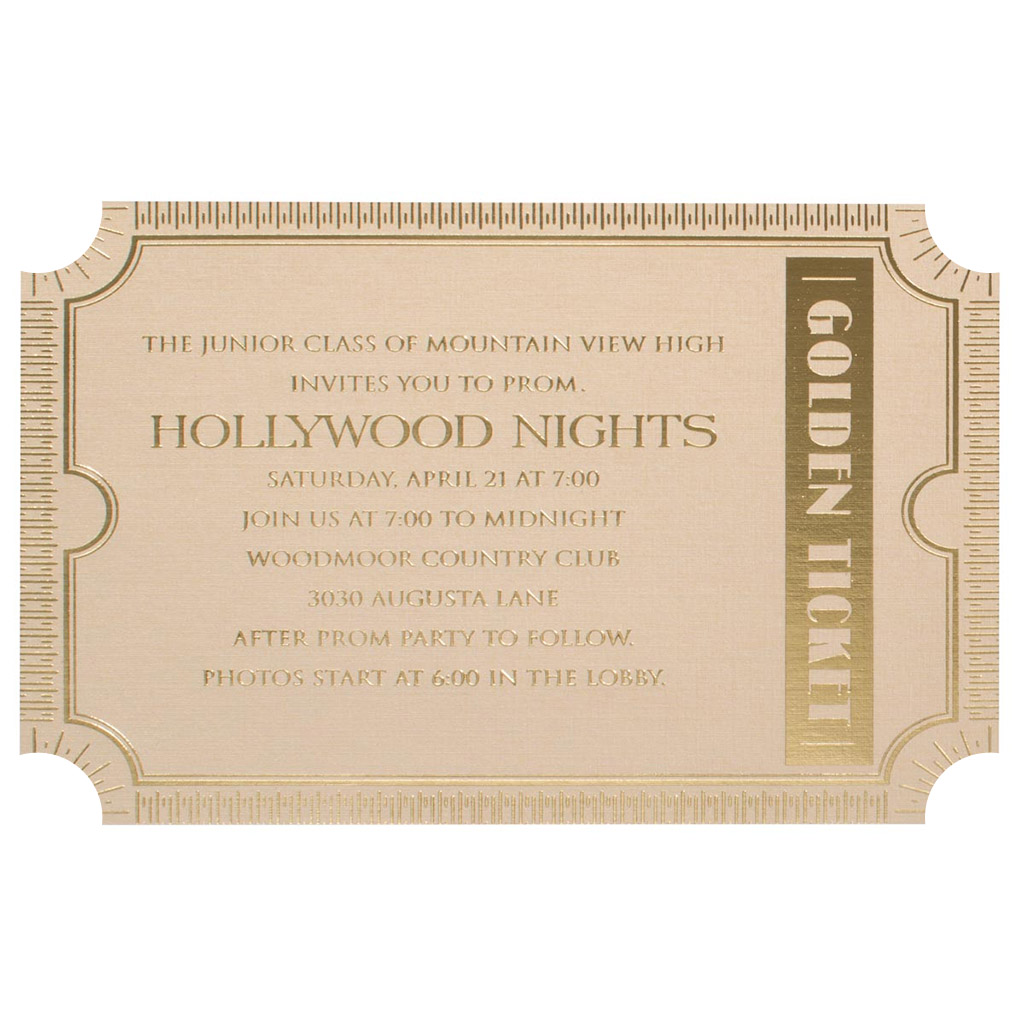

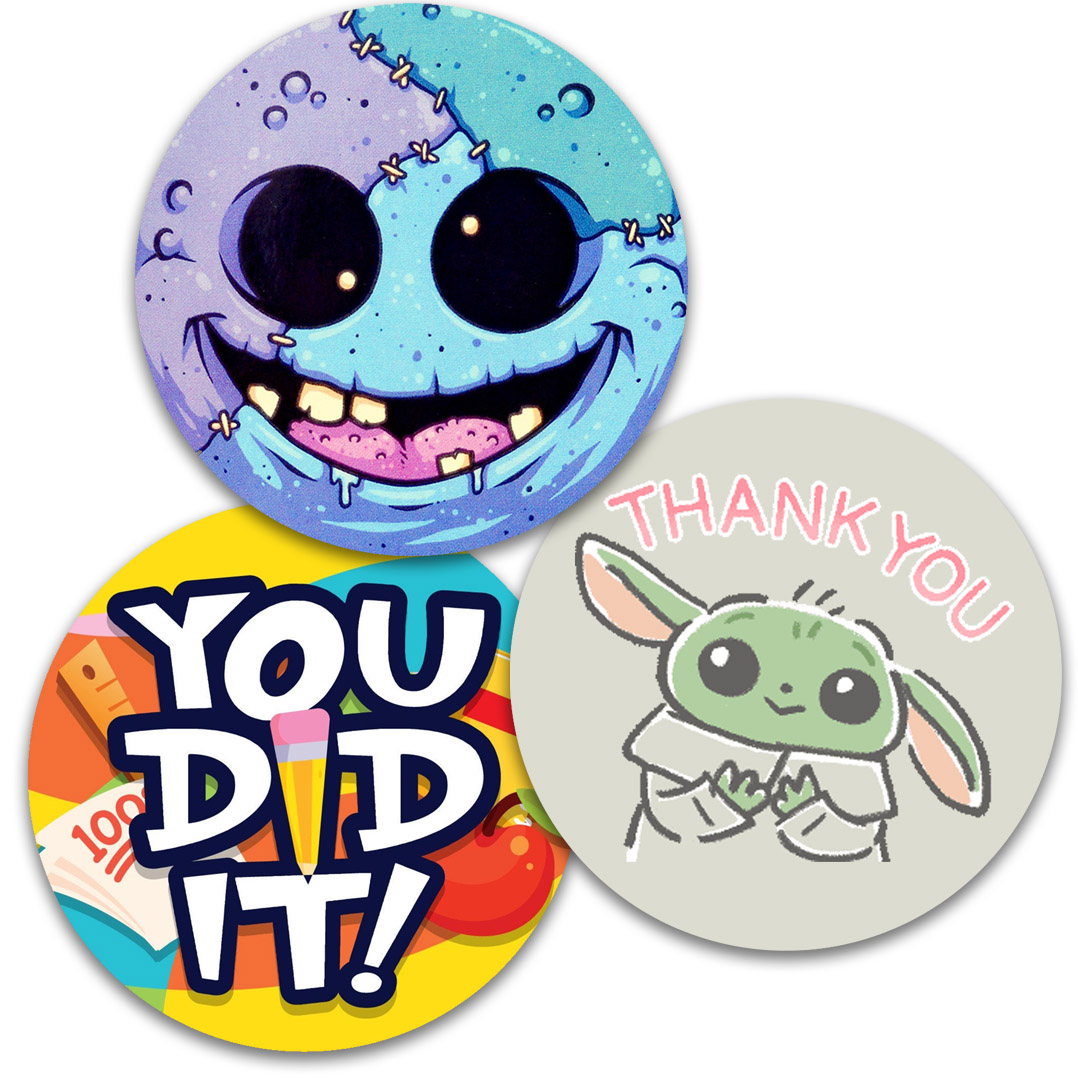

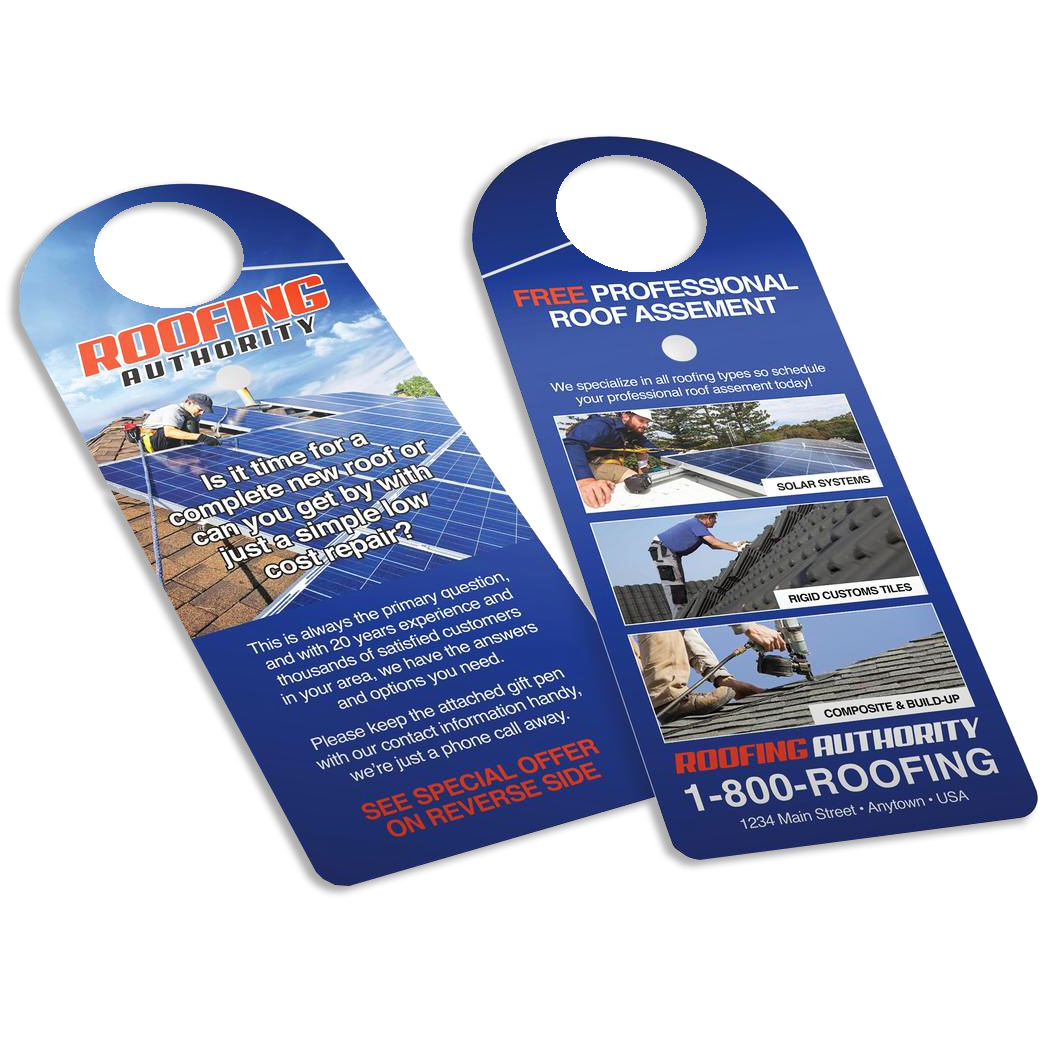

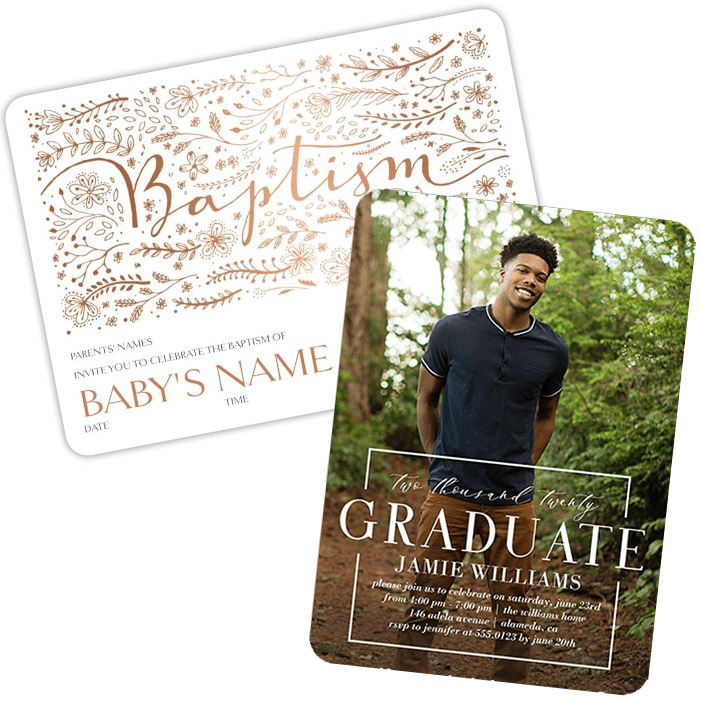

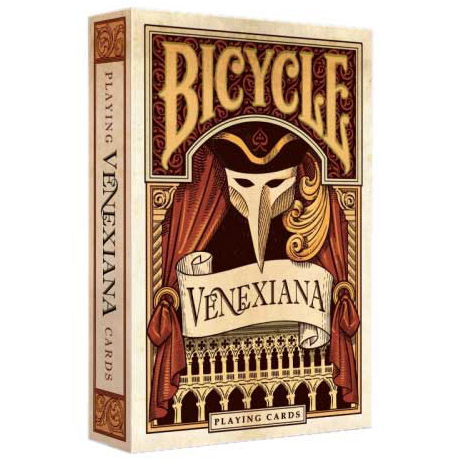

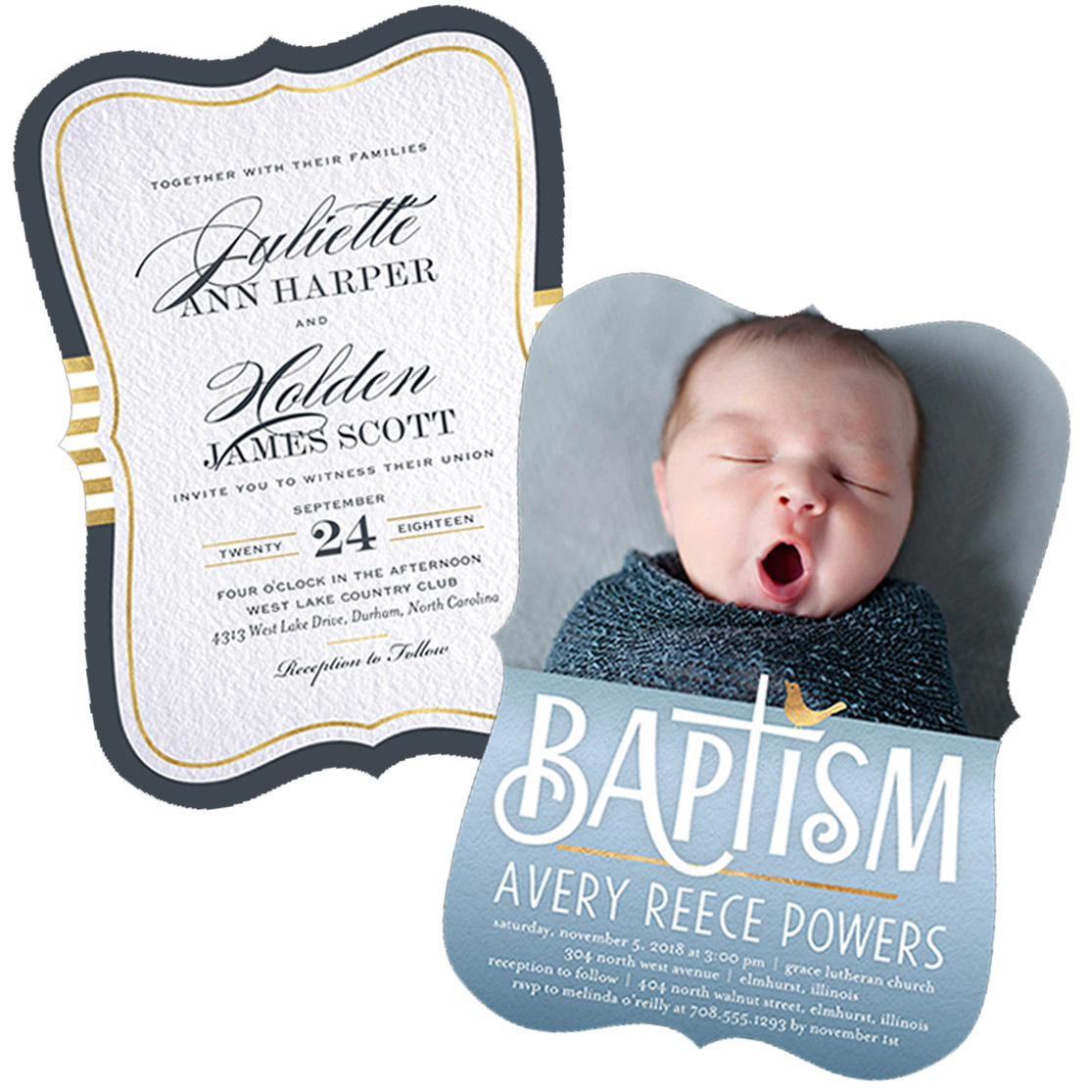

With our collection of standard, stocking Dyna-Cut flexible rotary dies, you can achieve a huge variety of finished cuts to meet the demand of your versatile customers. Choose from the most common dies, such as business cards and invitations, to sticker and label kiss-cut dies, to door hangers, and even playing cards and card boxes. Don't see what you need? Scroll down to see the various special-order options below.



Specialty Dies  •  Made-to-Order/Custom

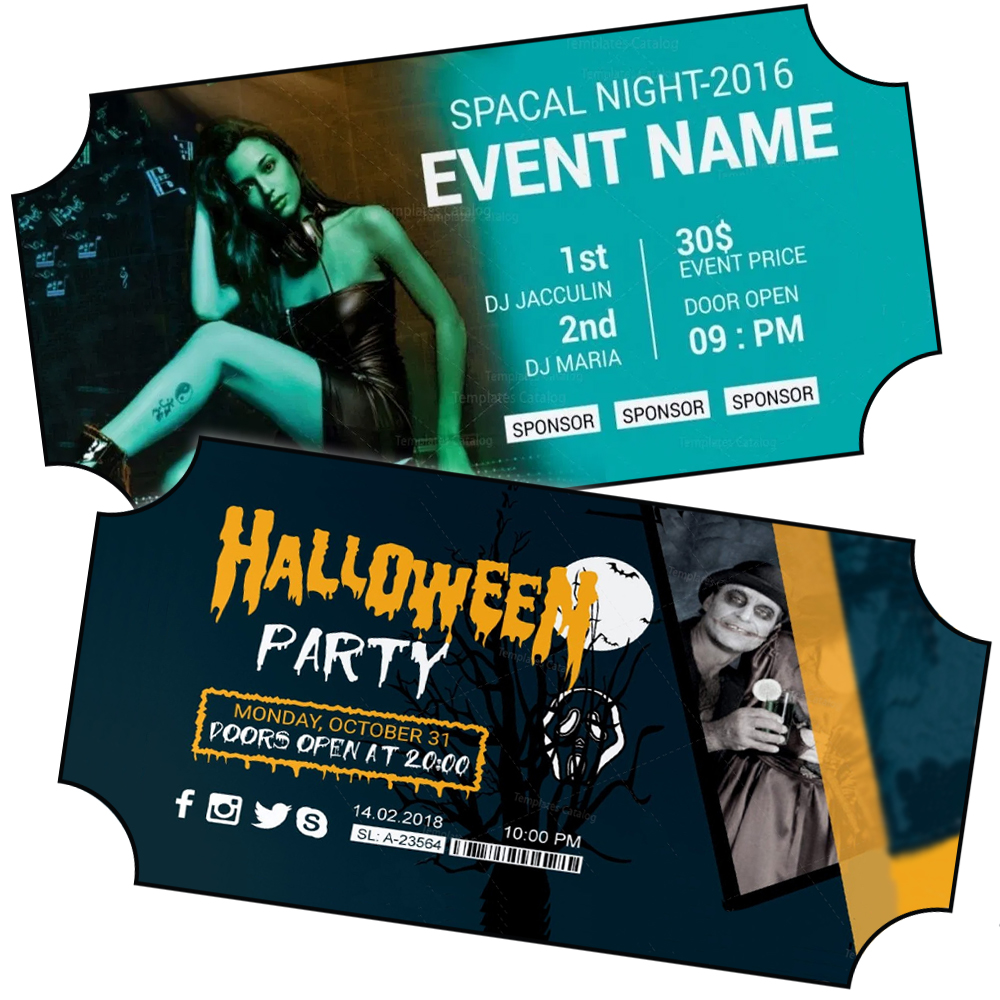

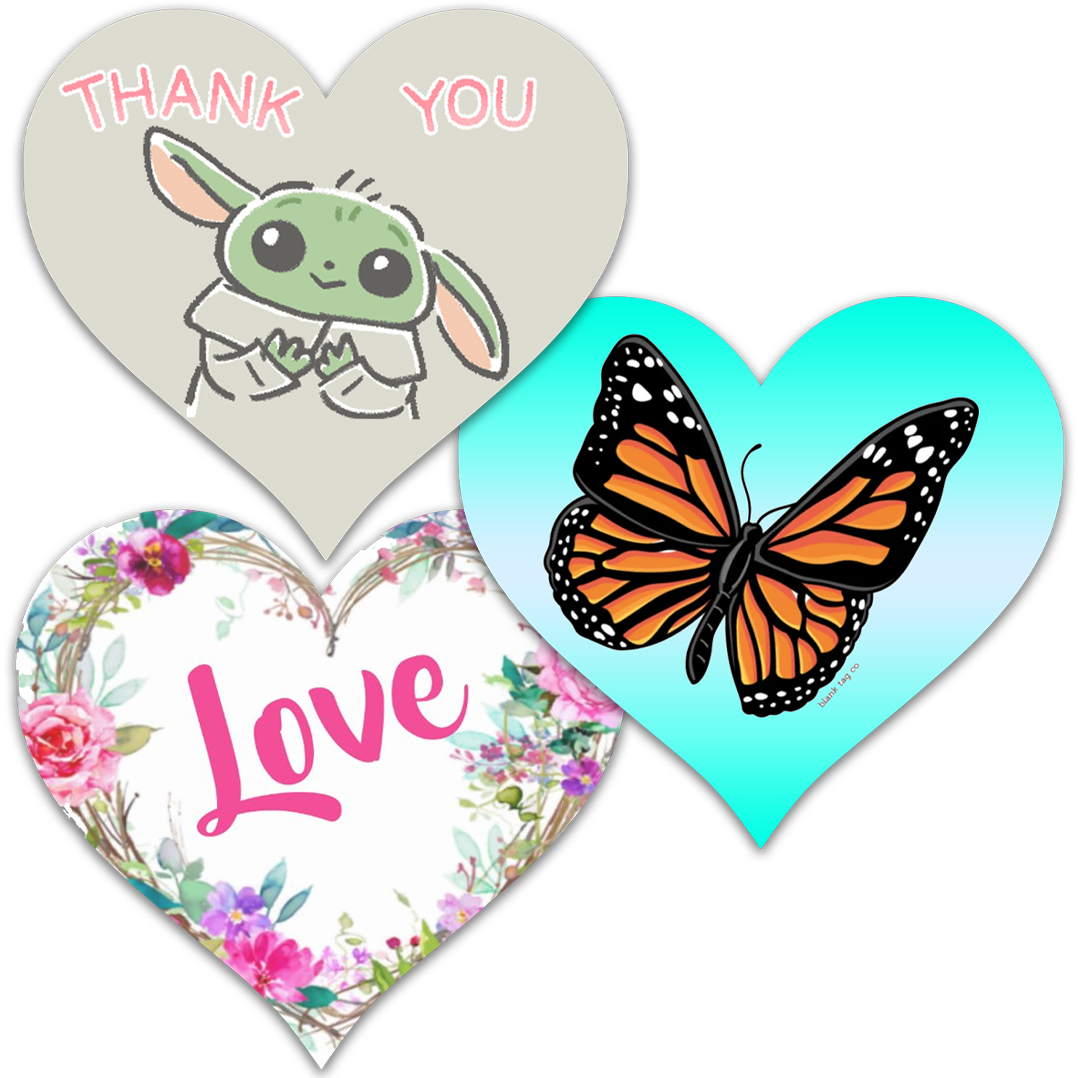

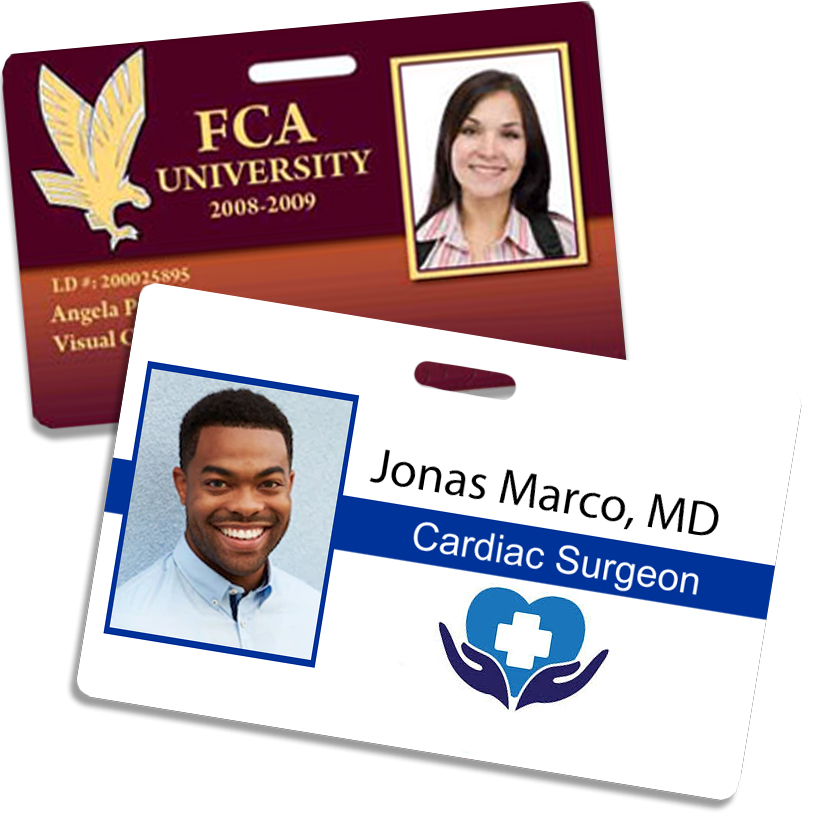

If the standard stocking dies aren't what you're looking for, we still offer a variety of slightly less popular options that are still common enough to be quick-order, but not quite common enough to stock. These flexible rotary dies are usually available to ship within just a couple of business days and include a variety of choices, from invitations, identification cards, stickers and labels, door hangers, event tickets, price tags, gift card holders, and coasters. Browse the various specialty Dyna-Cut dies below and click them to learn more and add them to your shopping cart. Custom dies are not returnable, all sales are final.



Need Something Different? Call us at (866)537-2244 for a Quote on a Custom Die

Most customized dies can be manufactured and shipped in just a couple of business days!
We can manufacture nearly any custom shape, design, cut, and die style for your individual needs.

Click to Live Chat

Videos

Overview of the DynaCut RD435 Rotary Die Cutter

Transcript: ✆ Call for the best price - (866)537-2244
✉ Request a formal quote - Email info@buy101.com

Achieve unmatched quality and versatility for your professional print shop using the new and improved RD435 by Dyna-Cut cutter.

☑ Perfect for almost any perforate, crease, or kiss-cut job
☑ Flexible dies perform multiple cuts, slits, slit-scores, kiss cuts, perforations, and window punches
☑ High-speed output of up to 6,000 cycles per hour
☑ Fast and efficient die changes


The Cou...
Read More
✆ Call for the best price - (866)537-2244
✉ Request a formal quote - Email info@buy101.com

Achieve unmatched quality and versatility for your professional print shop using the new and improved RD435 by Dyna-Cut cutter.

☑ Perfect for almost any perforate, crease, or kiss-cut job
☑ Flexible dies perform multiple cuts, slits, slit-scores, kiss cuts, perforations, and window punches
☑ High-speed output of up to 6,000 cycles per hour
☑ Fast and efficient die changes


The Count Dyna-Cut RD435 Rotary Die Cutter System is made in the USA. It is an automated industrial cutter that is easily controlled from the touch-screen panel and offers easy die change with the flexible dies makes switching between jobs a snap.

The automation of this system makes it incredibly efficient to use, producing as many as 6,000 cycles per hour. This speed combines with the 8-inch thick stack capacity to make an easy to set it and forget it.

The versatility of the RD435 is probably the most notable feature; the one that customers continuously rave about. With the various dies available, you can produce a huge variety of digital print and packaging products.

All of these (and more) features combine to make the Dyna-Cut the best automatic rotary cutting system on the market today.

✆ Call (866)537-2244 now for the best price!

Product Reviews

Write Your Own Review
You're reviewing:Count Dyna-Cut RD435 Rotary Die Cutter System
Your Rating

Frequent Asked Questions

Q
What gutter should I be using?
Asked by Jenn
A
We recommend a gutter cut of 0.25" between each piece; this will ensure stripping is accomplished properly.
Answer by Binding101
Q
What should I set the pressure gauges to?
Asked by Demmi
A
This will depend on your application and the die itself. The pressure gauges should be set just enough so they produce a clean cut, and no tighter. If there is excess pressure used it will wear down the die faster than normal.
Answer by Binding101
Q
Do we have to print registration marks on the pages?
Asked by Renata
A
Yes, a registration mark is needed on each sheet. This is used to stage and time the precise moment when the paper enters the cutting cylinder.
Answer by Binding101
Q
How does it align the pages before being cut?
Asked by Joseph
A
Printed sheets in the Dyna-Cut are aligned through adjustments made by the operator through the PLC, as well as manual adjustments. The types of adjustments you can do include Left/Right Margin, Skew, and Vertical Cut Adjust.

Answer by Binding101
Q
How long does it take to get a custom-made die?
Asked by Malcom
A
The time frame to get a custom-made die will depend on the production schedule at the time of the order, however, most dies are able to be manufactured in just a couple of business days. Call us at (866)537-2244 for a custom die quote.
Answer by Binding101
Q
Other than paper, what kind of materials can the Dyna-Cut handle?
Asked by Shruthi
A
Papers, synthetics, laminated stocks, kiss cut shapes/stickers, vinyls, and more. If you are using a specialty material, please let us know before you purchase a die, as we may need to personalize the die to meet your specific material demands.
Answer by Binding101
