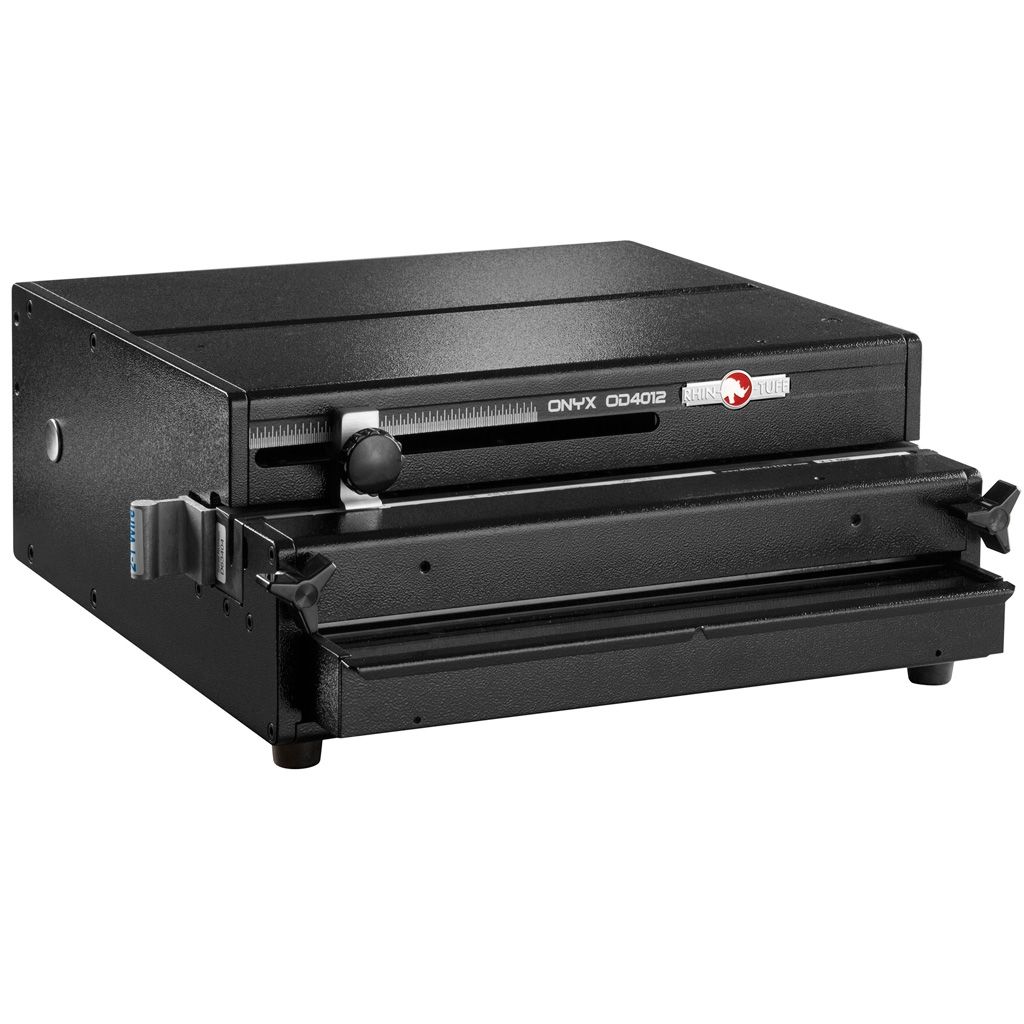

Rhin-O-Tuff ONYX OD4012 Interchangeable Electric Binding Punch and Accessories
106
2677
19
Rhin-O-Tuff ONYX OD4012 Interchangeable Electric Binding Punch and Accessories
Brand:
Rhin-O-Tuff
- Manual and auto-reversing functions.
- E-Z Change Die System.
- Up to 25 Cycles per minute.
- Pre-set paper stop.
- Free Shipping $150+
Starting At:
$2,677.00
Choose Below
SWIPE FOR MORE IMAGES
- 0
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
Overview
Perfect for print shops and corporate offices with medium to high volume daily binding needs, the Rhin-O-Tuff® ONYX OD4012 is a heavy duty book binding punch that has interchangeable dies, allowing for a huge variety of binding method opportunities including Wire-O, spiral binding plastic coil, plastic comb, 3-hole and many more. The 11" binding edge is perfect for offices that handle letter sized sheets often. It can power through up to 30 sheets at a time* at a speed up to 25 punches per minute, depending on the operator. You can choose the die or dies you would like initially, and expand your possibilities in the future with additional dies. Die change is extremely fast and easy. Foot pedal operation leaves both of the operator's hands free to to work with the documents. Ready to offer your customers more? Buy the Rhin-O-Tuff ONYX OD4012 interchangeable electric binding punch online today.
Specifications
| Item # | 04OD4012-GRP |
|---|---|
| Manufacturer | Performance Design, LLC |
| Brand Name | Rhin-O-Tuff |
| Suggested User | Large Office |
| Binding Style | Multiple Binding Styles |
| Operation: Punching | Electric |
| Capacity: Punching | 28 - 31 Sheets* |
| Compatible Supplies & Accessories | Rhin-O-Tuff ONYX OD4012 Punch Dies Versa Switch for HD7000, HD6500, OD4012 Rhin-O-Tuff ONYX HD4170 Electric Rhin-O-Roll Coil Inserter Module Rhin-O-Tuff ONYX HD8000 Heavy Duty Wire Closer Rhin-O-Tuff ONYX HD4470 14" Manual Plastic Comb Opener |
| Power Voltage | 115 V |
| Speed | 25 Cycles Per Minute |
| Dimensions | 21 ¾" W x 19 ¾" D x 9" H |
| Certifications | CE, UL |
| Manufacturer's Warranty | 6 Year Manufacturer's Warranty |
| Country of Manufacture | Made in the USA |
| Punch & Bind Capability | No [Punching Only] |
| Maximum Binding Edge | 11" [With Open-Ended Punch for Edges up to 22"] |
| Open Ended Punch | Yes |
| Throat Depth | Not Adjustable |
| Disengageable Pins | Yes, All |
| Product Weight (lbs) | 40 |
| Shipping Weight (lbs) | 46 |
Description
The Rhin-O-Tuff ONYX OD4012 Interchangeable Electric Binding Punch is capable of punching a variety of hole patterns for multiple binding methods including plastic comb binding, spiral coil binding, wire binding, and more. Each interchangeable die has a unique punching pattern and fully disengageable pins for punching standard and unusual sheet sizes. Inserting and removing the dies is so quick and easy that switching between hole patterns takes only seconds.
The ONXY OD4012 has an 11" open ended throat. Punching binding edges of 11" or smaller can be done in one press of the foot pedal. The open ended throat allows for punching longer binding edges in only two lifts. This punch has both an Auto Reverse Feature as well as a manual reverse feature to reduce jamming of the punch. The robust motor helps power through up to 30 sheets of 20 lb. paper at once. The actual capacity rating depends on the die's specific hole pattern.
Rhin-O-Tuff has been a leader in producing reliable and durable binding equipment for decades. They made no exceptions with the OD4012 and back this machine with a 6 year manufacturer's warranty. Other Rhin-O-Tuff models, made for higher volume usage are available.
Features
- Manual and auto-reversing functions
- E-Z Change Die System
- Up to 25 Cycles per minute
- Pre-set paper stop
- 11" open-ended punch throat allows for wider applications
- All punch pins disengageable, perfect for unusual paper sizes
- Standard foot-pedal operation. Optional versa switch (hand push button) available
- Smooth, quiet and powerful performance on-demand.
- Large capacity U-View chip tray
- All metal construction for durability
- Large capacity U-View chip tray
Die Capacities
| Die | Sheet Capacity* |
|---|---|
| Wire-O (Round Holes) | 28 Sheets |
| Wire-O (Square Holes) | 28 Sheets |
| Spiral Coil | 28 Sheets |
| Comb | 31 Sheets |
| Velo Bind | 31 Sheets |
| 3-Hole Binder | 31 Sheets |
*Sheet capacity is an approximation based on standard 20 lb. bond copy paper. The precise capacities will vary depending on the die punch pattern, paper stock used, and other factors.
