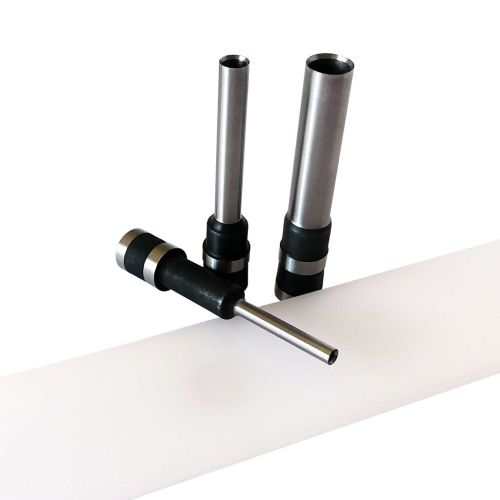

1/4" (6.35mm) Drill Bit for FP-1XLS Paper Hole Punch Item#05FPPLS14
20.5 NewCondition OutOfStock

1/4" (6.35mm) Drill Bit for FP-1XLS Paper Hole Punch Item#05FPPLS14

Item #: 05FPPLS14
Rating:
100%
  • Designed for the FP-1XLS Paper Hole Punch Machine
  • Size (Diameter): 1/4", 3/16", 3/8"or 5/16" hole
  • Paper Drills Capacity: 1"
  • Quantity: 1
Additional Sizes Below
Out of stock
SWIPE FOR MORE IMAGES
  • 0
  • 1
  • 2
  • 3
video

Overview

Buy drill bits and punch pads for your FP-1XLS paper drill at Binding101. We offer all sizes of drilling bits available for this high capacity hole punch, as well as plastic pads and other accessories you can use with your Filepecker I(X) LS machine. The options to choose 1/4", 3/16", 3/8", or 5/16" hole diameters let you choose the hole size you need for your specific application. So whether you are drilling 3-holes for ring binders, single holes for price tags, or anything in-between, you can find the perfect paper punch bit for your needs.
To change the FP-1XLS drill bit, simply use the allen wrench to loosen the attached bit, remove it, replace it with the new bit, and tighten it back up again with that allen wrench. That's it! Easy changeover from size to size, or replacing worn out drill bits is so fast and easy, you can do it in just a few seconds. To adjust the height of the drill bit, simply turn the stroke adjuster on the top of the machine (not the handle) either to the right or the left. For optimum paper drilling, the bit should penetrate the plastic pad 0.5mm when pressed down. Tip: remember to rotate the plastic pad to ensure perfect hole punching for longer, as well as get double use out of it, so you can replace it less often. Drill bits are sold individually, and the punch pads (also called plastic pads or drill blocks) are sold in a pack of 3.

Specifications

Item #05FPPLS-GRP
ManufacturerSPC, Co. Ltd
Compatible EquipmentFP-1XLS Paper Drill Hole Punch
Capacity: Paper Drills1"
Shipping Weight (lbs)1.25

Description

How to Change the FP-1XLS Drill Bit:
   ① Use the allen wrench that was included with your machine to loosen the drill bit, and remove.
   ② Place your new drill bit on, and tighten the screw with the allen wrench. That's it! Easy changeover from size to size, or replacing worn out drill bits is so fast and easy, you can do it in just a few seconds.

How to Adjust the FP-1XLS Drill Bit Height:
You should always ensure the height of the drill bit is set properly before you begin, especially after you change out the drill bit. To adjust the height of the drill bit, thereby adjusting how deep it will punch, simple rotate the stroke adjuster on the top of the machine by twisting it right or left. The optimum drill bit height setting will create a 0.5mm depression into the plastic pad when pressed down.

Videos

Drill Bits & Punch Pads for FP-1XLS Paper Drill

Transcript: We offer all sizes of drill bits for your FP-1XLS paper drill, including 3/16, ¼, 5/16,
and 3/8" hole sizes. Buy different drill bit sizes to punch for different applications. They all have a punching capacity of a 1” thick stack of paper, which is the same as about 300 sheets, depending on the paper stock.

The plastic punch pads are used as a base for the drill bits to hit at the end of your stack. They help keep your drill bit sharp, while ensuring every page of your stack is punched clean...
Read More
We offer all sizes of drill bits for your FP-1XLS paper drill, including 3/16, ¼, 5/16,
and 3/8" hole sizes. Buy different drill bit sizes to punch for different applications. They all have a punching capacity of a 1” thick stack of paper, which is the same as about 300 sheets, depending on the paper stock.

The plastic punch pads are used as a base for the drill bits to hit at the end of your stack. They help keep your drill bit sharp, while ensuring every page of your stack is punched cleanly. The punch pad can be flipped over to double it’s life, and is easily replaced once both sides are worn.

These paper punch drill bits are sold individually, while the punch pads come in a 3-pack. Find the perfect drill bits and punch pads for your FilePecker FP-1XLS high capacity hole punch at Binding101.com.
