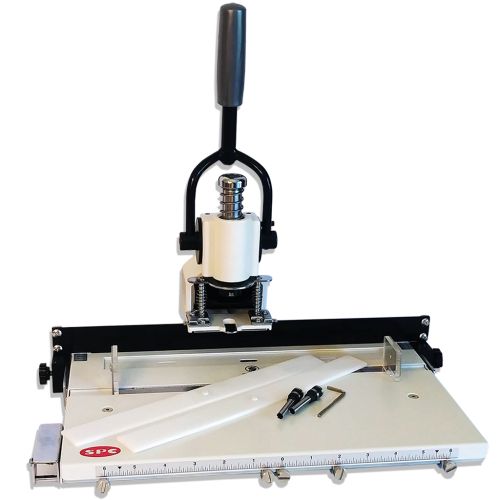

FP-1XLS Paper Drill Hole Punch (with 4 Free Accessories)
- 0
- 1
- 2
- 3
- 4
- 5
- 6
Overview
Specifications
| Item # | 04FP1XLS |
|---|---|
| Manufacturer | SPC, Co. Ltd |
| Manufacturer Part Number | PUNEFP1XLS |
| Operation | Manual |
| Included Supplies & Accessories | Two Punch Pads (1 Installed) Two 1/4" Drill Bits (1 Installed) One 3mm Allen Wrench |
| Compatible Supplies & Accessories | FP-1XLS Drill Bits & Accessories |
| Dimensions | 17 ¾" W x 12 ½" D x 8 ¼" H |
| Base Footprint | 17 ¾" W x 12 ½" D |
| Manufacturer's Warranty | 1 Year Limited [Excluding Wearables] |
| Number of Drill Holes | 1 [Single Spindle] |
| Capacity: Paper Drills | 1" |
| Distance Between Holes | 1/4" to 12" |
| Adjustable Backgauge | Yes |
| Hole Set Depth | 0" to 1 ¼" |
| Table Size | 14 ¾" W x 9 ¼" D |
| Table Height | 1 ⅝" |
| Mobile Table | Yes, Sliding Table |
| Product Weight (lbs) | 13 |
| Shipping Weight (lbs) | 15 |
| Shipping Information | Box Dimensions: 19" x 15" x 10" |
Description
If you've been looking for a paper drill to punch through thick stacks of paper and plastic materials, such as laminate, but you don't want to invest in one of the large super heavy duty machines retailing over $600, then the FP-1XLS by General Graphic is perfect for you! Also called the Filepecker I(X) LS, this premium paper punch drill punches a single hole through stacks of paper up to 1" thick, which is equal to approximately 300 sheets of paper, depending on the stock. The table that your stack of pages sites on glides from side to side and has paper stops to allow for easy punching of one, two, three, or four holes. Just set the paper stops to the spacing you want to achieve, punch the first hole by pulling down the handle, slide the table to the stop to punch the next hole, and so on. The wide table allows for a stack of paper up to 14" wide, without worry about pages falling off the ends.
Even though the FP-1XLS is fully manual (requiring no electricity), pulling the handle requires very little effort to to integrated technology within the paper drill. It is perfect for schools of all teaching levels and grades, businesses of many kinds, medical offices and hospitals, smaller print and copy shops, churches, and many other organizations.
Included for free with your purchase from Binding101 are two 1/4" paper drill bits, one of which is installed into the machine and ready-to-use, and one that is loose for you to keep on-hand. We also include two punch pad discs with your purchase, one of which is also installed.
How to Use FP-1XLS Paper Drill Hole Punch
① Set your paper stops using the guide and screws (using a flat head screwdriver) on the front of the table to determine where the holes will punch.
② Place your stack of paper on the table, press the self-centering guides around the stack, and lower the drill guide to be level with the stack.
③ Lift the silver handle on the left and move the sliding table all the way to the right (aligning the paper drill to the left side of your sheet). This disengages the stop so you can slide the table over them. Then release the handle and slide the table right until it hits the first stop.
④ Pull the drill handle to punch the hole.
⑤ Lift the silver handle on the left again and slide the table left until you get over the 1st stop, then release the handle. Continue sliding the table until you hit the 2nd stop. Repeat this step for all holes.
Key Features of the FP-1XLS Paper Drill Hole Punch
• Mobile table glides easily from left to right when you lift the silver handle on the left
• Affordable price makes it attainable for smaller offices and schools with tight budgets, but that handle a lot of paper punching
• Four popular drill bits / hole sizes are available, allowing versatility in hole size (1/4", 3/16", 3/8", 5/16")
• 4 paper stops are included, so you can punch one, two, three, or four holes on a single stack
• Simple operation requires no special training
• Requires no electricity
• Adjustable hole set depth lets you punch the holes up to 3/8" away from the edge
• Requires no electricity
• Requires no electricity
• Waste bin easy to empty and includes storage for included allen wrench
*Capacity may vary depending on paper stock and material being punched.
Videos
Overview of the FP-1XLS High Capacity Hole Punch
This high capacity hole punch will drill through up to a 1” thick stack of paper with very little effort from your user.
It features 5 paper stops that are easily adjusted with a screwdriver, so you can space out your holes as close as about ¼ inch, or as far as about 12 inches.
The hole depth is also adjustable up to 1 and ¼ inches from the paper edge.
To use, you will need a stack of paper, a drill... Read More
This high capacity hole punch will drill through up to a 1” thick stack of paper with very little effort from your user.
It features 5 paper stops that are easily adjusted with a screwdriver, so you can space out your holes as close as about ¼ inch, or as far as about 12 inches.
The hole depth is also adjustable up to 1 and ¼ inches from the paper edge.
To use, you will need a stack of paper, a drill bit in your choice of size, a 3mm Allen wrench, a punching pad, and a flathead screw driver.
Once you’ve set your paper stops to the desired hole spacing, place your stack onto the machine and close the self centering paper guides.
Lift the lever on the left, and slide the table all the way to the right. Release the handle, and slide the table until it hits the first paper stop.
Press the clamp down, and pull the handle to drill your 1st hole.
Lift the handle and slide the table until you hit the next stop, and repeat this step until your page is completely punched.
Then release the clamp to reveal your perfectly punched stack.
Drill bits are available in several sizes. To change out the drill bit, just use the allen wrench to loosen the bit until it falls out. Slide the new bit in until it hits the stop, and tighten with the allen wrench.
A convenient waste tray on the back of the machine also stores your allen wrench.
Included with your purchase from Binding101.com are two punch pads, (one of which will be installed) two ¼” drill bits (one of which will be installed), and a 3mm allen wrench.
Call the number on your screen for more information.
How to Use the FP-1XLS Paper Drill High Capacity Hole Punch
First, gather your materials, including your stack of paper, a compatible drill bit, a 3mm allen wrench, a punch pad, and a flathead screw driver.
First, install the punch pad by snapping it into the divot with the peg pointing down.
Next, install your drill bit by sliding it down into the guide, and then up into the drill head until it hits the stop. Then tighten it with the allen wrench.
Now set you paper stops for your ... Read More
First, gather your materials, including your stack of paper, a compatible drill bit, a 3mm allen wrench, a punch pad, and a flathead screw driver.
First, install the punch pad by snapping it into the divot with the peg pointing down.
Next, install your drill bit by sliding it down into the guide, and then up into the drill head until it hits the stop. Then tighten it with the allen wrench.
Now set you paper stops for your desired punch pattern and spacing using the screwdriver.
Set the hole depth using the thumb screws near the back of the machine.
Place your stack onto the table, and slide the self-centering guides against the stack.
Ensure the stack is straight against the back stop. Now press down on the paper clamp.
Next, lift the handle on the left and slide the table all the way to the right. Let go of the handle and slide the table left until it hits the first paper stop.
Pull down the punching handle to punch your first hole.
Now lift the table handle and slide it left to pass over the paper stop, and release. Then slide the table left until you hit the second stop. Repeat this step to punch all of your holes.
Now release the paper clamp, and remove your stack to reveal your perfectly punched holes.
It is as easy as that! With questions or for more information about the FP1-XLS, call the number on your screen.
How to Change the Drill Bits on the FP-1XLS Paper Drill Hole Punch
Using a 3mm allen wrench, loosen the bit from the front of the punch head until the bit falls out. Remember to always keep your hands away from the bit for safety.
Slide the new drill bit into the guide, and then up into the punch head. Once it hits the stop, use the allen wrench to tighten it into place.
It’s that easy, you’re ready to punch!
With questions or for more information about the FP1-XL... Read More
Using a 3mm allen wrench, loosen the bit from the front of the punch head until the bit falls out. Remember to always keep your hands away from the bit for safety.
Slide the new drill bit into the guide, and then up into the punch head. Once it hits the stop, use the allen wrench to tighten it into place.
It’s that easy, you’re ready to punch!
With questions or for more information about the FP1-XLS, call the number on your screen.
