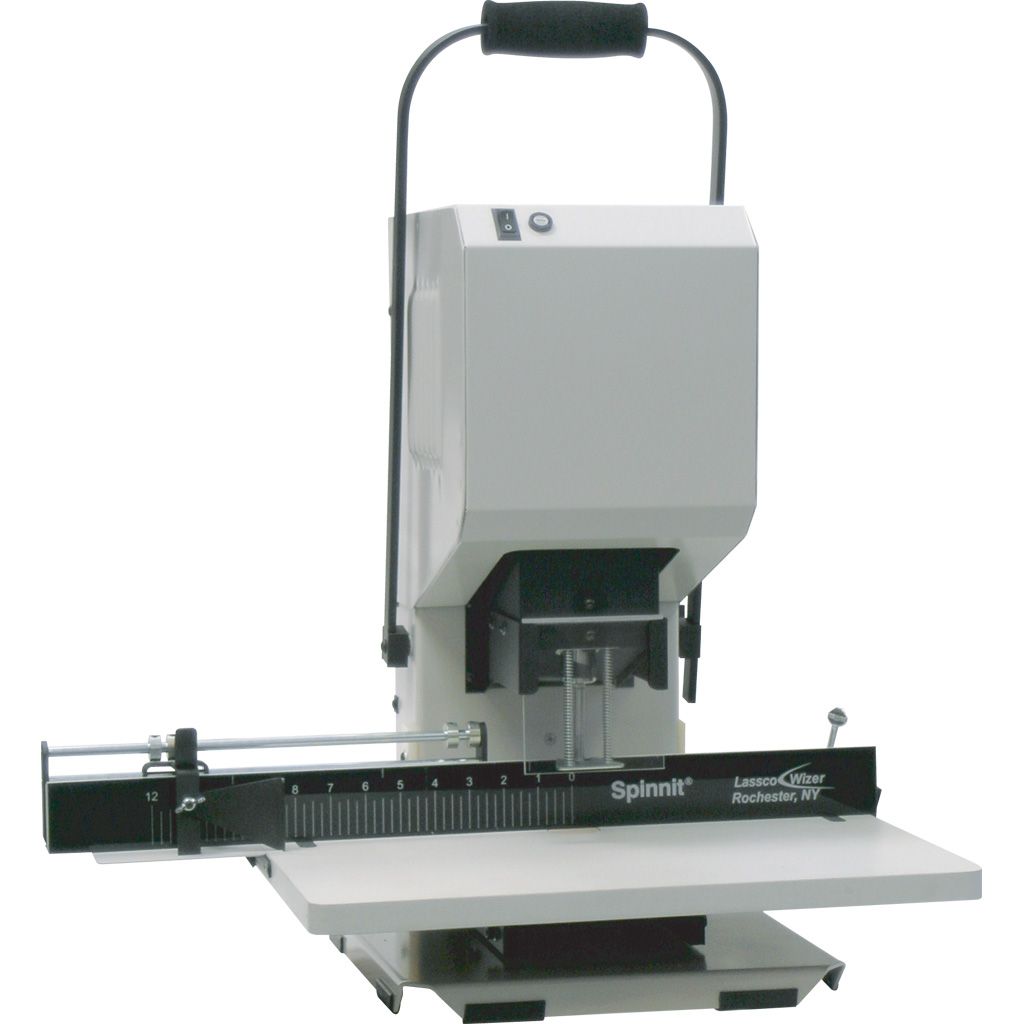

Spinnit® EBM-S Manual 1-Spindle Desktop Paper Drill

Item #: 04DRILL8

Be the first to review this product

The Lassco Spinnit® EBM-S paper drilling machine is one of the most cost-efficient drills on the market, offering up to 2" drilling capacity opportunities to companies that may not be able to afford larger models. This paper drill is great for high capacity drilling of paper, laminated materials, rubber cloth and even some plastic materials. It features a stationary table and a single spindle, so you move your stack from side to side for multi-hole drilling. The backstop features a scale for precise hole spacing, so you can completely customize your hole pattern. The small footprint makes it perfect for tabletop use, without taking up too much space. Manually operated, just position your stack on the table and then pull down on the handle. Economically priced and offering basic drilling opportunities, the EBM-S is a popular choice for schools, small print shops, small medical offices and more. When you buy the Spinnit® EBM-S manual 1-spindle desktop paper drill online, you receive one 5/16" standard, style A drill bit for free. A variety of other compatible style A 2" hollow drill bits are also available.


This item requires a truck shipment. Click here for details and exclusions.

$1,035.00

Product Description

The Lassco Wizer Spinnit® EBM-S Paper Drill is one of the most economical 2" capacity table-top drills. It features a stationary table with a back gauge slide guide system, allowing your product to slide across the table for easy multi-hole drilling. The table size is 18" x 12", and large enough for those oversize papers. The EBM-S Drill is compatible with Style A 2" Spinnit & Challenge Drill Bits which are available in diameter sizes ranging from 1/8" to 1/2", and in styles including standard, premium, Teflon and premium Teflon.

Specifications

Item # 04DRILL8
Manufacturer Lassco Wizer
Manufacturer Part Number EBM-S
Brand Name Spinnit®
Operation Manual
Operating Method Manual
Included Supplies & Accessories 5/16" Standard Style-A Drill Bit
Compatible Supplies Style A 2" Hollow Drill Bits
Power Voltage 1/4 HP, 115V
Dimensions 25" W x 23" D x 35" H
Base Footprint 12" x 13 ½"
Manufacturer's Warranty 1 Year Limited
Can Cut Materials Paper, Cooled Laminated Paper, Rubber Cloth, & More
Number of Drill Holes 1 [Single Spindle]
Drilling Capacity 2"
Adjustable Backgauge Yes
Hole Set Depth 2 ⅛" Maximum
Table Size 18" W x 12" D
Table Height 3 ½" H
Mobile Table No
Maximum Distance from Drill to Side Guide 13"
Product Weight (lbs) 62
Shipping Weight (lbs) 62
Shipping Information This item ships via Truck (Common Carrier). Free dock to dock truck shipping is available for qualifying orders. It is the responsibility of the Consignee (receiver) to remove the product from the truck. If you do not have a loading dock or any other means to lift the freight off the truck and/or you need assistance bringing the product inside of your location please call (866) 537-2244. Click here for full details.
