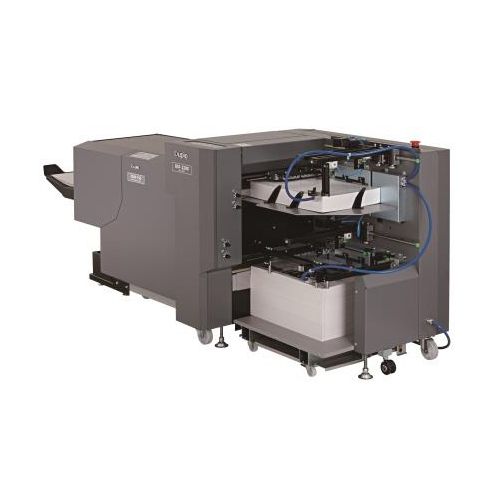

DBM-150 Sheet by Sheet Booklet Maker Configures to DFS-2200 (Discontinued)

The versatile Duplo DBM-150 Booklet Maker can be used as a stand-alone unit or can be connected to a choice of friction or suction collators and Duplo’s DSF-2200 digital printed sheet feeder. This hand-fed machine operates at a speed of up to 2,400 booklets per hour. Most of the setup of Duplo DBM-150 Booklet Maker is automatic, making it an ideal machine for producing shortrun booklets.

Features:

• Suitable for short volume demands
• Can be configured to a DSF-2200 Sheet Feeder and produce up to 1,720 booklets per hour
• Create corner, side, or saddle-stapled booklets
• Isaberg Rapid stapler and staple cartridge
• 16-job memory
• Compact and powerful
• Optional DBM-150T Trimmer

Key Applications

• Calendars
• Corporate Reports
• Catalogs
• Brochures
• Yearbooks
• Magazines

Specifications

• Model/Type: Booklet Maker DBM-150
• Machine Type: Floor type
• Paper type:
  Fine quality paper: 64 to 127.9gsm
  Art/Coated paper: 104.7 to 127.9gsm
  Cover sheet: fine quality paper,art/coated paper within 300 gsm
• Paper Size:
  Saddle stitching/Length: 210 to 460 mm
  Width: 120 to 320 mm
  Side stitching: B5 LEF, A4 LEF
  Corner stitching: A4 LEF

• Number of stitch:0 to 2
• Maximum processing speed:
  A4 - 81.4gsm, 10 sheets: 2,400sets/h
• The maximum thickness:
  Fine quality paper: 2 to 25 sheets,2.5mm
  Art/coated paper: 2 to 20 sheets,2.0mm

• Ratings: 120V-240V, 50/60Hz, 2.2A
• Dimensions: 1,010(W)×560(D)×710(H)mm
• Weight:85kg
