Duplo DFS-2200 Sheet Feeder for DBM-150 Bookletmaker (Discontinued)
26482.59 NewCondition OutOfStock

Duplo DFS-2200 Sheet Feeder for DBM-150 Bookletmaker (Discontinued)

We're sorry, but we no longer sell this item.

Below are a few alternative options that may be a great fit for your needs.

If not, please call us at (866) 537-2244 for personalized recommendations.

Item #: 04DUPDSF2200-DISCO
Brand: Duplo
  • Suitable for short volume demands
  • Belt suction feeding with front and side air separation
  • Built-in ultrasonic double feed detection and anti-static device for superior accuracy and flexibility to process wide range of stocks and printed media
  • 16-job memory
Call Us
Even though we no longer offer this item, we have a full catalog of products to suit your needs!
Please call us at (866) 537-2244 to find the perfect solution.
SWIPE FOR MORE IMAGES
  • 0
  • 1

Overview

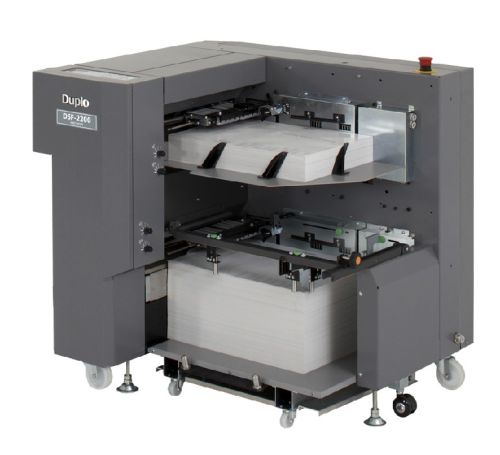

The Duplo DFS-2200 Sheet Feeder is the perfect companion of your DBM-150 Bookletmaker in producing short and medium-run booklets. Feeding up to 200 sheets per minute, the DSF-2200 is the perfect machine for feeding both digital and offset printed documents. It utilizes the Duplo’s patented fan technology to provide a constant and steady supply of air and suction. Together with its 8-belt suction feed system, front and side air separation and Air Management System, this compact but powerful feeder delivers exceptional feeding for a wide range of paper stocks and weights up to 300 gsm.

Specifications

Item # 04DUPDSF2200-DISCO
Manufacturer Duplo
Brand Name Duplo
Manufacturer Part Number DSF 2200
Binding Style Booklet Making
Capacity* 200 Sheets
Power Voltage AC 120 V 60 Hz, AC 220 to 240 V 50/60 Hz
Speed 200 sheets per minute
Dimensions 920mm W × 750mm D x 843.5mm H
Product Weight (lbs) 254
Shipping Weight (lbs) 270

Description

The Duplo DFS-2200 Sheet Feeder is the perfect companion of your DBM-150 Bookletmaker in producing short and medium-run booklets. Feeding up to 200 sheets per minute, the DSF-2200 is the perfect machine for feeding both digital and offset printed documents. It utilizes the Duplo’s patented fan technology to provide a constant and steady supply of air and suction. Together with its 8-belt suction feed system, front and side air separation and Air Management System, this compact but powerful feeder delivers exceptional feeding for a wide range of paper stocks and weights up to 300 gsm. The DSF-2200 can process the smallest sheet size of 4.13" x 7.87" up to 14" x 20", or 9.05" x 24" using the optional Extension Tray Kit to process the increasingly popular letter landscape application.

Each bin of the DSF-2200 is equipped with an ultrasonic sensor for feeding digitally printed documents with heavy ink coverage. Using sound waves to detect air gaps between two sheets, ultrasonic sensors are not affected by variations in ink, toner, color or paper weight and therefore, eliminate false feed errors caused by these variables.

For optimum effciency, the upper bin has a 2.56" loading capacity while the lower bin has a 7.87" loading capacity. Both bins can be used to feed the cover, content or sets with self covers and can feed a variety of paper types and weights up to 300 gsm with ease and precision.

Process documents containing variable sheet counts using the built-in End Mark Reader or optional barcode reader. Utilize 1D or 2D barcodes to allow the optional barcode reader to check the set ID, page sequence and total sheet count of each set to ensure that sensitive and personalized information is processed with complete integrity and accuracy.

With the PC Controller, operators of any skill level can easily program and manage the settings and adjustments of the entire system from a single computer. Using the hard drive memory of the PC, you can store a large number of jobs which can later be recalled to quickly and easily set up the system.

Features:

  • Suitable for short volume demands
  • Belt suction feeding with front and side air separation
  • Built-in ultrasonic double feed detection and anti-static device for superior accuracy and flexibility to process wide range of stocks and printed media
  • 16-job memory
  • Compact and powerful
  • Feed tray selection for better tray optimization and feed flexibility
  • Processes up to 200 sheets (up to 300 gsm maximum paper weight) per minute depending on connected devices
  • Barcode Reader option allows for variable data processing and set integrity checking for sensitive information
  • Maximum 14” x 20” paper size or 9.05” x 24” with optional Extention Tray Kit
  • Optional PC Controller

Key Applications

  • Calendars
  • Corporate Reports
  • Catalogs
  • Brochures
  • Yearbooks
  • Magazines

Specifications

  • Model/Type: Sheet Feeder DSF-2200
  • Machine Type: Floor type Sheet Feeder
  • Maximum paper loading volume:
    Tray A (Upper tray): 65 mm
    Tray B (Lower tray): 200 mm
  • Paper Size:
    Width: 105 to 356 mm
    Length: 200 to 508 mm
  • Number of bins:2 bins
  • Paper quality:
    Fine quality paper: 52.3 to 300 gsm
    Art/Coated paper: 79 to 300 gsm
  • Processing speed:
    A4 (SEF): 200 sheets/min
    A3 (SEF): 154 sets/min
  • Additional functions: Static Eliminator, End mark function, Alternate Bin Feeding
  • Dimensions:
    When the stand-alone use / stored: 920(W)× 750(D)× 843.5(H)mm
    When the DSF-2200+DBM-350+DBM-350T use / stored: 3,100(W)× 750(D)× 1,576(H)mm
  • Power Supply: AC 120 V 60 Hz, AC 220 to 240 V 50/60 Hz
  • Power consumption: 260W 2.2A(120V) / 1.1A(220 to 240V)
  • Weight: 115kg
  • Option: Barcode Kit, Trail edge air kit, preloading kit, PC arm mount, PC controller, Extension tray kit
