Specifications
Item # | 04CHLS185SA |
---|---|
Manufacturer | Challenge Machinery Company |
Manufacturer Part Number | 185SA |
Brand Name | Spartan |
Operating Method | Semi-Automatic |
Included Supplies & Accessories | 1 Stand with Casters, 2 High Speed Steel Knives, 3 Cutting Sticks, 1 Jogging Aid, 1 Tool Kit, 1 User Manual, 1 Knife Change Safety Holder Assy |
Power Voltage | 120V 60Hz, Single Phase AC |
Speed | 2.6 Seconds/ Cut |
Castors | Yes |
Dimensions | 41" L x 32-1/4" W x 52-3/4" H |
Manufacturer's Warranty | Limited 1 Year Parts |
Size | 17 ½" |
Capacity | 3" Thick Stack |
Shipping Weight (lbs) | 700 |
Shipping Information | This item ships via Truck (Common Carrier). Free dock to dock truck shipping is available for qualifying orders. It is the responsibility of the Consignee (receiver) to remove the product from the truck. If you do not have a loading dock or any other means to lift the freight off the truck and/or you need assistance bringing the product inside of your location please call (866) 537-2244. Click here for full details. |
Description
The Challenge Spartan 185S-A Electric Semi-Automatic Paper Cutter is a sleek, strong, 18" table-top machine perfect for the professional office, copy center, in-plant, and on-demand printing environments. Holding true to the Challenge tradition, the Spartan 185S-A,is engineered and manufactured to the highest of safety standards available in the world. Safety shields cover the front and rear tables. The front-side cut buttons require two hands to simultaneously activate the cut cycle.
Spartan 185-SA Semi-Automatic Cutter Features:
- Manual Clamping: The hand wheel design provides a strong clamping force resulting in high quality cuts.
- Manual Backgauge Control: Hand Wheel Control
- LED Digital Backgauge Position Indicator: With ±0.01” (±0.1mm) backgauge accuracy - provides for easier operator interface, higher productivity, and easier repeatable accuracy than a hard to read indicator on a scale as is used with other brands.
- Laser Red LED Cut Line Light: produces a bright easy to see cut line.
- Safe: two-hand push button controls and front and rear table safety shields.
- Auto-Releasing Front Safety Shield: automatically pops open after each cut cycle is completed. This unique benefit eliminates the need for the operator to manually lift the front shield in order to retrieve or adjust the stock after a cut providing increased productivity and operator ease-of-use.
- Durable: Heavy-Duty steel, cast iron, and cast aluminum construction gives the cutter "Challenge" durability.
- Maintenance Free: the LED cut-line light and UHMW Gibs result in the SPARTAN 185 being virtually maintenance-free with lifetime durability. UHMW Gibs on front and back of knife bar require zero maintenance and have lifetime durability. It also eliminates lubricant on knife bar that can spoil stock.
Videos

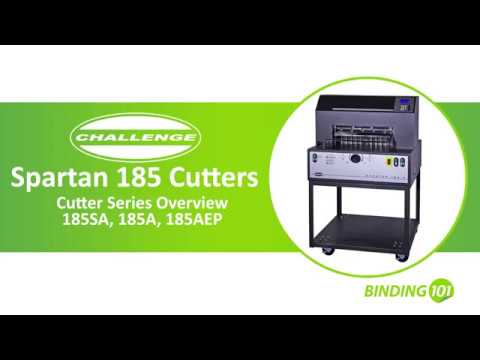

Challenge Spartan 185 Series Cutters | Overview
The Spartan 185 series Electric Cutters by Challenge Machinery are perfect for quick-print and on-demand businesses that value speed, safety, efficiency, and quality. The series includes three models to choose from: The Spartan 185S-A Semi-Automatic, the 185-A Automatic, or the 185-AEP Automatic and programmable cutter.
All three of these guillotine-style automatic cutters benefit from the following features: A “floating fingers” push bar that prevents paper from being trabbed beneath the... Read More
The Spartan 185 series Electric Cutters by Challenge Machinery are perfect for quick-print and on-demand businesses that value speed, safety, efficiency, and quality. The series includes three models to choose from: The Spartan 185S-A Semi-Automatic, the 185-A Automatic, or the 185-AEP Automatic and programmable cutter.
All three of these guillotine-style automatic cutters benefit from the following features: A “floating fingers” push bar that prevents paper from being trabbed beneath the back gauge. Exclusive maintenance-free knive bar gibs that are highly wear resistant. A bright LED cutting line that shows you exactly where the blade will hit your stack. External knife height adjustments for safe and easy modifications. A see-through enclosed rear table for operator visibility safety. And more…
The 185SA Semi-Automatic model features a manual clamping mechanism controlled by a hand wheel on the top of the machine. The back gauge control is adjusted by rotating wheels on the front of the machine. The 185A automatic model features an automatic clamp that depresses when you activate the blades, eliminating that manual step. The back gauge is still controlled with a hand wheel on the front of the machine. Both the 185SA and 185A feature an easy-to-read LCD digital displays that will show you imperial or metric measurements of the back gauge position as it moves.
The 185AEP has a digital hand wheel that allows for swift and simple maneuvering of the back gauge into position for increased productivity. It provides intuitive job programming for quick recall of common jobs, and machine diagnostics – both of which make it simple for even the most novice user to work with the machine.
The Spartan 185 Series Cutters can power through stacks up to 3” thick and 17 ½" wide, as fast as 2.6 seconds per cycle, depending on the model.
To keep your operator protected, they feature an auto-releasing tilt shield on the front table. When open, the clamp and blade cannot be activated, so it is impossible for your users’ hands to be near the mechanisms. The two-hand activation buttons also means that your operator cannot even leave a hand on the table while cutting.
For more information about the Challenge Spartan 185 series cutters, or to order yours, visit binding101.com or call the number on your screen.
