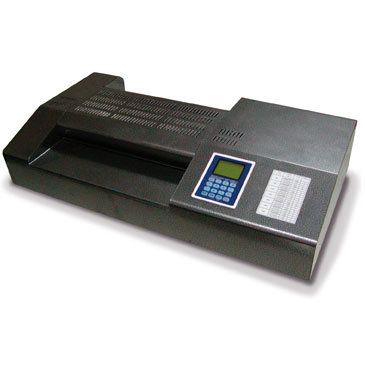

Spiral Speedy-Lam 330R10 10-Roller 13" Pouch Laminator
- 0
- 1
Overview
The Spiral Speedy-Lam 330R10 10 Roller Laminator is the fastest pouch laminator available, it will laminate up to 12' per minute. That allows you to run a letter sized pouch every 5 seconds.
Specifications
| Item # | 04LAM330R10 |
|---|---|
| Manufacturer | Spiral |
| Model # | Speedy-Lam 330R10 |
| Max Laminating Width | 13" (330mm) |
| Max Laminating Speed | 12 feet |
| Max Laminating Thickness | 14 mil |
| Number of Rollers | 10 |
| Operating Temperature | 0° to 160° c |
| Preheating Time | 5 Minutes |
| Power Consumption | 1500 W |
| Dimensions | 21" L x 13-3/4" W x 6-1/4" H |
| Weight | 55 lbs. |
Description
The Spiral Speedy-Lam 330R10 10 Roller Laminator is the fastest pouch laminator available, it will laminate up to 12' per minute. That allows you to run a letter sized pouch every 5 seconds.
The Speedy-Lam 330R10 offers 6 heated rollers, 2 cooling rollers and 2 outlet rollers. This unique 10 roller system offers super-fast lamination speeds while assuring high quality results even on difficult to laminate items such as photos, inkjet prints and color copies.
Patented cooling system keeps the exterior of the laminator cool to the touch even when doing long production runs.
The Speedy-Lam 330R10 offers a cool down cycle. Just press and holding the power button, this activates the cool down cycle. The cooling fans will continue to run until the machine has reached the correct shut down temperature. When the system is cooled it will automatically shut itself off thus preventing damage to the heated rollers.
The easy to remove top roller cover makes maintenance on the system simple. Electrical is CE Approved!
LCD Display Features:
- Temp. - variable heat controls
- Speed - variable speed controls
- Reverse - to clear jams
- Hot & Cold - allows for both types of lamination
- Memory - to preset jobs
- Measure - measure actual roller temperature
Features:
- Temperature Control
- Speed Control
- Reverse Switch
JBUSA Pouch Laminator Comparison
| Quick-Lam DH330 | Sprinter 335R6 | Speedy-Lam 330R10 | |
| Throat Capacity | 13" (330mm) | 13" (330mm) | 13" (330mm) |
| Max. Pouch Thickness | 10 mil | 10 mil | 14 mil |
| Controls | Electromechanical | Digital | Digital |
| Speed Controls | Fixed | Variable | Variable |
| Laminating Speed | 2' per min. | Up to 3-1/2' per min. | Up to 12' per min. |
| Number of Rollers | 4 | 6 | 10 |
| Operating Temperature | Up to 300 F | Up to 300 F | Up to 320 F |
| Heater Type | Heat Plate & Heated Rollers | Heated Rollers | Heated Rollers |
| Number of Heated Rollers | 2 | 4 | 6 |
| Reverse Switch | Yes | Yes | Yes |
| Power | 700 Watts | 1000 Watts | 1500 Watts |
| Preheating Time | 5 minutes | 5 minutes | 5 minutes |
