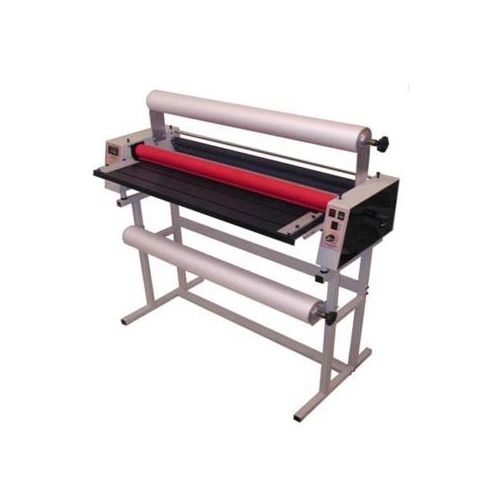

Pro-Lam PL238WF 38" laminator w/ Stand & Castors - 220 Volt [3" Core]
3859.27 NewCondition InStock

Pro-Lam PL238WF 38" laminator w/ Stand & Castors - 220 Volt [3" Core]

Item #: 04PL238WF
Brand: ProLam
FAQ: 1 Questions, 1 Answers
  • Laminates 38" wide media
  • Suitable for films of up to 10 mil and boards of up to 3/16" thick
  • Laminating speed of up to 7' per minute
  • 3" core
  • Price Match Guarantee!
  • Oversize / Truck shipping
  • Brand New
  • In Stock

$3,859.27

Overview

Perfect for light to medium duty use, the Pro-Lam PL238WF 38" Laminator with Stand and Casters can process all types of thermal films of 38" in width and up to 10 mil in thickness.

Specifications

Item #04PL238WF
ManufacturerPro-Lam
Manufacturer Part NumberPL-238WF
Speed Max Mechanical Speed7 fpm
Maximum Sustained Lamination Speed1.2 Mil @ 230 degrees 7fpm / 3 Mil @250 Degrees 5 fpm
Max Film Thickness10.0 Mil
Max Substrate Thickness3/16"
Cooling Fans3 @ 110 CFM ea. = 330 cubic feet per minute
Warm Up TimeAbout 5 min.
Max Film Roll Diameter1.5 mil w/o stand 6", with stand 11"
Stand Included3" Mandrels Included (1" optional)
Gapable rollsYes-Front Heat and Rear Pull Rollers
Motor / Speed ControlDC High Torque Gear Motor / Solid State Variable, Both Air Cooled
Slitters Micro-Adjustable optional
Heated Roller Watts1600 ea 3200 combined, X BTU's
Electrical Requirements240 Volt 60 Hz 20 Amps dedicated circuit
Dimensions49"W x 20"D 16"H -w/o stand 40"H-w/ stand
Shipping Dimensions 2 Packages Laminator18" x 54" x 20" / Stand 23" x 33" x 8"
Weight Laminator and Stand250 lbs
Shipping Weight Laminator180# Stand 70#

Description

Perfect for light to medium duty use, the Pro-Lam PL238WF 38" Laminator with Stand and Casters can process all types of thermal films of 38" in width and up to 10 mil in thickness. With a warm-up time of only 6 minutes, the laminator offers a convenient solution to complete thermal lamination projects and mounting on heat activated adhesive boards quickly and to a high standard of quality. The machine features silicone rollers for a scratch-free and bubble-free finish. The design allows you to easily laminate media with a speed of up to 7' per minute and mount boards that measure up to 3/16" in thickness. This model comes with 3" mandrels and a stand with casters. Optional 1" mandrels and slitters are also available separately.

Features:

  • Convenient laminator for light to medium use
  • Compatible with all types of laminating film
  • Suitable for films of up to 10 mil and boards of up to 3/16" thick
  • Laminates 38" wide media
  • Patented silicone rollers
  • 6 minute warm-up time
  • Variable speed control
  • Laminating speed of up to 7' per minute
  • Reverse feature
  • 3" core
  • Digital temperature setting
  • 3 cooling fans
  • Stand with casters included
  • Air cooled motor / speed control: DC high torque gear motor with solid state variable
  • Heated roller Watts: 1600 ea 3200 combined, X BTUs
  • Electrical: 220 Volt 60 Hz 20 Amps
  • Measurements: 49"W x 20"D 40"H with stand
  • Ships in 2 packages
  • Laminator shipping size of 18" x 54" x 20" and shipping weight of 180lbs
  • Stand shipping size of 23" x 33" x 8" and shipping weight of 70lbs

Product Reviews

Write Your Own Review
You're reviewing:Pro-Lam PL238WF 38" laminator w/ Stand & Castors - 220 Volt [3" Core]
Your Rating

Frequent Asked Questions

Q
The laminating rolls are not heating up is there a part I can check and order to fix this?
Asked by Steve Dyer
A
Hello. You can contact the manufacturer's tech support team here: http://www.pro-lam.com/laminator-technical-support.html
Answer by Binding101

Submit a New Question
