Spinnit® FMMH 3.1 Hydraulic 3-Spindle Floorstanding Paper Drill
6255 NewCondition InStock

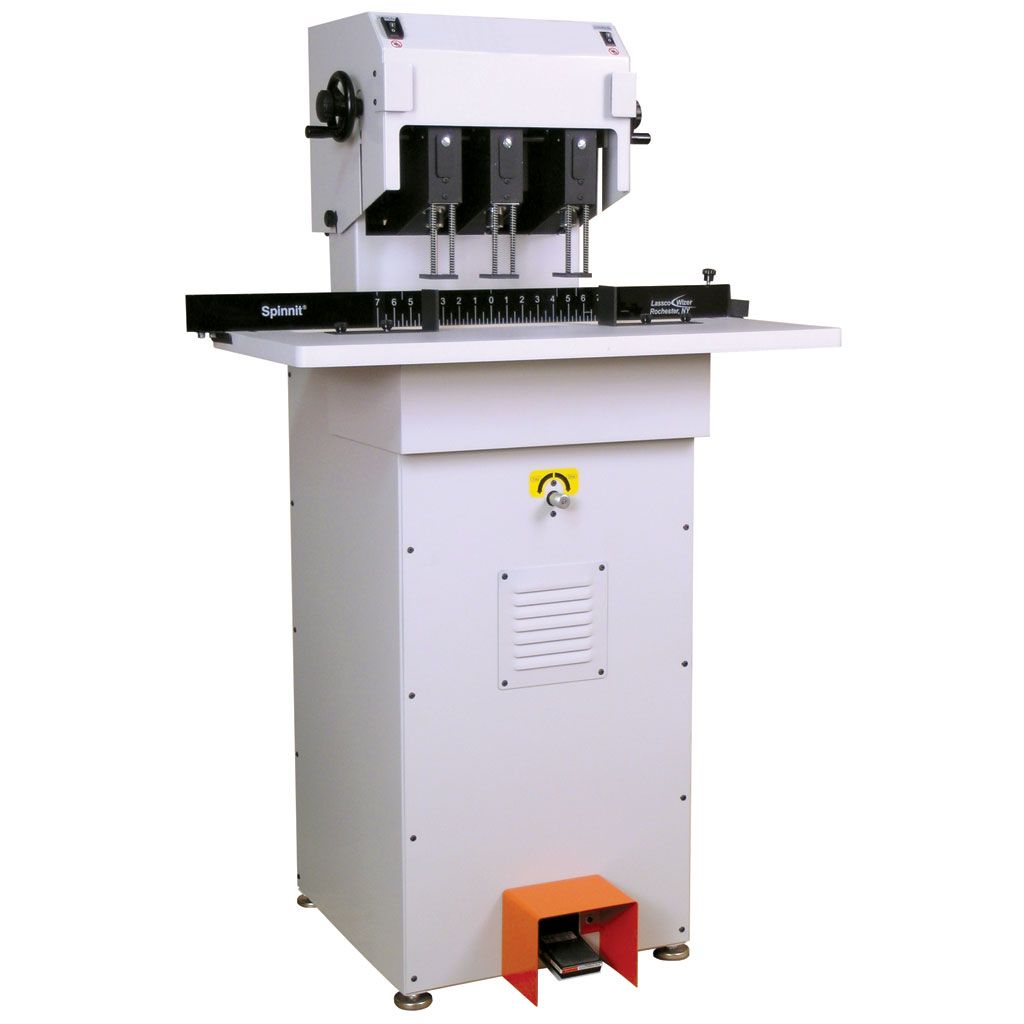

Spinnit® FMMH 3.1 Hydraulic 3-Spindle Floorstanding Paper Drill

Item #: 04DRILLFMMH31
Brand: Spinnit
  • 2 1/2" Drilling capacity
  • 15" x 32" Table size for extra large materials.
  • Comfortable 36" table height.
  • Takes up very little space with an 18" x 22" footprint
  • Price Match Guarantee!
  • Oversize / Truck shipping
  • Brand New
  • In Stock

$6,255.00

SWIPE FOR MORE IMAGES
  • 0
  • 1
  • 2
  • 3
video

Overview

If you're looking for an economically priced hydraulic paper drilling machine, then you may want to buy the Spinnit® FMMH 3.1 paper drill online. This triple-head machine drills three holes simultaneously, drastically speeding up the process of paper punching for binders, and more. Each drill head can be adjusted for custom hole patterns, and can be set as close to each other as 2", or as far apart as 5", on center. The Lassco Spinnit® floor model paper drill offers heavy duty hydraulic lift and, when combined with the high quality Style A 2 ½" drill bits, provides extremely smooth penetration with perfectly clean cuts. The foot pedal activation leaves both of your hands free to handle your pages. This paper drill machine has been designed for high production use, manufactured in the USA.

Specifications

Item #04DRILLFMMH31
ManufacturerLassco Wizer
Manufacturer Part NumberFMMH-3.1
Brand NameSpinnit®
OperationElectric
Operating MethodHydraulic [Foot Pedal]
Included Supplies & Accessories5/16" Standard 2" Spinnit Drill Bit
MS-1 Drill Sharpener
Sharpening Stone
Chip Clearer
Spin-eze Drill Bit Lubricant
Compatible SuppliesStyle A 2" Hollow Drill Bits
Hydrol HL Hydraulic Oil [15 Liters, #HL3HY]
Power Voltage115 V 20 Amp, 1/2 Hp Hydraulic Motor, 3/4 Hp Spindle Motor
DimensionsMachine: 32" W x 31" D x 54" H
Shipping: 48" x 41" x 63"
Base Footprint18" W x 22" D
Manufacturer's Warranty1 Year Limited
Quantity1
Can Cut MaterialsPaper
Number of Drill Holes3 [Triple Spindle]
Capacity: Paper Drills2 ½"
Distance Between Holes2" to 5" [Adjustable]
Adjustable BackgaugeYes
Hole Set Depth1/8" to 3"
Table Size32" W x 15" D
Table Height36" H
Mobile TableNo
Maximum Distance from Drill to Side GuideVariable [Table Traverses]
Product Weight (lbs)460
Shipping Weight (lbs)345
Shipping InformationThis item ships via Truck (Common Carrier). It is the responsibility of the Consignee (receiver) to remove the product from the truck. If you do not have a loading dock or any other means to lift the freight off the truck and/or you need assistance bringing the product inside of your location please call (866) 537-2244. Click here for full details.

Description

The Lassco Wizer Spinnit® FMMH 3.1 is a Fully Automatic Hydraulic Paper Drill with three spindles so you can drill up to three holes simultaneously. This Hydraulic Paper Drill is a heavy duty floor model that has been designed for high production use in professional print environments and production facilities with heavy volume. The FMMH 3.1 Automatic Drill offers three spindles and can drill through a stack of paper up to 2 ½" thick at one time. The FMMH 3.1 Paper Drill features an easily movable head design and is powered using a heavy duty hydraulic lift that is activated using a convenient foot pedal. Compatible with the Spinnit® Style A 2.5" Drill Bits.

Videos

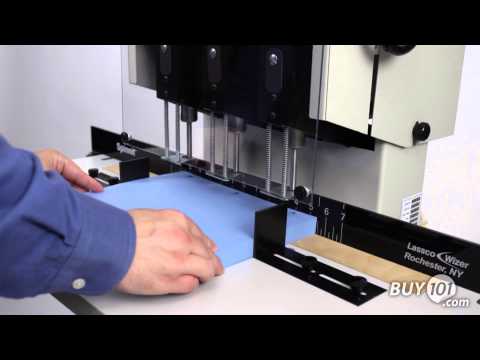

Lassco Wizer Spinnit® FMMH 3.1 Hydraulic 3-Spindle Floorstanding Paper Drill

Transcript: The Lassco Wizer FMMH-3 is a hydraulic powered 3-spindle drill that provides continuous drilling by foot pedal control. It has a 2" drilling capacity and an easy to adjust movable head design. The FMMH-3 is built for operation ease and maximum production performance.
The Lassco Wizer FMMH-3 is a hydraulic powered 3-spindle drill that provides continuous drilling by foot pedal control. It has a 2" drilling capacity and an easy to adjust movable head design. The FMMH-3 is built for operation ease and maximum production performance.
