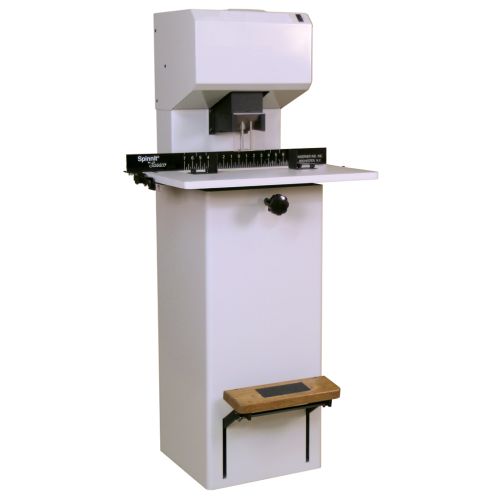

Spinnit® FM-2 Manual 1-Spindle Floorstanding Paper Drill
2547 NewCondition InStock

Spinnit® FM-2 Manual 1-Spindle Floorstanding Paper Drill

Item #: 04DRILL2
  • 2" Drilling capacity
  • 15" x 32" Table size for extra large materials.
  • Comfortable 35-1/2" table height.
  • Takes up very little space with an 18" x 22" footprint
  • Price Match Guarantee!
  • Oversize / Truck shipping
  • Brand New
  • In Stock

$2,547.00

video

Overview

The Lassco Wizer Spinnit® FM-2 Single Spindle Paper Drill offers hands-free, low maintenance, and efficient operation, providing maximum production at an affordable price. Compatible with Style A 2" Drill Bits which are available in diameter sizes ranging from 1/8" to 1/2".

Specifications

Item #04DRILL2
ManufacturerLassco Wizer
Operating MethodManual (Foot Pedal)
Included Supplies & Accessories5/16" Standard 2" Spinnit Drill Bit, , 4 Interchangeable EZ Glide Templates
Power Voltage1/4 Hp, 115 V
DimensionsTable: 15" d x 32" w x 35-1/2" h
Quantity1
Can Cut MaterialsPaper
Capacity*2" Drilling Capacity
Product Weight (lbs)150
Shipping Weight (lbs)150
Shipping InformationThis item ships via Truck (Common Carrier). It is the responsibility of the Consignee (receiver) to remove the product from the truck. If you do not have a loading dock or any other means to lift the freight off the truck and/or you need assistance bringing the product inside of your location please call (866) 537-2244. Click here for full details.

Description

The Lassco Wizer Spinnit® FM-2 Single Spindle Paper Drill offers hands-free, low maintenance, and efficient operation, providing maximum production at an affordable price. Drill through hundreds of sheets of paper at once with a 2" drilling capacity. The FM-2 also features a mechanical lift table that has a right to left and left to right traversing feature. This lift table brings the paper up to the spindles.

The FM-2 is one of the lowest cost floor model Paper Drill on the market. It requires low maintenance and operates efficiently. The FM-2 Drill is compatible with Style A 2" Drill Bits which are available in diameter sizes ranging from 1/8" to 1/2", and in styles including standard, premium, Teflon and premium Teflon.

An economical heavy duty floor standing paper drill, the Lassco Wizer Spinnit® FM-2 is designed to drill one hole at a time in a stack of paper up to 2" thick. The FM-2 has been improved with the EZ-Glide table system that allows quick movement from hole to hole for multi-hole drilling purposes. Four interchangeable hole patterns are included with this machine and custom patterns are also available.

Interchangeable EZ Glide Templates:

  • 3 holes, 2-3/4” apart center to center
  • 3 holes, 3-1/2” apart center to center
  • 2 holes, 2-3/4” apart center to center
  • 3 holes, 4-1/4” apart center to center

This paper drill also features a release lever that is positioned on each side of the table for either left or right handed operation.

  Table Travel    14"
  Maximum Throat Depth    3-3/4"

Videos

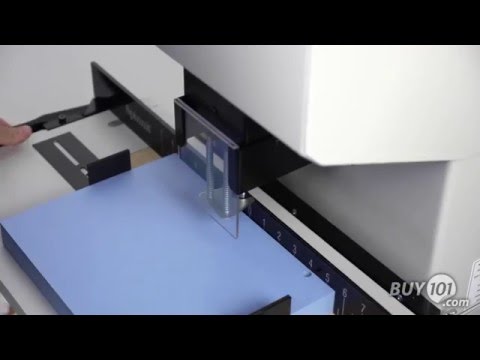

Spinnit® FM-2 Manual 1-Spindle Floorstanding Paper Drill Overview

Transcript: Watch this video about the Lassco Wizer Spinnit® FM-2 Manual 1-Spindle Floorstanding Paper Drill to help determine if it is a good fit for your needs. It is designed for single-hole drilling up to 2" thick, sits comfortably at a pre-set working height with an EZ glide table, and is manually operated with a foot pedal, offering maximum productivity at an affordable price.
Watch this video about the Lassco Wizer Spinnit® FM-2 Manual 1-Spindle Floorstanding Paper Drill to help determine if it is a good fit for your needs. It is designed for single-hole drilling up to 2" thick, sits comfortably at a pre-set working height with an EZ glide table, and is manually operated with a foot pedal, offering maximum productivity at an affordable price.
