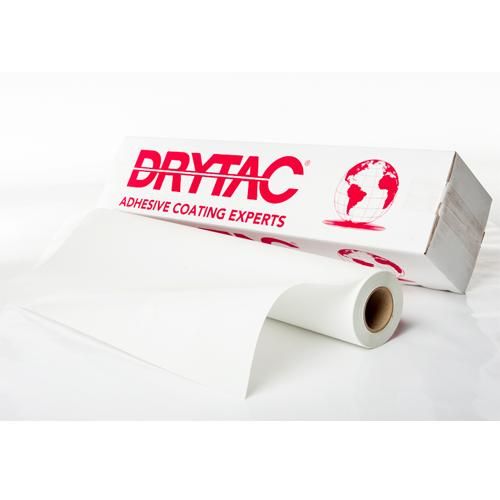

Drytac Interlam Pro Matte UV Pressure-Sensitive Overlaminating Film [4mil, 51" x 150'] - 1 Roll
- 0
- 1
Overview
Perfect for your indoor and outdoor lamination, the Drytac Interlam Pro Matte UV 4mil 51" x 150' Pressure-Sensitive Overlaminating Film is monomeric soft calendared PVC laminating film with a lustre finish. It's coated on one side with a pressure sensitive, aqueous acrylic adhesive, protected by Kraft release paper that is siliconized on the release side and PE-coated on the other.
Specifications
| Item # | 80DTILM51150 |
|---|---|
| Manufacturer | Drytac |
| Manufacturer Item # | ILM51150 |
| Brand | Drytac |
| Film Length | 150' |
| Film Width | 51" |
| Film Thickness | 4 mil |
| Base Film | 75µ (3 mil) |
| Film | Matte, Monomeric Soft Calendared PVC |
| Adhesive | Aqueous Acrylic (Pressure Sensitive) |
| Release Liner | 2 Side PE Coated, 1 Side Siliconized Kraft Paper |
| Adhesive Layer | 25µ (1 mil) |
| Ratio Film / Adhesive | 3:1 |
| UV Protection Factor | Film and adhesive contains UV stabilizers, which prevent film degradation and provide UV protection to the underlying image |
| Outdoor Durability | 3+ years |
| Heat Resistance Range | 70°C-95°C (158°F-203°F) |
| Peel Strength (20 min, FTM1) | 11 N/25mm |
Description
Perfect for your indoor and outdoor lamination, the Drytac Interlam Pro Matte UV 4mil 51" x 150' Pressure-Sensitive Overlaminating Film is monomeric soft calendared PVC laminating film with a lustre finish. It's coated on one side with a pressure sensitive, aqueous acrylic adhesive, protected by Kraft release paper that is siliconized on the release side and PE-coated on the other. The acrylic pressure sensitive, aqueous adhesive prevents silvering and forms an exceptional bond with the UV inks as well as a variety of substrate materials including latex. In addition, it is highly resistant to weather and temperature changes. It has been formulated to be phthalate free.
Features:
- Recommended for situations internally and externally where a non-glare finish is required or where specific lighting conditions cannot be controlled.
- Ideal for POP displays, courtroom displays and exhibitions, aisle danglers, and promotional signage that will be viewed under direct lighting from different angles.
- Interlam Pro Matte UV has a Class 0 Fire Rating according to UK standards for surface spread of fl ame, making it perfect for applications in public areas that require compliance with strict fire regulations, such as airports, hotels and hospitals.
Product Reviews
Technical Data
Typical Applications
- Recommended for interior and exterior use where a non-glare finish is required or where specifi c lighting conditions cannot be controlled.
- Ideal for POP displays, exhibition graphics and promotional signage that will be viewed under direct lighting from diff erent angles.
Product Structure
| Film | Matte Monomeric Soft Calendared PVC |
|---|---|
| Adhesive | Acrylic (Pressure Sensitive) |
| Release Liner | 2 Side PE Coated, 1 Side Siliconized Kraft |
Physical Characteristics
| Film Thickness | 3 mil (75µ) |
|---|---|
| Adhesive Layer | 1 mil (25µ) |
| Film/Adhesive Ratio | 3:1 |
| UV Protection Factor | Film contains UV stabilizers, which prevent film degradation and provide UV protection to the underlying image |
| Outdoor Durability | 3 years |
| Service Temperature Range | -13°F to 302°F (-25°C to 150°C) |
| Peel Strength (20 min, FTM1) | 11 N/25mm |
| Shelf Life | Use within 1 year after opening original box |
| Storage Conditions | 59°F to 72°F (15°C to 22°C); 50 - 55% Relative Humidity |
Process Settings
| Equipment Type | Temperature | Speed |
|---|---|---|
| Roller Laminator | Room temperature to 104°F (40°C) | 1 ft to 8 ft (0.3m to 2.5m) per minute |
| Press | Not recommended | |
