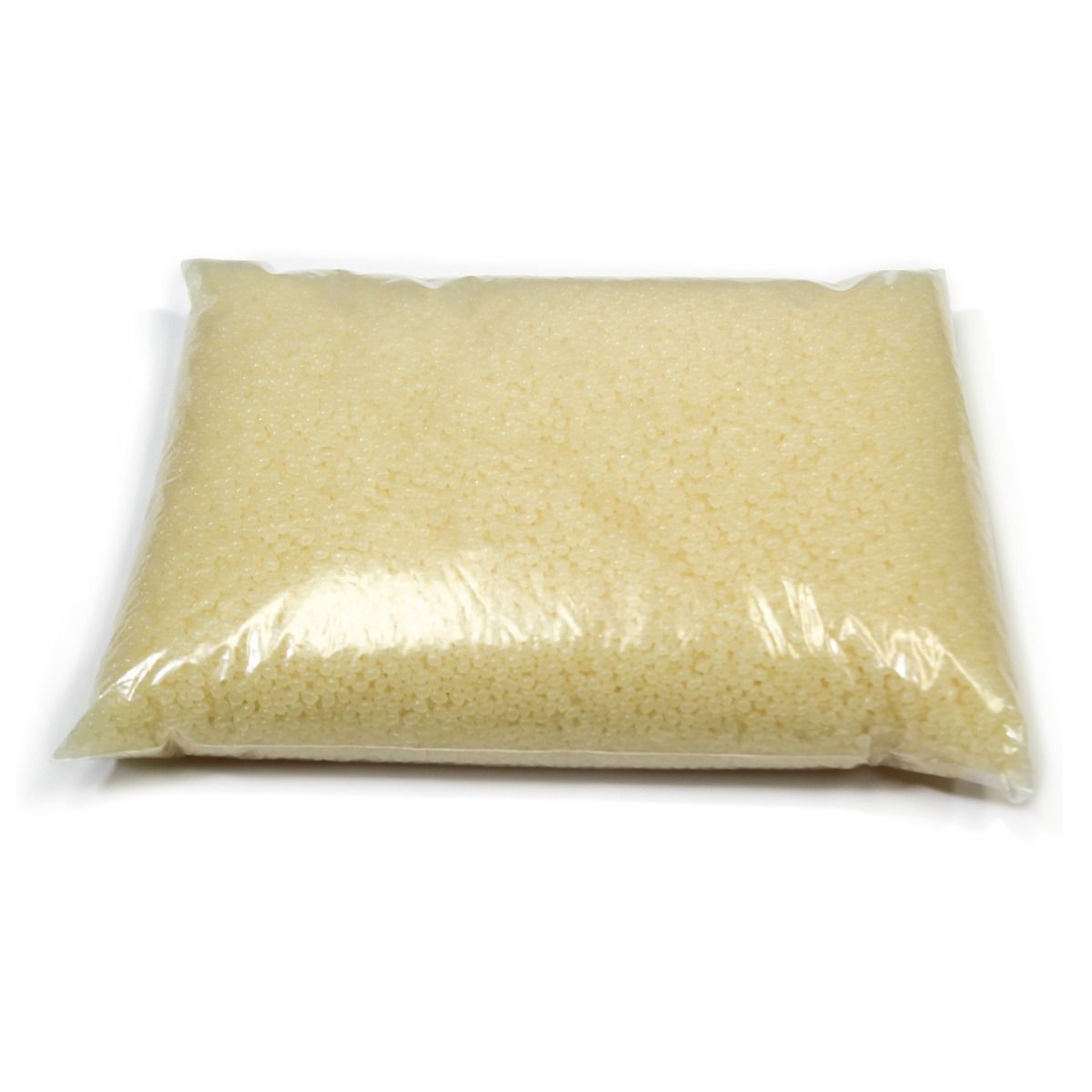

5 lb. Bag of Coverbind Standard Perfect Bind Adhesive
- 0
- 1
- 2
Overview
Coverbind’s standard quality perfect binding glue is compatible with the Coverbind CPB1 and CPB2SG perfect binding machines. This book glue is a hot melt binding adhesive that strengthens as it cures. It offers a lower EVA content than premium glue, making it perfect for padding or perfect binding with non-coated paper stocks. This specialized binding adhesive was designed to offer an impressively strong bind while keeping the ideal flexibility to allow for long-lasting binding, even with heavy use of the finished book. It offers excellent adhesion, low odor, a quick-dry time, good color, low energy use, reduced burn hazard, and less maintenance. Choose from standard 5 lb. or 30 lb. bag.
Specifications
| Item # | 05TPCBPB416C |
|---|---|
| Manufacturer | Coverbind |
| Compatible Equipment | Coverbind CPB1 Perfect Binding Machine Coverbind CPB2SG Perfect Binding Machine |
| Size | 5 Pound Bag |
| Adhesive | Standard |
| Color | Light Yellow |
| Running Temperature | 260-290°F |
| Application Temperature | 275°F and +/- 15°F |
| Applicator | 275°F Premelter |
| Softening Point (Approximate) | 156°F Mettler |
| Form | Mini Slats |
| Pounds per Gallon (Approximate) | 8.2 lbs./gal |
| Adhesive Type | EVA Hot-Melt |
| Odor | Low-Odor |
| Viscosity (Approximate) | 1550 cps @ 350°F. 2250 cps @ 325°F. 3350 cps @ 300°F. 5250 cps @ 275°F. 8900 cps @ 250°F. 16000 cps @ 225°F. 31225 cps @ 200°F |
| Applications | Padding, Perfect Binding (Non-Coated Stock) |
| Certifications | N/A |
| Weight | 5 lbs. |
| Shipping Weight | 7 lbs. |
| Shipping Method | UPS |
Description
Make premium paperback documents in your print production house using the Coverbind Standard Perfect Binding Glue and your CPB1 or CPB2SG perfect binders. This hot melt binding adhesive is specially designed to offer a strong and flexible hold, to ensure your paperback bound manuals, novels, and more will stand the test of time. It is designed for application at 275°F +/- 15°F and offers excellent adhesion, low odor, good color, low energy use, reduced burn hazard, and less maintenance. Get the best perfect binding glue with Coverbind.
Key Benefits & Features:
- Strong Bind – Pages are locked into the spine for premium quality strength that can withstand heavy use.
- Flexible Finish – Flexibility retention makes page-turning easy and doesn’t harm the integrity of the glue as it moves.
- Multi-Compatibility – Compatible with all Coverbind Perfect Binding Machines, including the CPB1, CPB2, and CPB2SG.
- Size Options – Choose from either a small 5 lb. bag or a large 30 lb. box to keep you stocked up for short- and large-run binding jobs.
Videos
Coverbind CPB2SG Perfect Binding Machine Video
The pneumatic powered clamping mechanisms automatically adjusts to your book block thickness from two sheets of paper up to 2-1/4” thick. Both the clamp and nipping table are pneumatic and operate with the compressor that is included with the system.
The simple to use control... Read More
The pneumatic powered clamping mechanisms automatically adjusts to your book block thickness from two sheets of paper up to 2-1/4” thick. Both the clamp and nipping table are pneumatic and operate with the compressor that is included with the system.
The simple to use control panel and LCD display lets you customize the machine to your specific job quickly and the safety cover disables the machine when in the open position.
The CPB2SG is a production powerhouse able to bind up to 360 books per hour, depending on the book specifications and operator capabilities.
Offering heavy-duty notching pins, designed to mill deeper into the spine. There is an adjustment on the machine to change the depth of milling on the book block to facilitate the binding of problem stocks such as offset, coated, and books printed with oil or wax-based inks.
The CPB2SG system includes a vacuum waste removal system to eliminate dust created by the spine notching system. The dual glue application rollers make sure the glue is applied to all surfaces of the spine and the metering roller smooths out the glue to the desired thickness.
The CPB2SG includes side gluing rollers, normally found in more expensive systems, to assure secure binding. It also allows for the use of creased hinged covers.
The nipping table has an adjustable height and an adjustable dwell time of up to 3 seconds. The nipper adjustment knob allows the operator to increase or decrease the travel of the nipper to produce an exceptionally square-backed book.
There are 4 important sensors on the machine.
1. The book clamp sensor will prevent the book clamp from closing without a book block in the machine.
2. The cover sensor will prevent to book block moving across the gluing section and into the nipping table unless a cover is in place
3. The safety touch sensor on the top of the clamp, will automatically open the clamp if a hand is on the book clamp.
4. The safety cover sensor will not allow the system to run and will automatically stops the machine if the cover is raised.
The CPB2SG includes a stand that holds the compressor and vacuum system. The stand is on casters making it easy to move around the shop where needed or out of the way when not in use. The exit tray provides a staging area for cover stock and an area to stack books as they come out of the machine.
Accomplish swift, simple, and automated binding of your perfect bound books with the Coverbind CPB2SG. An ideal perfect binding solution for in-plant and on-demand print shops and binderies.
