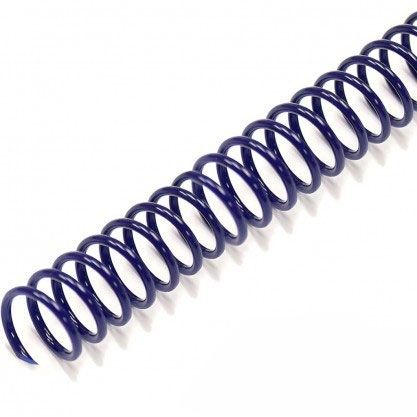

4:1 Navy 12" Spiral Plastic Coils
Our top-quality navy spiral binding coils are one of the most popular options of one of the most common ways to document bind. Their flexibility, strength, and affordability make them a top choice for businesses and users of all kinds, and the rich color matches well with company branding of all kinds. Choose from a huge selection of coil binding sizes from small 6mm (1/4?) coils for up to and 35 sheets, to large 50mm (2?) coils for up to 440 sheets (20 lb. bond). They are 12? long, which is the standard length for letter size 8.5? x 11? pages; the extra 1/2? in each side allows you to easily cut and crimp-in the ends of the spine to finish the bind. They feature the standard 4:1 pitch hole spacing, which is compatible with the largest variety of spiral binding machines. Most sizes of plastic coil bindings are packaged with 100 coils per box, but large sizes may only have 50 spines.
|Size||Choose from 6mm to 40mm (1/4" to 1-9/16")|
|Sheet Capacity*||Up to 350 Sheets (Depending on Size; 20 lb. bond paper)|
|Recommended Book Thickness||Up to 1-1/2" (Depending on Size; Loose Stack)|
|Maximum Binding Edge||11"|
|Filament Diameter**||1.6mm to 2.4mm (Depending on Size)|
|Binding Style||Spiral Binding / Plastic Coil|
Spiral binding plastic coils are one of the most popular traditional binding methods available. They consist of a continuous spiraled coil that is made of durable and flexible plastic and is rolled into holes along a binding edge. Spiral binding coils offer a more modern and durable way to bind books over the traditional comb spines, while still being affordable and simple to use. Another benefit of spiral binding coils over many other binding methods it that, coil bound books have the ability to flip pages completely around a full 360 degrees without damaging the contents, so they can lay flat and stay flat. This allows your book pages to flip all the way around from front to back for easy readability. They bounce-back to their original shape, even after heavy use and bending. Plus, the plastic material can easily be sanitized between users (just pair with contents that are laminated / fully encapsulated for an easy-to-clean solution).
If you are ready for one of the most durable binding spines available, then buy color spiral binding plastic coils online at Binding101 today. We have a huge selection of coil binders in-stock and ready for fast shipping to your home or office. Need some help choosing the right size for your individual needs? Read our guide below that can help you determine what kinds of coils you should select. Or, if you still need help, give our representatives a call at (866) 537-2244 .
What Kind of Coils Do I Need to Buy?
We offer a huge selection of spiral binding coils for you to choose from, most stocked in all our nation-wide USA warehouses for fast shipment and delivery. There are four different categories of coil to choose from, including the length of the coil, the pitch, the diameter (or coil size), and the color. Here are the steps to follow for how to choose the binding coils you need to buy.
1) Choose a Coil Length
First, choose your coil length. 12" coils are made for letter size pages and are the most popular choice. 36" length are a bit more specialty, primarily used by print shops are those wanting to make multiple books from one single coil spine. 36 inch length coils are also great for oversize and jumbo books.
Need a different length? You can easily cut down the above stocked coil lengths to the size you need, but sometimes that is not the most efficient option for larger quantities. If you need 100 or more coils of a specific length, consider custom cut coils instead. And remember to order 1" longer than your document length so you have that extra 1/2" on each end that allows for cutting/crimping in and finishing the bind.
2) Choose a Coil Pitch
Once you have chosen the length of your coil bind spine, choose your pitch. What is a binding pitch? Pitch refers to the holes per inch, or the hole spacing. They are reflected in a ratio that includes the number of holes, a colon punctuation, and then the inch measurement...for example, 4:1 is pronounced “four to one” and means that there are 4 holes for every 1 inch and 5:1 means there are 5 holes for every 1 inch.
4:1 pitch binding coil spines are by far the most popular, as it is the standard spacing for coils in the United States. About 98% of our customers order 4:1 pitch spiral bindings. The 5:1 is a specialty spacing that is manufactured primarily for print shops that have specialty equipment for punching the pattern, and users who may have machines manufactured in other countries where the 5:1 spacing is more common. You will want to check your spiral binding machine for compatibility before you buy spiral binders online.
3) Choose a Coil Size / Diameter
Now choose your coil size (diameter) for your document. You can use the coil bind capacity chart below to help choose the best size based on your stack thickness or your sheet capacity. Just note that the sheet capacity was calculated using sheets (not pages) that were all 20 lb. bond copy paper, without any covers; this means it can vary significantly depending on the stock you are using, which is why we recommend the stack thickness method instead. And remember: having a coil that is slightly too large is better than having a coil that is too small; a small coil won't allow pages to flip smoothly and can pinch them, tear more easily. So if you are between sizes, we recommend you size-up.
There is also a general rule with three simple steps to get the proper fit for spiral binding that works as well:
1. Take the pages and covers being bound and lay the stack flat on a table.
2. Measure the thickness of the stack, but don’t press down; let it lay naturally loose.
3. Add 1/8" to the stack thickness - that will be the size of the binding coil recommended for your document thickness.
|Size (Millimeter)||Size (Inches)||Stack Capacity (Inches)||Sheet Capacity* (20 lb. Bond)||Filament Diameter|
|6mm||1/4"||5/32" Thick Stack||5-35 Sheets||1.6mm|
|7mm||9/32"||3/16" Thick Stack||36-47 Sheets||1.6mm|
|8mm||5/16"||1/4" Thick Stack||48-60 Sheets||1.6mm|
|9mm||23/64"||9/32" Thick Stack||61-70 Sheets||1.75mm|
|10mm||3/8"||5/16" Thick Stack||71-80 Sheets||1.75mm|
|11mm||7/16"||3/8" Thick Stack||81-90 Sheets||1.75mm|
|12mm||1/2"||13/32" Thick Stack||91-100 Sheets||1.75mm|
|13mm||17/32"||7/16" Thick Stack||101-110 Sheets||2mm|
|14mm||9/16"||15/32" Thick Stack||111-120 Sheets||2mm|
|15mm||19/32"||1/2" Thick Stack||121-130 Sheets||2mm|
|16mm||5/8"||9/16" Thick Stack||131-140 Sheets||2mm|
|17mm||0.67"||0.55" Thick Stack||141-150 Sheets||2mm|
|18mm||23/32"||5/8" Thick Stack||151-160 Sheets||2.08mm|
|19mm||0.748"||0.62" Thick Stack||161-165 Sheets||2.08mm|
|20mm||3/4"||11/16" Thick Stack||161-170 Sheets||2.08mm|
|22mm||7/8"||3/4" Thick Stack||181-200 Sheets||2.08mm|
|23mm||9/10"||4/5" Thick Stack||201-210 Sheets||2.08mm|
|25mm||1"||13/16" Thick Stack||211-230 Sheets||2.36mm|
|28mm||1-1/8"||7/8" Thick Stack||231-250 Sheets||2.36mm|
|30mm||1-3/16"||1" Thick Book||251-270 Sheets||2.36mm|
|32mm||1-1/4"||1-1/16" Thick Stack||271-290 Sheets||2.36mm|
|35mm||1-3/8"||1-1/4" Thick Stack||291-300 Sheets||2.36mm|
|38mm||1-1/2"||1-3/8" Thick Stack||300-320 Sheets||2.4mm|
|40mm||1-9/16"||1-1/2" Thick Stack||321-350 Sheets||2.4mm|
|45mm||1-3/4"||1-9/16" Thick Stack||351-390 Sheets||2.4mm|
|50mm||2"||1 -3/4" Thick Stack||391-440 Sheets||2.6mm|
4) Choose a Coil Color
Lastly, choose your coil binding comb color. Stocked colors for most sizes and pitches include black, white, clear, royal blue, navy blue, red, and silver. The colors are solid, not coated, so even with heavy use and scratching, they will remain. Black coils are the most popular choice, while white and clear are close behind. Maroon and navy blue are popular choices for professional institutions, as they often match corporate branding. Red and royal blue are brighter and more vibrant than the others, so are more common for schools and other organizations where brighter colored coil bindings are needed.
If you have any questions, or are still not sure what kind of coil to buy, please call us at (866) 537-2244 for help.
* The sheet capacity rating above was calculated using all 20 lb. bond paper, with no covers and no other paper stocks. The actual sheet capacity will vary depending on what paper stock and covers you are using. For this reason, we recommend you use the stack capacity for a more accurate fit. All of these capacities are approximations. If you are between sizes, we recommend you size-up to allow for easier page-turning.
Spiral Coil Bindings Expert Review by Mallory Morsa
About Our Expert • Mallory Morsa has worked in several different departments in her 10+ years at Binding101. Beginning in customer service and sales, she honed in her skills to provide the customer with professional, fast, and accurate information. Shortly after, she was promoted to sales supervisor and product expert, gaining hands-on and in-depth product research as well as training the team on new products. She now holds the position of content specialist, taking her extensive knowledge of our products and putting it on the web for you to access at any time. In her expert reviews, she outlines the good and the bad of products that she has handled herself, and uses her experience to identify the ideal users. If you have any questions or need more information about this product, please call our trained customer care team at (866)537-2244. Thank you for stopping by!
I RECOMMEND THIS FOR:
Spiral coil binding is the ideal choice for anyone who needs a durable and flexible binding spine. For users such as those who may travel with their bound documents on sales calls, or go to conferences across the country, coil bindings are a great choice because they are durable enough to withstand handling and packaging without being damaged (but be sure to protect your pages properly with report covers). They might not be the best choice for high-end presentations, though, because some users feel that the plastic is not very professional; but if durability, longevity, and ease-of-use are important to you, then plastic coil binding might just be the best bet.
HOW COIL COMPARES TO OTHER BINDINGS:
When talking about punch-and-bind solutions, coil binding is often what people first picture in their minds. In fact, spiral coils are the most popular way to bind presentations and books within a business across the board. But with that in mind, let’s compare some of the functions and features of coils with other popular punch-and-bind options, so you can more accurately gauge which one will be the best choice for your individual needs.
|Binding Type||Spiral Coils||Wires||Combs|
|Largest Book You Can Bind*||1 ¾" Thick Stack
About 440 Sheets
(With a 50mm Coil)
|1 ⅛" Thick Stack
About 260 Sheets
(With a 1 ¼" Wire)
|1 ⅞" Thick Stack
About 425 Sheets**
(With a 2” Comb)
|Part of the reason why coil bindings can hold more capacity, even compared to larger alternatives, is because they are a continuous loop of plastic. Wires are metal (which doesn’t have the same bounce-back) with loops that protrude into the holes, and combs have prongs or teeth that tuck under the spine. The continuous coil is stronger and can hold more pages, without worry about them falling out.|
|Damage when Bent||No||Yes||Yes|
|Color Choices||White, Black, Maroon, Red, Clear, Blue, Navy, Forest Green
+ many special-order colors, including (not limited to) purple, pink, yellow, orange, baby blue, teal, leaf green, gold, charcoal, brown, pearl white, & more
|White, Black, Silver, Pewter, Blue, Navy, Gray, Gold, Green, Red||White, Black, Clear, Gray, Blue, Navy, Maroon, Red, Green, Brown***, Matte Black***|
WHAT I LIKE ABOUT SPIRALS:
As mentioned above, the most notable feature of coils is their durability. But if you’re asking me for my personal favorite thing about them...well, I would have to say it is that they make fun cat toys. Check out my cat, Shadow in this coil video at 0:14 in her moment of fame (supervised play only, IMO). In more seriousness, though, coil bindings are truly a staple in the industry. Preferred by the majority of businesses, they are simple, they look nice, and they’re tough.
I also love the huge variety of colors and the fact that, even the more unique special order colors, can be produced quickly, making them more accessible for any company, even those on a more strict deadline. The many colored coil options make it easy to brand-match them to your logo, your client’s business, or the theme of your specific presentation.
THINGS TO CONSIDER:
The reason for choosing options other than binding coils is nearly always the “cheap look” of the plastic. But that refers simple to the fact that the material is plastic, not to the thickness or make of the plastic. In fact, the plastic filament used to make coil bindings is quite thick, and this falls more to a color choice. For example, the black and clear are my favorite stocked colors precisely because of the fact that they look professional (and the pearl white special order; so gorgeous!). Something else we sometimes hear is that the bind process takes too long; customers who need something fast should consider some document binding solutions that don’t require punching at all, such as thermal binding or tape binding. And lastly, some users feel that it is too difficult to roll in the extra long coils through the many holes on a binding edge (usually 43 or 44 holes); those users would benefit from adding an electric coil inserter (preferably one with adjustable rollers) to drastically increase the speed and efficiency, virtually eliminating any stress. And even with all of these “negatives” or reasons why someone might choose a different binding over coil, our spiral binding still have an all 5-star rating, and remain our best selling binding supply.
THE BOTTOM LINE:
Spiral binding is awesome. That’s the bottom line!
* Approximations. Sheet capacity based on 20# bond copy paper. | ** Although the comb is larger, you will notice the sheet capacity is less. That is because of the weight of the paper sheets; too many pages will be too heavy for the comb prongs to hold. | *** Clearance colors, available in select sizes, while supplies last.
