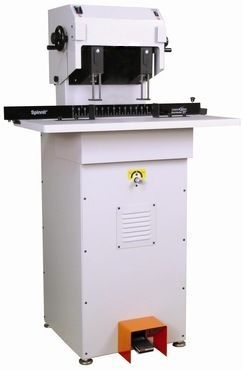

Spinnit FMMH-2.1 Two Spindle Hydraulic Paper Drill
|Manufacturer Part Number||FMMH-2.1C|
|Included Supplies & Accessories||MS-1 Drill Bit Sharpener|
Set of 5/16” Drill Bits
|Compatible Supplies & Accessories||Teflon Style A Drill Bits|
Premium Style A Drill Bits
|Power Voltage||1/2 HP, 115 Volts (Hydraulic Motor) / 3/4 HP, 115 Volts (Spindle Motor)|
|Dimensions||48" x 40" x 63"|
|Manufacturer's Warranty||1 Year Limited|
|Number of Drill Holes||2 [Double Spindle]|
|Capacity: Paper Drills||2 ½"|
|Table Size||15" x 32"|
|Product Weight (lbs)||345|
|Shipping Weight (lbs)||460|
|Shipping Information||This item ships via Truck (Common Carrier). It is the responsibility of the Consignee (receiver) to remove the product from the truck. If you do not have a loading dock or any other means to lift the freight off the truck and/or you need assistance bringing the product inside of your location please call (866) 537-2244. Click here for full details.|
The Spinnit FMMH-2.1 is a two-spindle paper drill that features hydraulic activation for no-effort drilling through up to 2-1/2" thick stacks of material. The dual spindles are movable, so you can space your holes however you see fit. The powerful hydraulic lift and foot pedal activation make this unit easy to use for your operators. An adjustable back gauge lets you set the hole depth, while adjustable hydraulic lift speed gives them full control. The Spinnit FMMH 2.1 has been build by Lassco Wizer for ease of operation and maximum production performance.
- 2-1/2" Drilling capacity.
- 15" x 32" Table size for extra large materials.
- Comfortable 36" table height.
- Takes up very little space with an 18" x 22" footprint..
