Rhin-O-Tuff HD7725/HD7700 3-in-1 PPS Pick Punch & Stack System
1228
4819
25
Rhin-O-Tuff HD7725/HD7700 3-in-1 PPS Pick Punch & Stack System
Brand:
Rhin-O-Tuff
- Drastically improve punching output without increasing labor costs
- Perfect set up for those that need more production but can't cost justify a fully automatic punching system
- Average ROI in just 10 months
- 14" wide, open-ended punching capabilities
- Oversize / Truck shipping
Starting At:
$1,228.00
- All equipment components must be purchased together for system to work; HD7700 #04HD7700EP, APES-14 #04HDAPES, PAL-14 #04PICKALIFT, Paper Stop #04HDAPESPS, plus at least 1 die of your choice.
Choose Below
SWIPE FOR MORE IMAGES
- 0
- 1
- 2
- 3
- 4
- 5
Overview

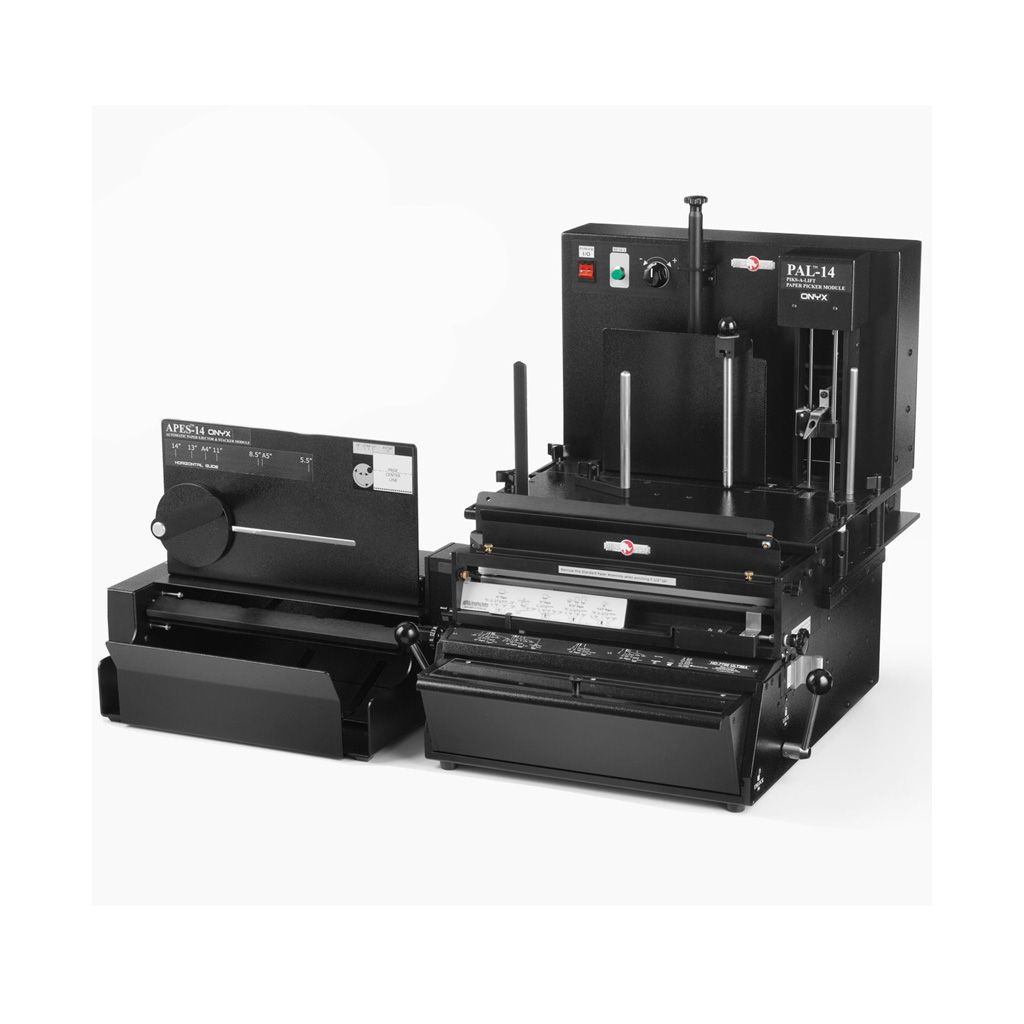

The Rhin-O-Tuff HD7725/HD7700 3-in-1 PPS Pick, Punch & Stack System will increase your punching capacity without adding labor cost. This system consists of the HD7700 Ultima Heavy Duty Punch, the APES-14 Automatic Ejector and Stacker, the PAL-14 Piks-A-Lift, and the paper stop switch. The system will offer a ROI (return on investment) in 10 months compared to just a stand alone HD7725/HD7700 electric punch. It is a perfect set up for those that need more production but can't cost justify a fully automatic punching system.
Specifications
| Manufacturer | Rhin-O-Tuff |
|---|---|
| HD7725/HD7700 Punching Method | Electric |
| HD7725/HD7700 Punching Format | Vertical |
| HD7725/HD7700 Maximum Punching Capacity | 55 Sheets* (20# Paper) |
| HD7725/HD7700 Maximum Binding Edge | 14" |
| HD7725/HD7700 Disengageable Pins | Yes |
| HD7725/HD7700 Open Ended Punch | Yes |
| HD7725/HD7700 Operation | Foot Pedal or Palm Switch |
| HD7725/HD7700 Dimensions (W x D x H) | 21" x 22.5" x 8.5" |
| HD7725/HD7700 Shipping Weight | 103 lbs. |
| APES-14 Paper sizes | from 5½" x 5½" up to 14" x 14" |
| APES-14 Increase productivity | up to 33% |
| APES-14 Manufacturer's Warranty | 6 Year |
| PAL-14 Paper sizes | from 5-1/2" x 5-1/2" up to 14" |
| PAL-14 Average paper count accuracy | + or - 1 sheet for each lift |
| PAL-14 Manufacturer's Warranty | 6 Year |
Description
The Rhin-O-Tuff HD7725/HD7700 3-in-1 PPS Pick, Punch & Stack System will increase your punching capacity without adding labor cost. This system consists of the HD7725/HD7700 Ultima Heavy Duty Punch, the APES-14 Automatic Ejector and Stacker, the PAL-14 Piks-A-Lift, and the paper stop switch. The system will offer a ROI (return on investment) in 10 months compared to just a stand alone HD7725/HD7700 electric punch. It is a perfect set up for those that need more production but can't cost justify a fully automatic punching system.
Look at our side-by-side comparison video to see what you can do to enhance the productivity of your existing machines. Just click and view to find out how to save money!
One-Ream Paper Test Time Comparison Video:
1. HD7000 alone
2. HD7000 with a PAL 14
3. HD7000 with a APES 14
4. HD7000 with a PAL 14 and an APES 14
Machine overall foot print is 40" W x 26" D x 24" H.
Rhin-O-Tuff HD7725/HD7700 Ultima Heavy Duty Electric Punch Features:
- The Patented Auto Reverse Feature triggers an auto reversing function to reduce jamming in the punch when an overload detected.
- 14" (356mm) open ended extra capacity die.
- U-View waste tray holds up to 150% more waste than any other tabletop punch and eliminates troublesome overfills.
- New Diagnostic Display Lights give indications of important machine conditions.
- Rated up to 55 sheets * or 110 pages of 20 pound (80gsm) paper. The number of sheets depends on the paper weight and punch pattern used. *Note: See List
- An automatic and manual reverse feature which provides extra insurance to reduce costly downtime & expensive service calls due to overload jams.
- 25 cycles per minute.
- Punch up to 5 plastic Mylar sheets regardless of hole pattern (depending on Mylar mil thickness).
- Patented "QCDS", Quick Change Die System.
- All punch pins easily disengage.
- "Accu-Set" paper adjustment knob for fine adjustments on odd paper sizes.
- Smooth, Quiet, Power on Demand Operation.
- Choose the Standard Foot Pedal and Palm Switch or the optional Versa Switch.
- The HD7725/HD7700 has more than 20 interchangeable dies available with 12 standard hole patterns. Including: Comb, Wire-O® Twin Loop, Plastic Coil, GBC VeloBind®, and 3 Hole Loose Leaf. (Each die is priced separately).
- Extremely durable all metal construction.
- Extra high capacity Waste Chip Tray with Clear View Access. No sensors needed.
- UL & CE Certifications
- 6 Year Manufacturer's Warranty
Onyx APES-14 Automatic Paper Ejector & Stacker Features:
- Punches, ejects & stacks in one operation
- Extends the useful life of your existing equipment
- Add the APES-14 to your HD7000, HD7000 Plus or HD7725/HD7700 to create a semi-automatic punching system
- Increases punching output without a large capital outlay
- Increase productivity up to 33% without the hiring of additional help
- Handles all paper sizes up to 14" x 14"
- Punch cover stock and tabs with ease
- Can be used in standard mode for those odd jobs while still attached
- Easily installed on existing equipment
- Fast, accurate and reliable
- CE approvals
- 6 Year Manufacturer's Warranty
Rhin-O-Tuff Onyx PAL-14 Piks-A-Lift Features:
- Uses paper sizes from 5-1/2" x 5-1/2" up to 14". Including tabs.
- Fits on any vertical OD or HD series punching machines.
- Able to combine with an existing APES-14 Auto Paper Ejector & Stacker to create a semi-automatic punching system.
- Provides average paper count accuracy of + or - 1 sheet for each lift.
- Variable paper lift thickness.
- CE approvals
- 6 Year Manufacturer's Warranty
Videos
Rhin-O-Tuff HD7725/HD7700 3-in-1 PPS Pick Punch & Stack System
Transcript:
The Rhin-O-Tuff HD7700 3- in-1 PPS Pick Punch & Stack System has been designed to increase your punching capacity without adding any additional labor cost to your punching operation. The system consists of the HD7700 Ultima heavy duty punch, the PAL-14 pick a lift, the APES-14 automatic ejector and stacker and a paper stop switch. The 3- in-1 PPS system will increase productivity by 60% compared to operating an HD7700 electric punch alone, and will provide a return on investment in just 10 month...
Read More
The Rhin-O-Tuff HD7700 3- in-1 PPS Pick Punch & Stack System has been designed to increase your punching capacity without adding any additional labor cost to your punching operation. The system consists of the HD7700 Ultima heavy duty punch, the PAL-14 pick a lift, the APES-14 automatic ejector and stacker and a paper stop switch. The 3- in-1 PPS system will increase productivity by 60% compared to operating an HD7700 electric punch alone, and will provide a return on investment in just 10 months.
Let's watch the system in action. You will see it picks a lift of paper, punches the paper, ejects it, and stacks it all, in one motion. Here's the breakdown of its efficiency. The pick a lift module allows for the operator to set a thickness of paper that is most efficient for the punch assuring a consistent lift of paper every time, not too many and not too few. Each time he punches, a new lift of paper is ready for him to pick up, speeding up his overall productivity. The operator drops the lift of paper into the punch, where gravity is jogging the paper into the dime. The operator simply slides the lift of paper to the right, where the paper stop switch automatically cycles the punch, allowing the operator to immediately reach for the next lift of paper next, the automated ejector stacker module takes over once the lift of paper is punched, it is ejected and stacked, automatically speeding up the process as well.
Because of the unique modular design of the Rhin-O-Tuff line, you can turn your existing Rhin-O-Tuff punch into a 3- in-1 PPS system by simply adding the automated paper adjuster stacker module and the pick a lift module, the HD7700 three in one PPS system increases your punching capacity without adding additional labor costs. It's perfect for those that need more production but can't cost justify a fully automatic punching system.
