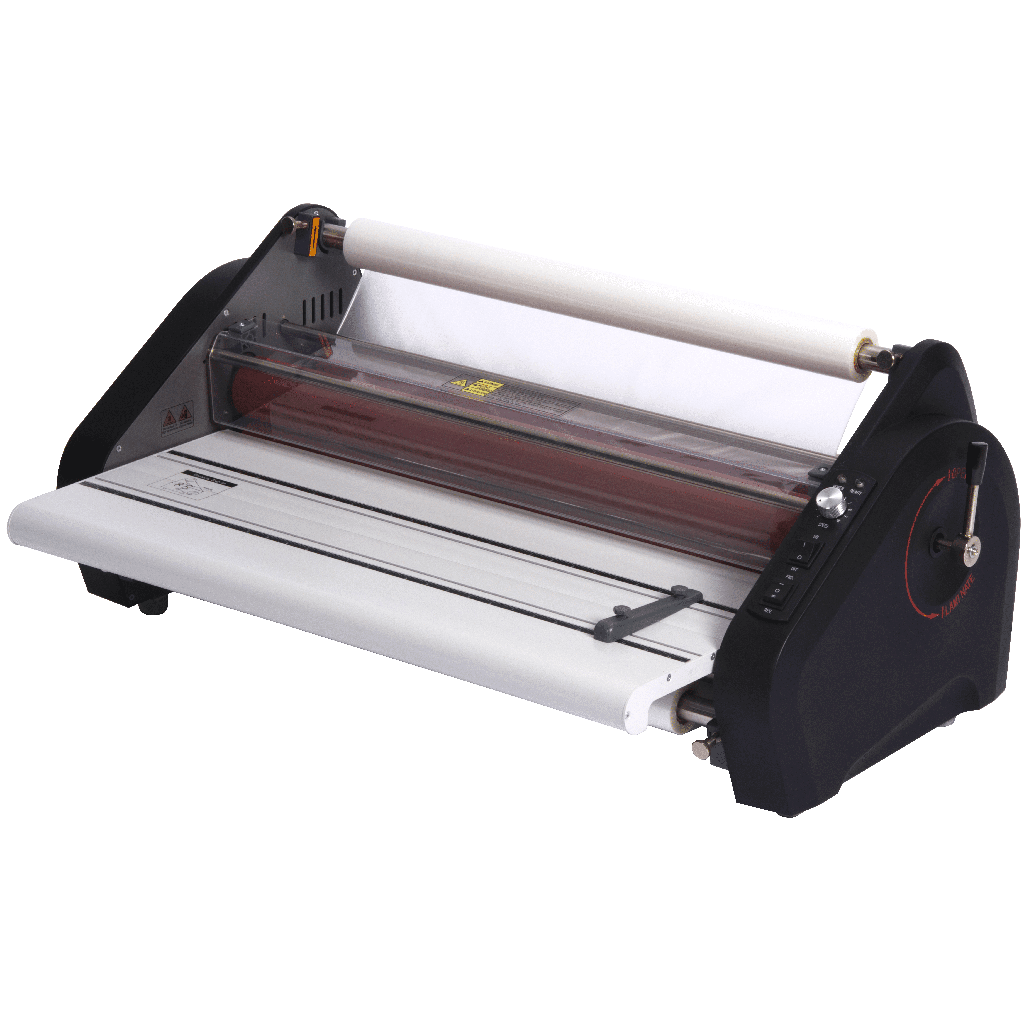

Phoenix 2700-DH 27" Educator School Laminator with Dual Heat
• Variable Speed & Heat Settings
• 1" or 2.25" Core Films
• 6 Feet / Minute Maximum Speed
|Manufacturer Part Number||2700-DH|
|Compatible Supplies & Accessories||1.5 Mil School Thermal Laminate Film (1" or 2.25" Core, 27" Max Width)
3 Mil Thermal Laminate Film (1" or 2.25" Core, 27" Max Width)
|Power Voltage||13.3 Amps, 120 V, 60 Hz
Heavy Duty 24 Volt DC Motor
|Dimensions||36.5" W x 16" H x 18" D|
|Certifications||cTUVus (Same Standard as UL)|
|Manufacturer's Warranty||1 Year Limited|
|Digital Laminating (Low-Temp)||No|
|Speed||0-6 Feet / Minute (Adjustable)|
|Heating Type||Silicone Heated Laminating Rollers|
|Warm-Up Time||25-30 Minutes|
|Maximum Mil Thickness||3 Mil|
|Temperature Range||260° F (127° C)|
|Maximum Roll Length||5.9" Roll Diameter|
|Maximum Width||27" Wide|
|Core Size||1" or 2.25" Core|
|Capable of Mounting||No|
|Capable of Foiling||No|
|Stand-By / Power-Save Mode||Sleep Mode with 175° Hold Temperature after 1/2 Hour Idle|
|Auto-Shut Off||Auto Shut-Off after 2 Hours Idle|
|Actual Machine Dimensions||37"" x 16"" x 18""|
|Actual Machine Weight||120|
|Shipping (Web) Weight||160 lbs|
|Product Weight (lbs)||120|
|Shipping Information||Shipping Dimensions: 43" W x 22" H x 21" D
This item ships via Truck (Common Carrier). It is the responsibility of the Consignee (receiver) to remove the product from the truck. If you do not have a loading dock or any other means to lift the freight off the truck and/or you need assistance bringing the product inside of your location please call (866) 537-2244. Click here for full details.
Specially manufactured for those in the education system (K12, high schools, and colleges), the Phoenix 2700-DH is a premium new roll laminating machine that offers a professional dual-heat finish with silicone rollers that offer even and consistent heat. These premium heating components make it a popular choice for other users as well, including print shops and businesses.
The Phoenix 2700 DH laminator is compatible with 1.5 mil, 1.7 mil, and 3 mil lamination film rolls with either a 1" or 2.25" core. It has a 27" roll width allowance, so can handle all of your various document laminating needs, including even signs, posters, and banners. Adjustable supply roll tension gives you more control, while an advanced clear polycarbonate safety shield keeps any user protected. The feeding tray has a paper guide to help assist with your loading and ensure accuracy, and the unique reverse feature helps in case of mis-feeds. Adjustable speed control lets you slow down or speed up the laminating process, allowing you to customize it for your specific application; it can run up to six feet per minute. Sometimes called the 27" Educator, or even the Budget 2700, this school roll laminator is perfect for those looking to create quality lamination on a variety of items, all while on a budget.
- Power-Saving Features - Sleep mode automatically activates after 1/2 hour of inactivity, keeping the laminator at a holding temperature of 175° F.
- Automatic Shut-Off - After 2 hours of inactivity, the laminator automatically shuts off.
- Dual Heat Silicone Rollers - Silicone rollers provide even, continuous heat for a clear, continuous lamination.
- Reverse Function - For easy roller cleaning and jam removal.
- Roll Tension - The supply roll tension is adjustable for more control.
- Chain and Sprocket Drive - Heavy-duty drive is durable, providing years of worry-free operation.
Frequent Asked Questions
No; since cold laminates have a liner, only laminators with a take-up can handle cold laminating and the Phoenix 2700 does does not have one.
