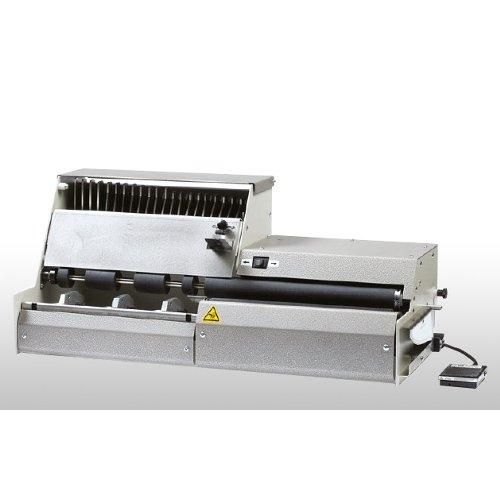

PBS 1650 Total Koil Binder - Model A (.2475 / 3:1 pitch coil)
- 0
- 1
Overview
Bind bigger books with PBS 1650 TKB Total Koil Binder. This table-top binder can bind books with coil diameters from 6 mm through 50 mm or equivalent to 1/8" to 1-7/8" book thickness. The Type 1 model is for books with a thickness of .2475" with a 3:1 pitch. Two(2) modes of coil insertion accommodate specific book thickness; (1) basic dual roller inserts coils with diameters up to 15mm while (2) book shaping spine formers enable the operator to insert diameters up to 50mm.
Specifications
Item # | 04GTWTKBA |
---|---|
Manufacturer | Plastikoil |
Manufacturer Item # | PBS 1650 TKB |
Pitch | Type 1 – for .2475" / 3:1 Pitch Type 2 – for 4:1 / 3:1 / 2.5:1 Pitch |
Binding Thickness | 3.5 - 41.0 mm |
Binding Element Ø | 6 - 50 mm |
Min. Binding Width | 152.5 mm (with Spine Formers) and 25 mm (with Rollers) |
Max. Binding Width | 30.5 mm (with Spine Formers) and 990 mm (with Rollers) |
Binding Operation | Electric insert |
No. of Books Output per hr | 350 |
Time Required for Diameter Change | 5 min |
Format Change Without Diameter | 2 min |
Machine Weight | 24 kg |
Compatible Supplies | Plastic Spiral Binding Coils |
Machine Packing Dimensions (L x W x H) | 710 x 320 x 305 mm |
Power Requirement | 220 V Single Phase and 110 V Single Phase |
Description
Bind bigger books with PBS 1650 TKB Total Koil Binder. This table-top binder can bind books with coil diameters from 6 mm through 50 mm or equivalent to 1/8" to 1-7/8" book thickness. The Type 1 model is for books with a thickness of .2475" with a 3:1 pitch. Two(2) modes of coil insertion accommodate specific book thickness; (1) basic dual roller inserts coils with diameters up to 15mm while (2) book shaping spine formers enable the operator to insert diameters up to 50mm. Vertical book placement can accommodate tabs or wider covers. Foot pedals offer more control and precision during the binding process. The machine works fast with its capacity to bind books up to 350 books per hour. It comes complete with a set of 21 Spine Formers and Photo Instructions to guide you through the process. Whatever the thickness, PBS 1650 TKB Total Koil Binder will take care of it.
Features:
- No tools required for size changeovers.
- Accommodates coil diameters from 6 mm to 50 mm without the need to change crimp heads.
- Min/Max binding edge 5.5" - 17" (14 cm - 43 cm)
- Easy to follow decals guide the operator through setup.
- Removable off-cut tray makes accumulation and disposal of off-cuts neat and tidy.
- Available with electric or pneumatic actuation.
- Foot pedal operated.
- Simple dial adjustments enable you to setup, cut and crimp coil diameters from 6 mm to 50 mm with the same crimping heads!
- Longer crimp achieved as the coil diameter increases reducing the risk of coil unwinding from the larger punch holes.
- Large top surface doubles as useable workspace.
- Easily integrated with most coil insertion equipment.
