Martin Yale 1811 Automatic Paper Folding Machine
- 0
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
Overview
If you're looking for the best paper folding machine for your medium- to high-volume church, school, or business folding requirements, then the Martin Yale 1811 paper folder is a great choice. This best-in-class automatic folding machine will feed, fold, and collect your folded pages in a neat stack without any work from your operator. It is easy-to-use; just set the fold type, place your pages into the feed tray, and press start. You can walk-away and perform other tasks while the 1811 folder does the work for you.
The 1811 folder from Martin Yale and Bindingsis has seven (7) standard fold types preset for quick setup and allows for customization of folds with the two-step folding bars. Depending on the fold type and paper size, the 1811 can run at speeds up to 12,000 sheets per hour, blowing manual-folding completely out of the water. Ready to improve the efficiency and production rate of your folded invoices, mailers, letters, and more? Buy the Martin Yale 1811 paper folder online today.
Specifications
| Item # | 04MY1811 |
|---|---|
| Manufacturer | Martin Yale |
| Manufacturer Item # | 1811 |
| Standard Fold Types | 7 Standard Folds: Letter Fold, Half Fold, Z-Fold, Double Parallel Fold, Gate Fold, Engineering Fold, Church Fold |
| Maximum Speed | 12,000 Sheets per Hour |
| Paper Size Range | 4" W x 4" H up to 11" W x 17" H (A3, A4, A5) |
| Paper Weight Range | 60gsm up to 240gsm / 16lb Bond up to 135lb. Bond |
| Maximum Manual Paper Feed | 5 Sheets (Stapled or Un-Stapled) |
| Maximum Feed Tray Capacity | 300 Sheets |
| Adjustable 1st Fold Range | 2" to 11.5" |
| Adjustable 2nd Fold Range | 1.5" to 5.75" |
| Automatic Fold Table Setup | No |
| Automatic Shut Off | Yes |
| Product Category | Print Finishing / Paper Handling / Paper Folding Machines |
| Ideal Users | Mailrooms, Churches, Schools, Businesses, Associations |
| Electrical | 115/230V |
| Dimensions | 19.5" D x 41" W x 14" H |
| Warranty | 180 Day Manufacturer's Warranty (Extended Warranties Available) |
| Weight | 81 lbs. |
| Shipping Method | UPS |
Description
The 1811 paper folding machine fills the gap between the larger Martin Yale folders and the smaller desktop models that we offer. It handles paperweight from 16lb. bond to 135# Offset (60 gsm to 240 gsm) and operates at a speed of up to 12,000 sheets per hour. The 1811 folds sheet sizes from 5.0″ L x 5.0″ W to 17.0″ L x 11.0″ W with an adjustable 1st fold range of 2″ to 11.5″ and 2nd fold range of 1.5″ to 5.75″, allowing for customized folds.
Key Features:
Creates seven different fold types: Letter, Z-fold, Half, Double-Parallel, Gate, Engineering and Church fold
Automatically feeds, folds, and collects a stack of documents
- Operates at a speed of up to 12,000 sheets per hour
- Folds sheet sizes from 5.0″ L x 5.0″ W to 17.0″ L x 11.0″ W
- Handles paper weight from 16lb. bond to 135# Offset, 60 gsm to 240 gsm
- Feed table capacity can hold up to 300 sheets of 20 lb. bond
- Will fold stapled sets of up to 5 sheets through the manual bypass
- Adjustable 1st fold range of 2″ to 11.5″
- Adjustable 2nd fold range of 1.5″ to 5.75″ allowing for customized folds
- Large rubber rollers provide consistent paper feeding
- Fully enclosed, manually adjusted fold tables for quieter operation and improved operator safety
- Manual set up for fold tables
- Durable conveyor belts create easy-to-handle, fanned stacks
Videos

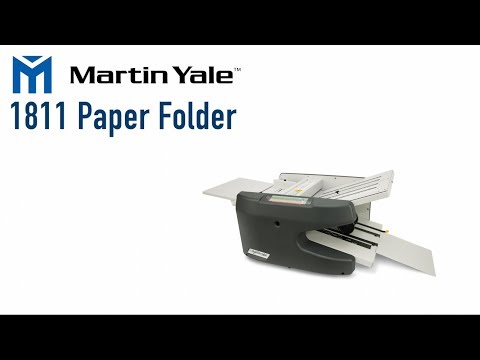

Martin Yale 1811 Paper Folding Machine
