MBM GoCrease 3000 12.6" Manual Creaser & Perforating Machine
- 0
- 1
- 2
- 3
- 4
Overview
Specifications
| Item # | 04MBMGOCR3000 |
|---|---|
| Manufacturer | MBM Corporation |
| Manufacturer Part Number | BO0650 |
| Operation | Manual |
| Dimensions | 14.56" W x 18.5" D x 14.17" H |
| Certifications | CE |
| Manufacturer's Warranty | 1 Year Limited Warranty (Excluding Wearable Parts) |
| Size | 12 ⅗” |
| Sheet Size | 12 ⅗” x 17 ⁷/₁₀” [Maximum] |
| Program Memory | None |
| Crease/Perf/Score Type | Creasing, Perforating, Creasing & Perforating |
| Maximum Creases Per Sheet | Unlimited [Dependent on Operator] |
| Crease Width | 0.03" / 0.04" / 0.06" |
| Perforating Teeth per Inch | 9 Teeth / Inch |
| Maximum Paper Weight [Creasing] | 400 gsm [or equivalent] |
| Maximum Paper Weight [Perforating] | 250 gsm [or equivalent] |
| Creasing Distance | Unlimited [Dependent on Operator] |
| Creasing Pressure Style | Anvil Style Pressure |
| Perforating Pressure Style | Anvil Style Pressure |
| Pre-Programmed Memory Settings | None |
| Product Weight (lbs) | 23 |
| Shipping Weight (lbs) | 27 |
Description
With the MBM Corporation GoCrease™ 3000 you can achieve high-quality and precise anvil-style creasing in three widths, as well as create tear-off applications with a nine tooth perforating blade. The creasing channel widths let you choose the best option for different paper types (either 0.03", 0.04" or 0.06"), so you can help prevent tearing and breaking while allowing for the easiest after-crease folding. It works well with paper weights between 80 to 400 gsm for creasing, or 80 to 250 gsm (or equivalent) for perforating. A maximum creasing and perforating width of 12.6" will handle the most popular paper sizes for offices, while a large working table creates a stable base for sheets up to 17.7" long. This entry level creasing and perforating machine is simple to use with a comfortable handle that requires minimal strength to achieve a clean finish. The side guide wheel is quickly adjustable and the scale is very accurate, so you can place creases and scores precisely where they are needed. Because the side guide features a thumb wheel with angled adjustment, you can even work with skewed paper. If you are in need of a beginner creasing and perforating machine with added versatility, then the MBM GoCrease™ 3000 may be the right choice for you.
Videos

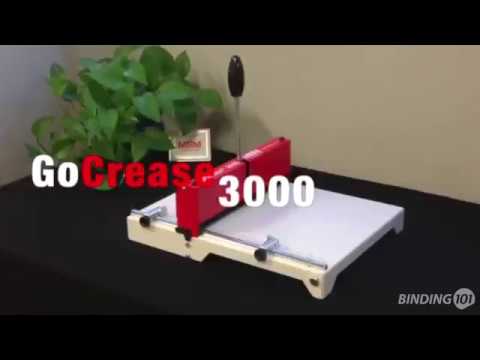

How to Use the GoCrease 3000 Creasing & Perforating Machine
The GoCrease 3000 will produce 3 different channel creasing widths, as well as a perforation option. Once aligned, simply place your paper underneath the creasing bar and pull down the handle to crease.
To change the crease width, unlock the cover and pull out the ba... Read More
The GoCrease 3000 will produce 3 different channel creasing widths, as well as a perforation option. Once aligned, simply place your paper underneath the creasing bar and pull down the handle to crease.
To change the crease width, unlock the cover and pull out the bar. There is a different size on each side of the bar, including a lower perforation, as well as point 06 inch, point 04 inch, and point 03 inch crease width.
To switch from creasing to perforating, a few steps need to be taken. First, unscrew the handle to remove it. Then remove the cover by unscrewing the two locks on top. Remove the perforating knife carefully.
Now loosen the screws in the crease base. Release the knife, and exchange. Replace the screws to secure it in place. Put the cover back on, and replace the top locks. Then screw in the handle. You’re ready to perforate.
