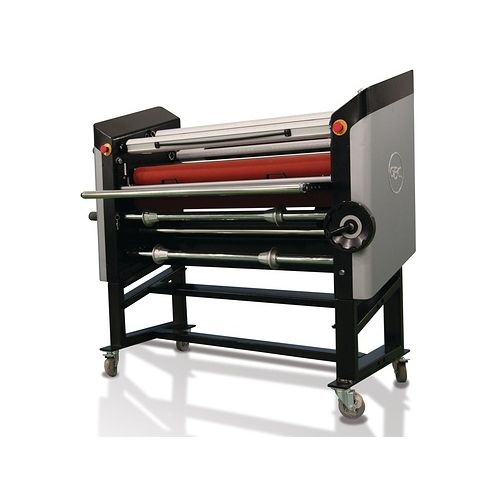

GBC Spire III 64T 64" Wide Format Thermal Roll Laminator and Accessories
230.21 13440.14 4

GBC Spire III 64T 64" Wide Format Thermal Roll Laminator and Accessories

Brand: GBC
  • Simple, intuitive control panel with LED pressure readout
  • Hand crank for opening and closing rollers provides an infinite choice of settings
  • Deep feed table makes feeding larger sheets effortless
  • 20 feet per minute laminating capability
  • Oversize / Truck shipping
Starting At:

$13,440.14

Choose Below
SWIPE FOR MORE IMAGES
  • 0
  • 1
Product Name Item Number Price Qty
GBC Spire III 64T 64" Wide Format Thermal Roll Laminator - 1737175 04GBCSIII64T
$13,440.14
Optional Unwind / Rewind for GBC Spire 64T III Laminator 04GBCSIII64UR
$383.68
64" Auto Grip Supply Shaft Assembly for Spire III 64T 04GBC1737194
$230.21
64" Multicore Supply Shaft Assembly for Spire III 64T 04GBC1737197
$399.88

Overview

The GBC Spire III 64T 64" Wide Format Thermal Roll Laminator runs at a maximum speed of 20 feet per minute with 4" heat rollers. It is featured with up to 64" wide laminating and mounting capabilities. The GBC Spire III 64T is easy-to-use with a user-friendly control panel and auto grip, easy-load supply shafts for no-hassle film loading.

Specifications

Item # 04GBCSIII64T-GRP
Manufacturer GBC
Operating Speed Up to 20 fpm (6 mpm)
Max Temperature 300° F / 149° C
Max. Mounting Thickness 2" (50 mm)
Max. Film Width 64" (162.5 cm)
Dimensions 32.1" D x 81.9 W x 62.2" H
Unit Weight 902 lbs 410Kg
Shipping Weight 1166 lbs. (530Kg)
Electrical Requirements 208 - 240 V, 60Hz single phase, 26 Amps (U.S Models)
U.S. Receptacle NEMA 6-50

Description

The GBC Spire III 64T 64" Wide Format Thermal Roll Laminator runs at a maximum speed of 20 feet per minute with 4" heat rollers. It is featured with up to 64" wide laminating and mounting capabilities. The GBC Spire III 64T is easy-to-use with a user-friendly control panel and auto grip, easy-load supply shafts for no-hassle film loading. Designed with an eye for increasing versatility, a 2" mounting gap allows for mounting of thicker substrates while optional unwinds and rewinds and roll-to-roll capabilities can be easily added later. The Spire III 64T is equipped with a deep feed table for feeding larger sheets, hand crank for opening and closing rollers, and foot pedal for hands-free operation. The independently controlled upper and lower heat rollers allow for running multiple thermal film gauges and PSA films concurrently. This GBC Spire III 64T 64" Wide Format Thermal Roll Laminator is backed by a 90-day manufacturer's warranty.

Features:

  • Simple, intuitive control panel with LED pressure readout
  • Hand crank for opening and closing rollers provides an infinite choice of settings
  • Deep feed table makes feeding larger sheets effortless
  • 20 feet per minute laminating capability
  • Foot pedal for hands-free operation
  • Up to 64" wide laminating and mounting capabilities
  • Independently controlled upper and lower heat rollers allow for running multiple thermal film gauges and PSA films concurrently

Note: Refer to the nomenclature plate located on the rear of the laminator for the specific electrical rating applicable to the unit.
