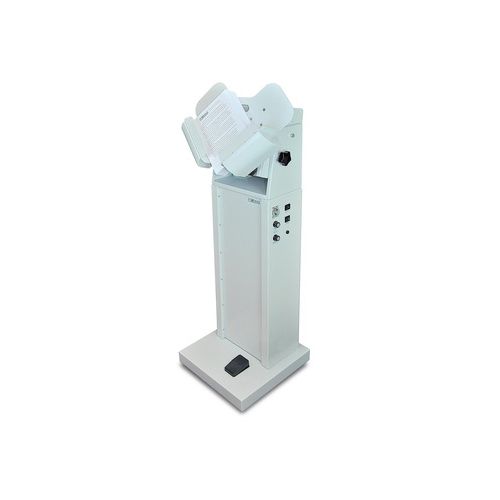

Formax FD404A1 Freestanding Air Paper Jogger
- 0
- 1
- 2
Overview
The Formax FD 404A1 Single-Bin Paper Jogger provides quick and easy alignment for a wide variety of paper sizes up to 12" x 18". It offers variable vibration speed and air pressure controls to reduce jogging time, allowing press sheets and digital printouts to be air-dried immediately.
Specifications
Item # | 04FXFD404A1 |
---|---|
Manufacturer | Formax |
Manufacturer Part Number | FD 404A1 |
Variable Vibration Speed | Up to 3,000 vpm |
Variable Air Control | Up to 29,000 rpm |
Bin Size | 3.75” D x 20.375” W |
Media Size | 5” x 7” Min - 12” x 18” Max |
Sheet Capacity | Up to 940 sheets 20# |
Dimensions | 21” W x 18” D x 54” H |
Weight | 100 lbs. |
Voltage | 110V/120V, 50/60 Hz |
Safety Certifications | CE Approved |
Description
The Formax FD 404A1 Single-Bin Paper Jogger provides quick and easy alignment for a wide variety of paper sizes up to 12" x 18". It offers variable vibration speed and air pressure controls to reduce jogging time, allowing press sheets and digital printouts to be air-dried immediately.
The FD404A1 allows operators to choose foot-pedal operation for two-handed loading and unloading. Its V-shaped jog bin allows for jogging a criss-cross stacked pile of papers, while the vertical-tohorizontal tilt feature helps keeps large paper stacks from bending. With a capacity of up to 940 sheets and rugged all-metal construction, the FD 404A1 is an ideal piece of equipment for any print shop.
Features:
- Align, Dry, Remove Static in One Step: The FD 404A1 Air Jogger is ideal for print shops and production houses as it aligns and dries printed sheets in a single process while reducing static electricity
- Foot Pedal Control: Allows for two-handed loading and unloading
- Easy-to-Use Control Panel
- Variable Speed Control: Up to 3,000 vibrations per minute
- Variable Air Pressure Control: Up to 29,000 rpm, reduces jogging time
- Tilting Jog Bin: V-shaped bin adjusts from vertical to horizontal to accommodate various operating requirements, including large format paper stacks, and criss-cross stacked piles
- High Capacity: Jogs up to 940 sheets 20#
- 60-Second Countdown Timer: Capable of unattended jogging
- Operating Modes: Vibrate and Air, Air-only and Vibrate-only
Videos
Formax FD 404A1 Air Jogger Demo Video
Formax presents the FD 404A1 Air Jogger. The FD 404A1 Air Jogger uses both vibration and air to reduce static electricity. Dry digital prints and square forms for further processing. As seen here, when the air is applied, the form separates to enhance the jogging. The A1 control panel includes an adjustable 60 second timer, adjustable vibration, and air flow knobs, a timer on-off switch, and an on-off switch or foot pedal switch. The paper tray is adjustable up or down for best jogging results of different paper weights and sizes. The tray also features rubber padding to reduce vibration noise. To operate, adjust the paper tray, load the paper, and press the power switch to on, then adjust the vibration and air flow. To utilize the timer, set the timer switch to the on position, adjust the timer control, and press the on switch. The jogger will automatically stop when the time runs out. The convenient foot pedal allows for hands free operation. Simply set the control switch to foot pedal, load forms, and step on the foot pedal. Formax FD 404A1 Air Jogger.
