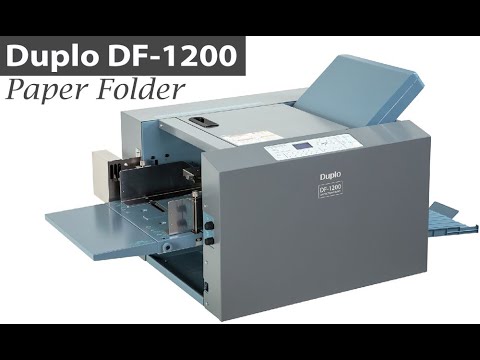

Duplo DF-1200 Automatic Paper Folder (Discontinued)
- 0
- 1
- 2
Overview
Specifications
| Item # | 04DUPDF1200 |
|---|---|
| Manufacturer | Duplo |
| Manufacturer Part Number | DF-1200 |
| Operation | Automatic |
| Compatible Supplies & Accessories | Duplo DF-1200 Side Air Kit (for Large Pages & Heavy Stocks) |
| Power Voltage | 100V - 240V 50/60Hz 1.0 - 0.5A (88W) |
| Speed | Up to 260 sheets per minute* |
| Dimensions | 46.97" x 23.11" x 21.30" |
| Fold Types | Letter Fold, Double Parallel Fold, Gate Fold, Accordian Fold, Single Fold, Double Fold, Cross Fold |
| Minimum Sheet Size | 4.7" x 7.2" |
| Maximum Sheet Size | 12.2" x 18" |
| Accepted Paper Type | Non-Glossy Paper, Glossy Paper |
| Paper Weight | Uncoated: 52.3-157gsm / 14-40 lb. Coated: 73.3 - 157gsm / 19-40 lb. |
| Feed Tray Capacity | Up to 625 sheets |
| Suggested User | Medium Office, Large Office |
| Product Weight (lbs) | 144.4 |
| Shipping Weight (lbs) | 144.4 |
| Shipping Information | This item ships via Truck (Common Carrier). It is the responsibility of the Consignee (receiver) to remove the product from the truck. If you do not have a loading dock or any other means to lift the freight off the truck and/or you need assistance bringing the product inside of your location please call (866) 537-2244. Click here for full details. |
Description
The Duplo DF-1200 Air Suction Paper Folder provides the perfect tabletop solution for folding offset and digitally printed documents. With a production speed of up to 260 sheets per minute, the DF-1200 utilizes Duplo's renowned suction feed technology to handle static build-up in digital print applications and also comes equipped with Optical Double Feed Detection to ensure personalized documents are folded one sheet at a time. Fully automated and quiet in operation, the DF-1200 is ideal for any office environment.
The DF-1200 comes pre-programmed with six standard fold types including single, double, half accordion, letter, accordion and gate – enabling users to fold a wider range of applications at the touch of a button. The DF-1200 automatically detects five of the most popular paper sizes from letter, legal, ledger, half letter and half legal, and sets the pre-programmed fold position without any adjustments required. Users can also create custom fold styles with non-standard paper sizes simply by moving the fold plates via the user-friendly control panel and save them into one of the 20 job memories. The DF-1200 can also reprocess single folded sheets into cross folds.
The DF-1200 features a 625-sheet feed tray capacity and Optical Double Feed Detection to prevent paper jams and protect documents, ensuring reliable feeding at all times. Air separation and suction adjustments can easily be fine-tuned as needed. Other features include built-in sound absorbers for quiet operation, five speed levels, a wireless fold plate, test button, and power save mode. Additionally, an optional Side Air Kit can be added to enhance the feeding of heavy stock and large paper sizes.
Fully automatic and compact in size, the high-speed Duplo DF-1200 Air Suction Paper Folder is perfect for any office or print environment.
Key Features:
- Suction-Feed - The DF-1200 utilizes Duplo’s renowned suction feed technology to handle static build-up in digital print applications.
- Optical Double Feed Detection - to ensure personalized jobs are folded one sheet at a time.
- Six Preset Fold Types - The DF-1200 comes pre-programmed with six standard fold types, making it easy to fold a wide range of applications at the touch of a button.
- Custom Folds - Users can also create custom fold styles simply by moving the fold plates via the user-friendly control panel.
- Memory - holds up to 20 jobs.
- Delivery Roller - automatically sets paper size. Two tray positions are available for enhanced stacking.
- Side Air Kit - An optional Side Air Kit (not included) can be added to enhance the feeding of heavy stock and large paper sizes.
* Production rates are based upon optimal operating conditions and may vary depending on stock and environmental conditions.
