Duplo DF-1300A Air Suction Tabletop Paper Folder
8600
NewCondition
OutOfStock
Duplo DF-1300A Air Suction Tabletop Paper Folder
We're sorry, but we no longer sell this item.
Below are a few alternative options that may be a great fit for your needs.
If not, please call us at (866) 537-2244 for personalized recommendations.
SWIPE FOR MORE IMAGES
- 0
- 1
Overview
This NEW Duplo DF-1300A Air Suction Tabletop Paper Folder replaces the discontinued DF-1200. It has the same great features with the latter but with the higher folding speed, more job memories to store custom folds, a new 4.3" color LCD control touchpanel as well as standard side air and ultrasonic double feed detection.
Specifications
| Item # | 04DUPDF1300A |
|---|---|
| Manufacturer | Duplo |
| Manufacturer Part Number | DF-1300A |
| Brand Name | Duplo |
| Operation | Electric |
| Power Voltage | 100V - 240V 50/60Hz |
| Speed | Up to 310 sheets per minute |
| Dimensions | 47” x 23.2” x 21.30” |
| Fold Types | Letter Fold, Half Fold, Gate Fold, Accordian Fold, Single Fold, Double Fold |
| Minimum Sheet Size | 4.73” x 7.2” |
| Maximum Sheet Size | 12.2” x 18” |
| Paper Weight | Uncoated paper: 52.3 to 157 gsm/14‐40 lb. | Coated paper: 73.3 to 157gsm/19‐40 lb. |
| Feed Tray Capacity | Up to 625 sheets/64 gsm |
| Product Weight (lbs) | 148.8 |
| Shipping Information | This item ships via Truck (Common Carrier). It is the responsibility of the Consignee (receiver) to remove the product from the truck. If you do not have a loading dock or any other means to lift the freight off the truck and/or you need assistance bringing the product inside of your location please call (866) 537-2244. Click here for full details. |
Description
This NEW Duplo DF-1300A Air Suction Tabletop Paper Folder replaces the discontinued DF-1200. It has the same great features with the latter but with the higher folding speed, more job memories to store custom folds, a new 4.3" color LCD control touchpanel as well as standard side air and ultrasonic double feed detection.
The Duplo DF-1300A is equipped with Duplo's signature air suction feed system that delivers professionally folded documents at a speed of up to 310 sheets per minute. It comes pre-programmed with six standard fold types (single, double, letter, gate, accordion and half accordion) and utilizes both optical and ultrasonic sensors to accurately detect double feeds. Other great features include 30 job memories for custom folds, automatic paper size detection and fold plate setting, 625-sheet feed tray capacity, sound absorbers for quiet operation and more.
Features:
- Air suction feed system ideal for digitally printed output
- High speed folding up to 310 sheets per minute
- 4.3” color LCD touch panel for easy operation
- Six pre-programmed fold styles
- 30 job memories for custom folds
- Automatic paper size detection and fold plate setting
- Optical and ultrasonic sensors for double feed detection
- Side air for feeding heavy stock and large paper sizes
- Built-in absorbers for quiet operation
- 625-sheet (64 gsm) feed tray capacity
Specifications:
- Paper Size: 4.73" x 7.2" - 12.2" x 18"
- Paper Weight: Uncoated paper: 52.3 to 157 gsm/14‐40 lb.
Coated paper: 73.3 to 157gsm/19‐40 lb. (For A4, letter, short grain, single fold, 230 gsm or less can be used.) - Speed: Up to 310 sheets per minute
(Letter size, 81.4 gsm, bond paper, single fold) - Feeding Tray Capacity: Up to 625 sheets/64 gsm
- Paper Quality: Bond, NCR, offset, cover stock, and coated paper
- Folding Modes: Single, double, half accordion, letter, accordion, gate, custom
- Counter: Ascending, descending, and batch mode
- Features: Air suction feed system, optical and ultrasonic double feed detection sensors, sound absorbers, low noise level, wireless plate, five speed levels, test button, power save mode, automatic paper size detection and fold plate setting, and side air.
- Sound Level: 74.3 db
- Feeding Mechanism: Air suction belt
- Custom Fold Memory: 30
- Power Supply: 100V - 240V 50/60Hz
- Power Consumption: 1.0 - 0.5A (88W)
- Dimensions (WxDxH): 47" x 23.2" x 21.30"
- Weight: 148.8 lbs.

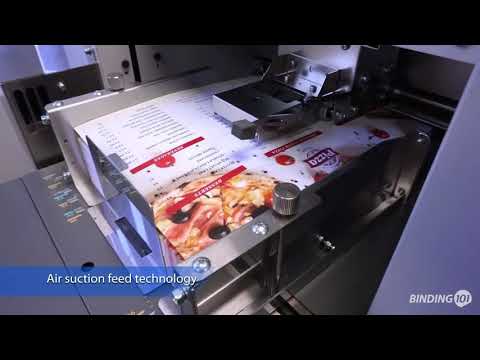

Videos
Duplo DF-1300A Air Suction Tabletop Paper Folder
Transcript:
Watch the Duplo DF-1300A in-action in this video.
Watch the Duplo DF-1300A in-action in this video.
