Fujipla ALM 3222 Automatic Laminator and Trimmer with Stand (Discontinued)
18216.6 NewCondition OutOfStock

Fujipla ALM 3222 Automatic Laminator and Trimmer with Stand (Discontinued)

We're sorry, but we no longer sell this item.

Below are a few alternative options that may be a great fit for your needs.

If not, please call us at (866) 537-2244 for personalized recommendations.

Item #: 04DLALM3222
Brand: Fujipla
  • Speed: Variable speed of up to 68" per minute
  • Warm-Up Time: Approx. 5 minutes
  • Temperature Range: 170-270
  • Maximum Thickness: 20 lb bond - 130lb cover
Call Us
Even though we no longer offer this item, we have a full catalog of products to suit your needs!
Please call us at (866) 537-2244 to find the perfect solution.
SWIPE FOR MORE IMAGES
  • 0
  • 1

Overview

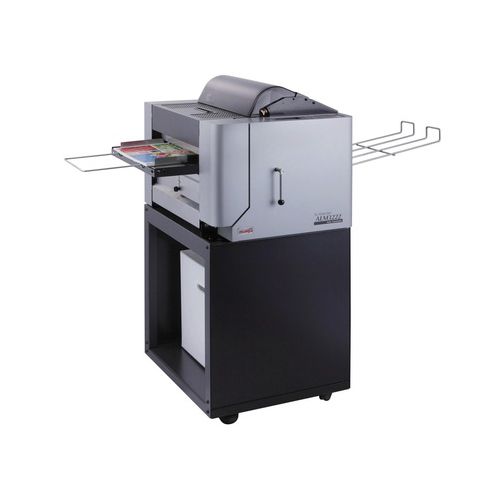

The Fujipla ALM 3222 Automatic Laminator will automatically feed, laminate and trim Digital Prints virtually unattended, freeing you to work on other profitable tasks. This compact automatic laminator is as easy to use as a copy machine and warms up in 5 minutes. Just load from 1 to 200 documents in the automatic feeder and press the start button. Each document is automatically fed into the laminator, laminated with the special lamination film, trimmed to size and then stacked on the collection tray.

Specifications

Item # 04DLALM3222
Manufacturer Fujipla
Manufacturer Part Number ALM3222
Included Supplies & Accessories Stand with film waste box
Printed operations manual
Compatible Supplies Uses ALM Exclusive ASAP Roll Films
Power Voltage AC 120V (60Hz)
Speed Variable speed of up to 68” per minute
Manufacturer's Warranty 180 Day Manufacturer's Warranty (Extended Warranties Available)
Operation Electric
Double-Sided Lamination Yes
Single-Sided Lamination Yes
Thermal Laminating Yes
Speed Variable speed of up to 68” per minute
Warm-Up Time Approx. 5 minutes
Temperature Range 170-270°F
Maximum Thickness 20 lb bond - 130lb cover
Shipping Weight (lbs) 132
Product Weight (lbs) 130

Description

The Fujipla ALM 3222 Automatic Laminator will automatically feed, laminate and trim Digital Prints virtually unattended, freeing you to work on other profitable tasks. This compact automatic laminator is as easy to use as a copy machine and warms up in 5 minutes. Just load from 1 to 200 documents in the automatic feeder and press the start button. Each document is automatically fed into the laminator, laminated with the special lamination film, trimmed to size and then stacked on the collection tray.

The Fujipla ALM 3222 fully automatic laminator is the next generation in automatic laminating, the ALM 3222 offers upgrades from the original ALM 3220. Upgrades include:

  1. Heated rollers for crystal clear scratch free laminations
  2. Micro adjustable side trimmers for precise flush cutting or exact border encapsulation
  3. Runs 13" wide sheets with 12.6" wide film coverage
  4. Built in long mode operation for banner length prints
  5. A 25% increase in speed over the ALM 3220

Main Features :

  • Small Foot Print – less than 4 sq. ft.
  • Portable – locking roller casters
  • 115 Volt, 15 amp service with economy mode
  • Ultra quick warm up of less than 5 minutes
  • Virtually Unattended Operation
  • Digital Sheets sizes: 13”x19”, 12”x18”, 11”x17”, 11”x 8.5”*
  • Operating with built in long mode allows sheets of infinite length to be laminated
  • Automatically feeds up to 200 sheets
  • Monthly duty: 40,000 letter size sheets
  • Laminates copy paper or as heavy as 130# cover stock
  • Trimming Methods 2 modes – Flush trim or edge seal for all 4 sides of the print
  • Operation Panel LCD display for start, stop, temperature, speed, and leading and trailing trim settings
  • Automatic two side lamination or short one side work
  • Automatic Flush or Sealed edge trim option micro adjustable for precise flush cut or custom encapsulation
  • ALM Exclusive ASAP Roll Film - Manufactured for digital print technology with anti-static properties
  • Included Accessories Stand with Film waste box, Printed operations manual and CD
  • Manufacturers Warranty: 1 year parts and 90 days labor
  • UL Approved

*Note: These are the only sheet sizes that are supported, The side trimmers will only cut 11", 11-1/4", 12" & 12-1/4" width sheet sizes.

Specifications:

  • Model No.: ALM 3222
  • Laminating Speed: 20"- 68"/min.
  • Temperature Range: 170-270°F
  • Ultra Fast Warm-Up Time: Approx. 5 minutes
  • Thickness of Objects: 20 lb bond - 130lb cover
  • Paper Feeding Capacity: 200 sheets, Adjustable Paper Guide
  • Applicable Sizes: Letter Paper Size 8.5" x 11"; Paper Size 13" x 19"; Paper Size 12" x 18"; Tabloid Paper Size 11" x 17"
  • Trimming Methods: (2 modes) Flush trim or edge seal for all 4 sides of the print
  • Operation Panel: LCD display for start, stop, temperature, speed and trim settings, leading and trailing edge side cuts are adjustable
  • Other Features: Laminated sheet counter; Film tension control, Roller gap lever, Paper thickness adjustment lever, Automatic stop at end of film, Power saving mode, Emergency stop function
  • Power Consumption: 900W
  • Power Supply: AC 120V (60Hz)
  • Net Weight: Laminator: 130 lbs. Stand: 48.5 lbs.
  • Included Accessories: Stand with film waste box, Printed operations manual
