Model 5500 TLC 4 ⁷/₁₆" ID Card Mini Pouch Laminator
- 0
- 1
- 2
- 3
- 4
Overview
Specifications
Item # | 04TB5HDPL |
---|---|
Manufacturer | Thermal Laminating Corporation |
Manufacturer Part Number | 5500TLC |
Dimensions | 8" W x 7" D x 4.38" H |
Certifications | UL |
Manufacturer's Warranty | 5 Year Limited |
Country of Manufacture | United States |
Compatible Equipment | Laminating Pouches (Up to 4⁷/₁₆" Wide and 10mil Thick) Pouch Carriers (Up to 4⁷/₁₆" Wide) |
Operation | Electric |
Speed | 33" / Minute |
Heating Type | Roller (4) |
Warm-Up Time | 5 Minutes |
Maximum Mil Thickness | 10 Mil |
Temperature Range | Fixed |
Adjustable Temp | No |
Programmable | No |
Reverse Function | No |
Shipping Weight (lbs) | 7 |
Description

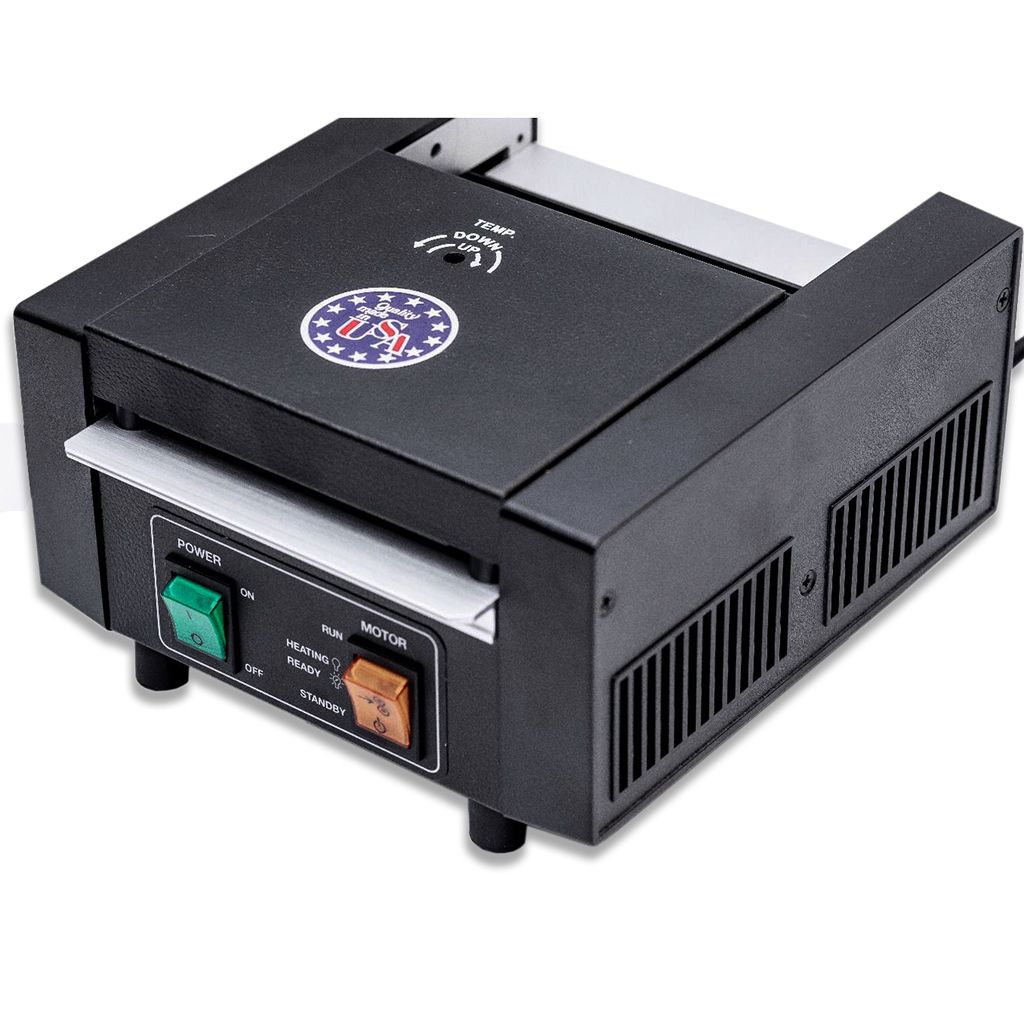

"Robust", "powerful", "gets the job done"... these are just a few of the most common comments we receive from customers using the Model 5500 TLC mini pouch laminator. Manufactured in the USA by Thermal Laminating, this small laminator comes standard with a 5 year manufacturer's warranty. This machine features a 4 ⁷/₁₆" wide feed opening, which makes it perfect for businesses who only need to laminate small sheets, like employee ID cards, note cards, luggage tags, business cards, and more. It features a fixed speed of 33" per minute and a fixed heat, along with four silicone rollers to offer consistent heat from end-to-end. Pair this machine with professional lamination pouches up to 10mil to protect all kinds of small documents from tears, bends, spills, and more.
How to Use the 5500 TLC
Always refer to the manufacturer-created owner manual for detailed operating instructions. The following steps have been simplified.
- Plug in the machine, press the power switch to 'on', and press the direction switch to 'forward'.
- When the 'ready' light turns on, place your document into a laminating pouch, and slide that pouch into the feed with the pre-sealed end first.
- When done with your project, press the motor switch to 'standby'. When the machine cools, turn off all switches.
