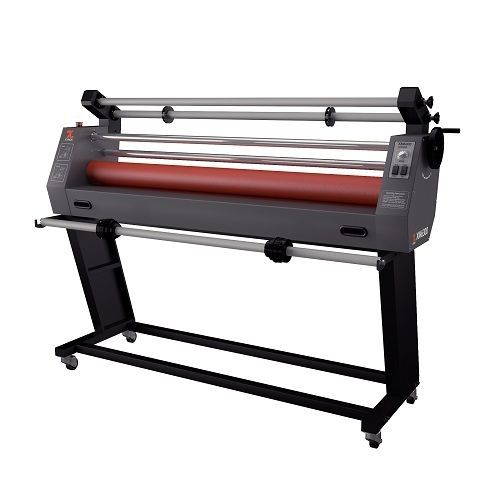

Xyron XM6300 63" Professional Cold Roll Laminator [100108]
- 0
- 1
- 2
- 3
Overview
The Xyron XM6300 offers a more affordable alternative to the time-consuming hand finishing required with rollers and squeegees. With this innovative machine, even the smallest shops can accomplish larger jobs with confidence and clarity. This 63" cold roll laminator lets you apply lamination, adhesive, or both without the need for heat or electricity. It even lets you mount onto boards up to 1" thick. With the included stand, the Xyron XM6300 laminating machine sits at a comfortable working height.
Specifications
Item # | 04XYRON6300 |
---|---|
Manufacturer | Xyron |
Manufacturer Part Number | 100108 |
Included Supplies & Accessories | Stand with Casters |
Power Voltage | 110 v .4amp |
Power Consumption | 38W |
Speed | 13ft /min |
Dimensions | 79.8” x 21.7” x 54.7” |
Manufacturer's Warranty | 1 Year Warranty |
Operation | Electric |
Cold Laminating | Yes |
Speed | 13ft /min |
Maximum Width | 63” |
Roller Diameter | 4.5" |
Variable Roller Gap | Up to 1" |
Core Size | 3" Core |
Capable of Mounting | Yes |
Maximum Mounting Thickness | 1" Boards |
Mounted Onto Stand | Yes |
Cutter | Built-in |
Tension Adjustment | Single Knob |
Pressure Adjustment | Single Wheel |
Liner Rewind | Chain Drive |
Unwinds | Top/Bottom |
Shipping Weight (lbs) | 325 |
Product Weight (lbs) | 322 |
Actual Machine Dimensions ( L x H x W) | 86" x 28" x 25.25" |
Shipping Length | 86" |
Shipping Width | 25.25" |
Shipping Height | 28" |
Actual Machine Weight | 437 lbs. |
Shipping Weight | 437 lbs. |
Description
With the Xyron XM6300 professional cold laminating and mounting machine, you can achieve beautiful results. This machine works with a variety of pressure sensitive laminations and adhesives, letting you work with documents as wide as 63". It can also mount with boards up to 1" thick. Included is a stand that brings the machine to a comfortable working height.
If you are looking for an affordable, easy to set up, low-maintenance wide format cold laminator, then the Xyron Pro XM6300 is the perfect match for you.
- 13 feet per minute laminating speed
- Laminate document sup to 63" wide
- Mount prints on boards up to 1-inch thick
- Convenient refills for quick and easy changes between applications
- Edge-to-edge application of laminate and high tack adhesive
- Aggressive adhesive, coupled with high pressure rollers, improves both transfer and bonding qualities
- Cold lamination will allow for trimming right up to and even through documents without any peeling or lifting
- Easy to set up
- Variable speed
- Chain drive rewind
- Forward and reverse
- 2 Unwind shafts
- 1 liner rewind
- Single pressure adjustment
- Tension adjustments
- Variable roller gap to 1"
- Accommodates 3" core film
- Machine stand with casters included
