Therm-O-Type Manual Foil-Tech Foil Fuser
9598 NewCondition InStock

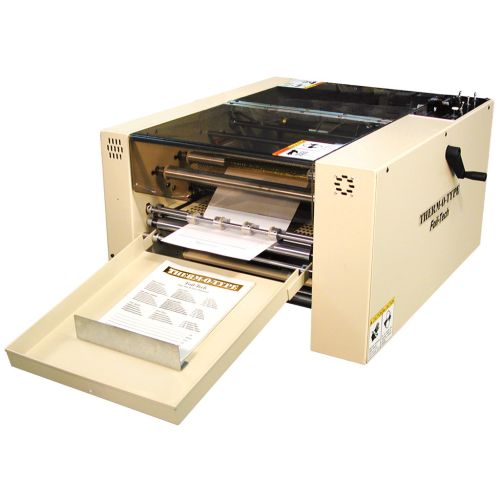

Therm-O-Type Manual Foil-Tech Foil Fuser

Item #: 04TOTMANUAL
Brand: Therm-O-Type
  • Fast an easy manual foil fusing
  • Features a 14
  • Accepts 24 x 500' foil rolls with 1" core
  • Speed: 1,500 sheets per hour
  • Price Match Guarantee!
  • Oversize / Truck shipping
  • Brand New
  • In Stock

$9,598.00

SWIPE FOR MORE IMAGES
  • 0
  • 1
  • 2
  • 3
  • 4
video

Overview

Designed for smaller print shops that need the ability to apply foil to smooth pages frequently, but not in a high-volume environment, the Therm-O-Type Foil-Tech manual foil fuser offers fast an easy manual foil fusing. It features a 14 ½" wide feed opening, which means you can apply foil to larger prints, as well as traditional business cards and invitations. The perfect addition to your copy machine, the manual Foil-Tech foiling machine eliminates the need for expensive foil stamping dies for every design...instead, it uses a specialized thermal fusing foil that adheres to dry toner. This durable foiling machine features adjustable settings for heat and speed, so you can tailor it to fut your exact specifications, lending to an extremely professional and beautiful finish. Once you begin feeding in your sheets, you control the roll pressure with a handle, and can run the machine at speeds up to 1,500 sheets per hour. Buy the Therm-O-Type Manual Foil-Tech foil fuser online and start making your own beautiful and vibrant invitations, awards, business cards, letterhead, wall art prints and so much more. This fusing machine is compatible with our 24 x 500' foil rolls featuring 1" cores, however, the rolls need to be cut down to the allowed 14 ½" width or smaller first. A good starting point for most applications in regards to speed and heat is 40% speed and 255° F.

Troubleshooting Foil Fusing:
① If the tips of your design are missing foil, then settings are either too slow or too hot.
② If there is incomplete foil in solid areas, then settings are either too fast or too cold.

Specifications

Item #04TOTMANUAL
ManufacturerTherm-O-Type
Manufacturer Part NumberFOILTECH
Operating MethodManual
Compatible SuppliesFoil Rolls with 1" Core [24" x 500']
Note: Must be Cut-Down to 14 ½" Wide
Power Voltage110V
Speed1,500 Sheets / Hour [Adjustable]
Dimensions39" W x 36" D x 26" H
Manufacturer's Warranty1 Year Limited Parts
Size14 ½"
Product TypeFoil Fusers
Warm-Up TimeAbout 30 Minutes [Depending on Temperature/Speed Settings]
Temperature Range0° - 300° F [Adjustable]
Maximum Roll Length2000' L
Maximum Width14 ½" W
Core Size1" Core
Shipping Weight (lbs)268
Product Weight (lbs)220
Shipping InformationThis item ships via Truck (Common Carrier). It is the responsibility of the Consignee (receiver) to remove the product from the truck. If you do not have a loading dock or any other means to lift the freight off the truck and/or you need assistance bringing the product inside of your location please call (866) 537-2244. Click here for full details.

Description

The "foil fusing" process bonds foil to toner image areas that have been imprinted with a copy machine or laser printer, eliminating the need for a foil stamping die. The Manual Foil-Tech makes it easy to add brilliance to invitations, award certificates, business cards, letterhead and more.

Once the Manual Foil-Tech has reached the correct fusing temperature, the paper feed is activated. An operator uses a handle to manually engage and disengage the impression control system. This mechanism releases the foil to the be applied to the toner. Sheets up to 14 1/2" wide by up to two feet long can be run through the machine. When running 11" long sheets through the machine, up to 1,500 sheets per hour can be produced. Fused sheets are delivered into a receiving tray and used foil is rewound for disposal. Variable speed and temperature settings ensure high quality fusing on various paper stocks.

Videos

Therm O Type - What Is Foil Fusing

Transcript: Foil Fusing, the process of bonding foil to a toner image, printed with a copy machine or laser printer has been around for many years.
But, foil fusing process allows beautiful flat foil images, and texts to be created without the need for a special dye, expensive foil stamping equipment, complex make-ready and a skilled operator.
Foil Fusing, the process of bonding foil to a toner image, printed with a copy machine or laser printer has been around for many years.
But, foil fusing process allows beautiful flat foil images, and texts to be created without the need for a special dye, expensive foil stamping equipment, complex make-ready and a skilled operator.
