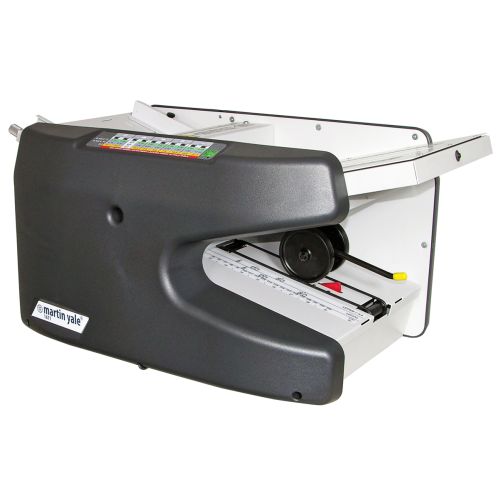

Martin Yale® 1611 Ease-Of-Use Friction-Fed Paper Folder
- 0
- 1
Overview
When you buy the Martin Yale 1611 Ease-Of-Use paper folder online you get an automatic, high-speed paper folding machine that can 9,000 sheets per hour* and handle your medium-volume daily and weekly folding needs with ease. The model 1611 is a new and improved replacement for the 1601 folder by Martin Yale, and has an improved feeding system, removable fold tables for easy access to the rollers, improved stacking wheels for a clean finished stack, self-centering paper guides for easy adjustments, and the expanded capability to handle up to legal size sheets. Because the 1611 folding machine has an automatic feed tray with a 150 sheet* capacity, you can set your stack in, turn it on, and walk away. User friendly controls and automatic features, including automatic jam detection, make this machine a great choice for offices that will have multiple users. It can fold one sheet at a time using the automatic feed, but also has a manual bypass feature that allows for folded sets with as many as 5 sheets*.
Specifications
| Item # | 04MY1611 |
|---|---|
| Manufacturer | Martin Yale Industries, LLC |
| Manufacturer Part Number | 1611 |
| UPC/EIN | 11991016116 |
| Speed | 9,000 Sheets / Hour* |
| Dimensions | 21" W x 15 ½" D x 13 ⅕" H |
| Manufacturer's Warranty | 180 Day Manufacturer's Warranty (Extended Warranties Available) |
| Fold Types | Letter Fold, Half Fold, Z-Fold, Double Parallel Fold, Right Angle Fold |
| Folding Capacity | 1 Sheet 5 Sheets [Using Manual Bypass] |
| Minimum Sheet Size | 3 ½" x 5" |
| Maximum Sheet Size | 8 ½" X 14" |
| Accepted Paper Type | Non-Glossy Paper |
| Paper Weight | 70 lb. Index |
| Feed Tray Capacity | 150 Sheets* |
| Suggested User | Small Office, Medium Office |
| Shipping Weight (lbs) | 45 |
Description
The Martin Yale 1611 Ease-of-Use AutoFold Paper Folder is the new and improved replacement for the 1601 Folder. It features an improved feeding system, removable fold tables, easy access to the rollers, improved stacking wheels, self-centering paper guides, enhanced precision paper skew adjustment, and has been modified to fold legal size sheets in the letter fold (or C-Fold).
The Martin Yale 1611 Ease-of-Use AutoFold Paper Folder can handle a variety of your paper folding needs. Stapled sets of up to a maximum of 5 sheets can be folded by hand-feeding documents into the feed table bypass. The 1611 Paper Folding Machine is a high speed machine that automatically feeds and folds a stack of documents up to 8-1/2" x 14" at speeds of up to 9,000 sheets per hour. It will creates five standard folds: letter fold*, half fold, z-fold, double parallel fold, and right-angle fold. There is no fanning needed when you use the Martin Yale 1611 AutoFolder - just put the paper in and it automatically feeds and folds your documents. The conveyor exit table makes it convenient and easy to handle folded stacks. The 1611 Paper Folder features auto jam detect as well as auto shut-off.
* Based on 20 lb. bond paper stock; may vary depending on paper stock used.
Videos
Martin Yale 1611 Automatic Paper Folding Machine | Overview
The high speed machine automatically feeds and folds a stack of documents up to 8.5" x 14". This machine has 6 folding options and can fold 9,000 sheets per hour let's see how it works place a stack of paper into the paper feeding tray. The tray tilts for easy loading. You can also adjust the paper skew for more precision... Read More
The high speed machine automatically feeds and folds a stack of documents up to 8.5" x 14". This machine has 6 folding options and can fold 9,000 sheets per hour let's see how it works place a stack of paper into the paper feeding tray. The tray tilts for easy loading. You can also adjust the paper skew for more precision and control.
Now it's time to choose your fold. The easy-to-follow guide shows you exactly how to adjust your folding tray to achieve the desired folding option. Let's say you want a trifold letter; all you have to do is follow the chart here. We set both tray number one and two to
3.67, press the start button, and there you go.
For a simple bifold letter, set tray one to 5.5 and tray two to 0. The Martin Yale 1611 tabletop Auto Folder is the simple, cost-effective way to get all of your mailing needs done in a flash. Make sure to add it to your cart today.
