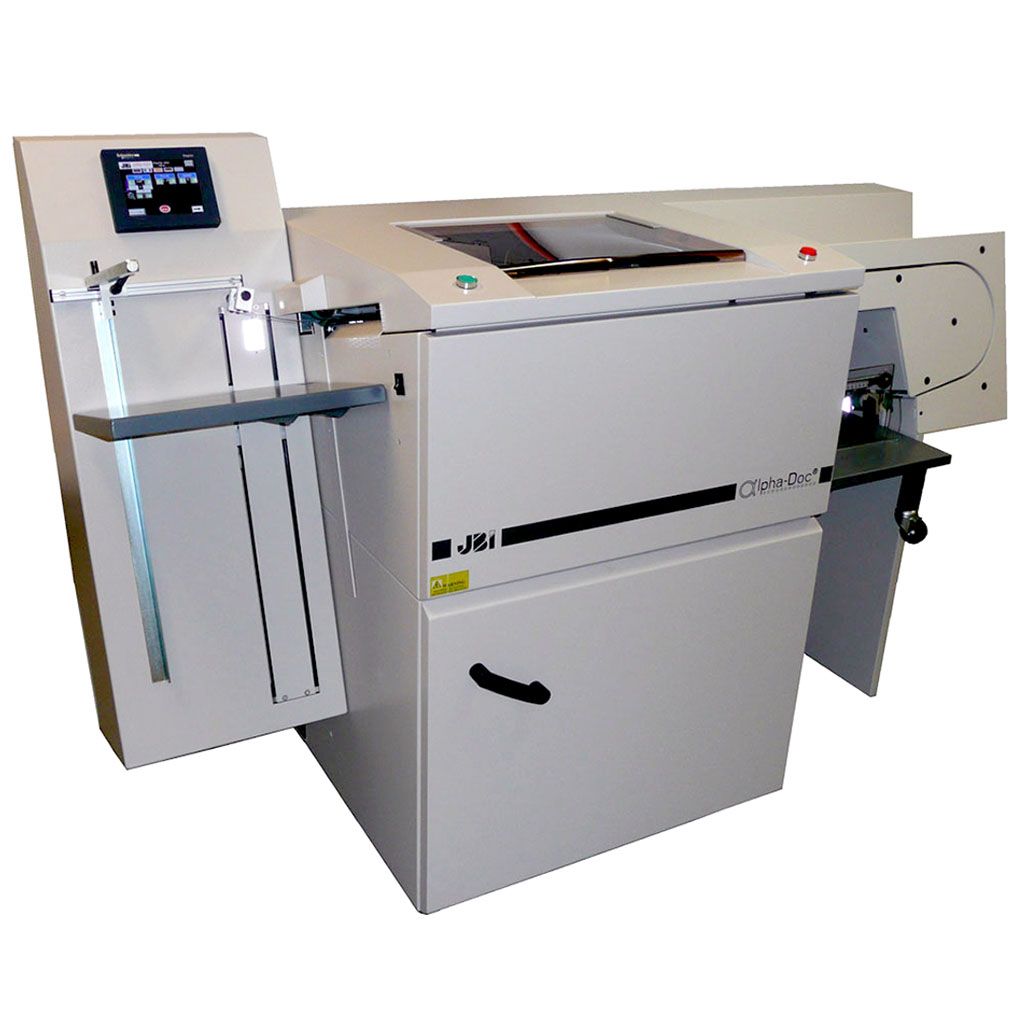

James Burn Alpha-Doc MK4 Automatic Binding Punch Machine
With the newly improved Alpha-Doc® MK4 automatic punching machine, you can enhance productivity, increase output, and produce cleanly punched sheets that lend to a perfectly finished document. This top-of-the-line industrial binding punch offers hands-free automatic punching at speeds as high as 94,200 sheets per hour and can handle sheets sizes from 5 ⅖" x 5 ⅖" up to 14" x 13" with ease. The Alpha-Docdies can quickly be changed from Wire-O to spiral coil, to plastic comb, and more, lending to extreme versatility so you can meet the needs of all your existing customers, as well as gain new business. Plus, they can be sharpened with our express die sharpening service to extend their life. It makes the perfect addition to any print and copy shop, book bindery, or any other business with high volume needs. The AlphaDoc MK4 combines the ease of an office machine with the speed and output of an automatic machine -- creating the perfect automated binding punch on the market.
Not quite sure if the Alphadoc is the best automatic binding punch for your needs? Check out our James Burn equipment spec chart to see some side-by-side comparisons. And remember, we’re here for you; if you have questions, would like a formal price quote, or simply need some guidance navigating these high volume machines, call us at (866) 537-2244 and we will connect you with an experienced James Burn expert.
|Manufacturer Part Number||320013036|
|Binding Style||Various (Depends on Die)|
|Compatible Supplies & Accessories||AlphaDoc MK4 Dies|
|Punch & Bind Capability||Punching Only|
|Setup Time||Less than 5 Minutes|
|Die Change Time||Less than 2 Minutes|
|Paper Size||5.4" x 5.4" up to 14" x 13"|
|Accepted Paper Type||From 16 lb. Bond to 110 lb. Index|
|Feed Table Capacity||8 Reams|
|Selectable Speeds||3 Speed Settings (70, 80, 90 Cycles per Minute)|
|Speed||Up to 94,200Sheets per Hour (Depending on Die, Sheet Size, & Other Factors)|
|Sheet Pickup||Top of Pile Positive Sheet Pickup|
|Maximum Punching Thickness||1 mm|
|Control Panel||Digital LCD Touch Pad|
|Control Panel Notifications||Paper Jam, Cover Open, Emergency Stop|
|Die Sharpening Available||Yes, Express Die Sharpening Service is Available|
|Disengageable Die Pins||Yes (For Common Paper Sizes, Varies by Die)|
|Die / Tool Storage||Storage Compartment on Front (Hold Dies, Oil, Tools, Etc.)|
|Monthly Volume / Duty Rating||Up to 3,000,000 Sheets per Month|
|Training Required||No Special Training Required|
|Power Voltage||110v Single Phase 60Hz|
|Dimensions||72" W x 28" D x 46" H|
|Product Weight||650 lbs.|
|Shipping Weight||1045 lbs.|
|Shipping Method||Truck (Qualifies for Free Shipping)|
|Warranty||90 Day Limited Manufacturer’s Warranty|
No, the Alpha-Doc® is as simple to use as an office copier machine. The control panel walks you through the entire setup process.
Yes, we can make custom dies to meet your exact specifications and job requirements.
