Overview
Specifications
| Item # | 04MBMGOCRSEMI |
|---|---|
| Manufacturer | MBM Corporation |
| Manufacturer Part Number | BO0652 |
| Operation | Electric |
| Power Voltage | 110 V, 60 Hz |
| Speed | 1,500 Sheets / Hour* |
| Dimensions | 23.3" W x 47.3" D x 11.8" H |
| Manufacturer's Warranty | 1 Year Limited Warranty (Excluding Wearable Parts) |
| Size | 18" |
| Sheet Size | 3 ⁹/₁₀" to 18" W x 39" L [Maximum] |
| Program Memory | 5 Pre-Programmed Memory Settings 5 Customizable Memory Settings |
| Crease/Perf/Score Type | Creasing, Perforating, Creasing & Perforating |
| Maximum Creases Per Sheet | 15 |
| Crease Width | 0.04" / 0.05" / 0.063" |
| Perforating Teeth per Inch | 9 Teeth / Inch |
| Maximum Paper Weight [Creasing] | 400 gsm [or equivalent] |
| Maximum Paper Weight [Perforating] | 250 gsm [or equivalent] |
| Creasing Distance | 0.07" to 39.3" Between Creases |
| Creasing Pressure Style | Anvil Style Pressure |
| Perforating Pressure Style | Anvil Style Pressure |
| Pre-Programmed Memory Settings | Half Fold [1/2 Sheet] Letter Fold [1/3 Sheet] Quarter Fold [1/4 Sheet] Gate / Double Parallel Fold [1/4 Sheet] Book Cover Fold |
| Product Weight (lbs) | 110 |
| Shipping Weight (lbs) | 120 |
| Shipping Information | This item ships via Truck (Common Carrier). It is the responsibility of the Consignee (receiver) to remove the product from the truck. If you do not have a loading dock or any other means to lift the freight off the truck and/or you need assistance bringing the product inside of your location please call (866) 537-2244. Click here for full details. |
Description

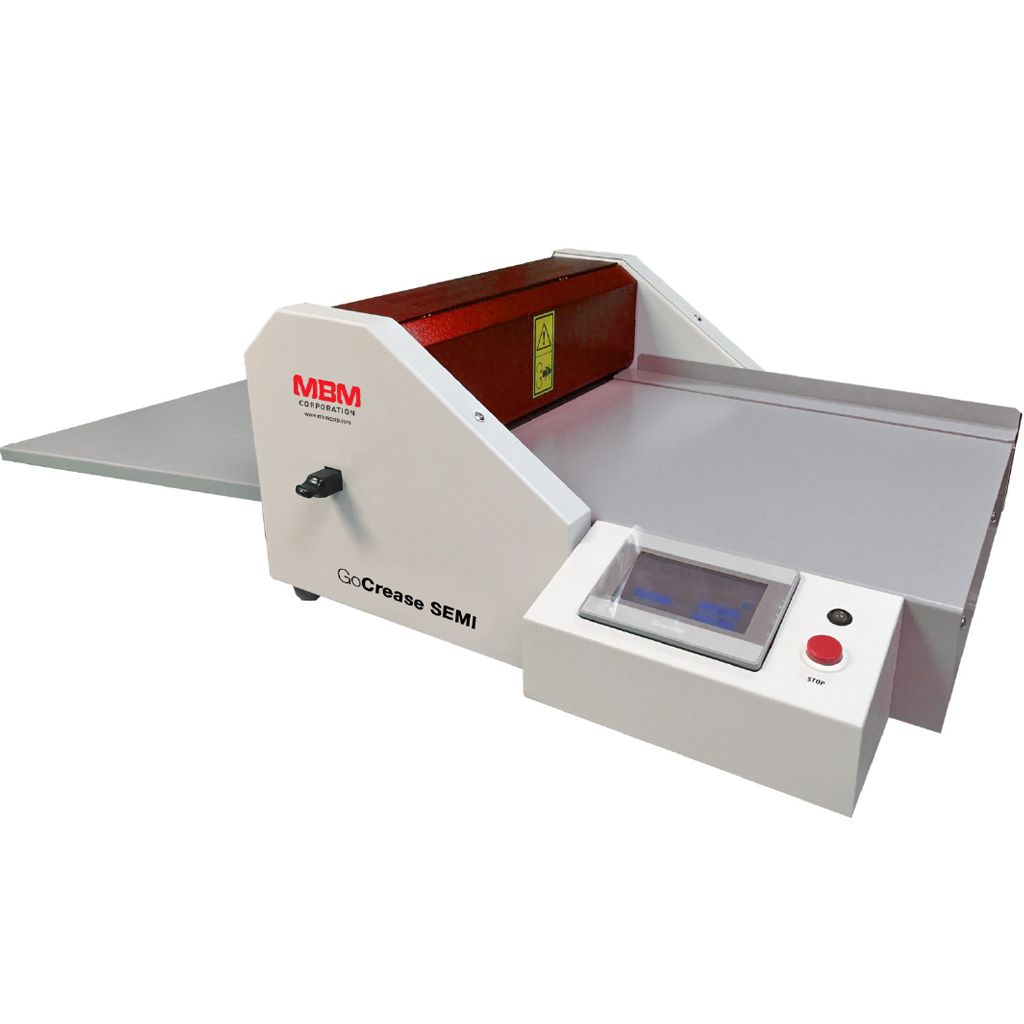

With the MBM GoCrease™ SEMI your print shop or large office will be able to set up the programmable touch screen and walk away while it processes your pages. This versatile machine will accomplish creasing in one of three different widths including 0.04", 0.05", or 0.063" with up to 15 total creases per sheet. It can also create 9-tooth perforations with the same 15 perf per sheet capabilities, and work with sheet sizes ranging from as small as 3 ⁹/₁₀" wide up to as large as 18" wide and about 39" long with hits as close to each other as 0.07" or as far apart as 39.3". It has five pre-programmed and measured settings for popular fold types, and features five additional programmable memory settings that you can customize, allowing for quick recall of frequently run jobs. The touch screen walks you through set up before each job, and can be set to eight different languages including English, Spanish, French, German, Italian, Russian, Greek, and Czech. The MBM GoCrease™ SEMI is internationally-known as one of the most popular and revolutionary machines for this reason, and for the versatile functionality that it offers.
In addition to being versatile, the GoCrease™ SEMI by MBM Corporation uses a unique anvil-style pressure tool for both creasing and perforating, which allows for the least damage to your sheet by keeping the paper fibers and printed inks in-tact. This distinctive pressure style yields a perfect image from edge to edge, making the GoCrease™ one of the best creasing and perforating machines on the market, and producing the most professional and high-quality finish. With the capability to run at speeds as fast as 1,500 sheet per hour*, and the quick change-over for different creasing widths and between the creasing and perforating tools, the GoCrease™ SEMI is a smart buy for any print shop or large office with higher volume daily needs.
Pre-Programmed Settings for Popular Folds:
- Half Fold (1/2 Sheet)
- Letter Fold (1/3 Sheet)
- Quarter Fold (1/4 Sheet)
- Gate / Double Parallel Fold (1/4 Sheet)
- Book Cover Fold
How to Change GoCrease™ SEMI Crease Widths:
- Pull out the creasing tool and rotate it to the desired width.
- Place the tool back into the machine.
How to Change GoCrease™ SEMI Creasing and Scoring Tools:
- Make sure the machine is unplugged.
- Lift the cover and remove the two side screws and pull the shaft up with the leading wheels.
- Remove the screws on the tool and carefully pull out the tool.
- Place the new tool into the machine and replace the screws (do not tighten them too much).
- Replace the cover.
* Operating speed may vary depending on paper size and type, number of creases or perforations per sheet, etc.
Videos
GoCrease Semi Creasing & Perforating Machine Overview
This creaser features a touch screen control panel that lets you choose between 8 different languages, and is easy to program for your job. It has 5 pre-set programs for popular creases, and 5 customizable memories.
Simply select the crease location and the number of creases you want on your sheet, and press start.
The GoCrease Semi-Automatic creaser will grab your hand-f... Read More
This creaser features a touch screen control panel that lets you choose between 8 different languages, and is easy to program for your job. It has 5 pre-set programs for popular creases, and 5 customizable memories.
Simply select the crease location and the number of creases you want on your sheet, and press start.
The GoCrease Semi-Automatic creaser will grab your hand-fed paper, pull it under the creasing bar, apply the creases as programmed, and slide your pages into a neat stack on the exit tray.
It can handle a maximum sheet size of 18”, a paper thickness up to 400 gsm, and produce up to 15 total creases on 1 sheet.
Switching from creasing to perforating is simple. Just lift the cover, unscrew the crease blade, and replace it with the perforation blade. Then slide out the bar from the side of the machine, and rotate it to the perforation side. Perforating has a maximum paper thickness of up to 250 gsm.
The GoCrease Semi is a premium creasing and perforating machine that is available to buy online at Binding101.com. Call the number on your screen for more information.
