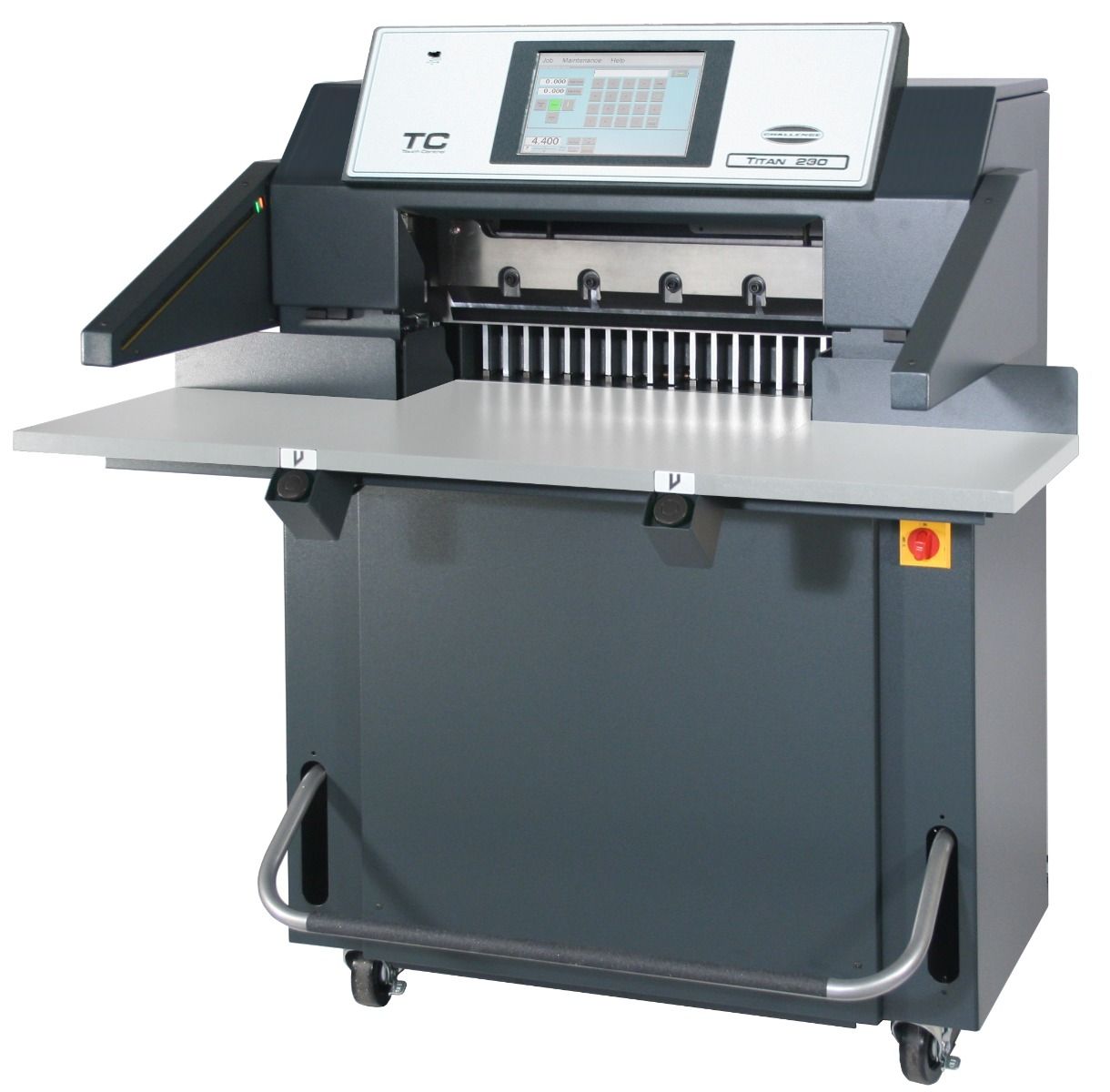

Challenge Titan 230TC 23" Hydraulic Cutter w/ Color Touchscreen Controls and Safety Light Beams
- 0
- 1
Overview
This Challenge Titan 230 TC 23" Hydraulic Programmable Paper Cutter w/ Color Touch Screen Control has a solid cast iron and steel construction for maximum durability. Its industry-exclusive UHMW gib surfaces, composite bushings, and a one-inch thick solid metal table require virtually zero maintenance for years of trouble-free operation. The Titan 230 has a maximum cutting width of 23" and a maximum cut depth of 24". The Titan 230 meets the toughest safety standards in the industry today. It has category 4 light safety curtains, an enclosed rear table, two-hand timed non-repeat cut buttons, and a knife safety latch that made this paper cutter UL and CE certified. Its intuitive menu-driven controller allows variable mode data entry with up to 99 jobs / 9,801 total cut position storage. This Challenge Titan 230 TC 23" Hydraulic Programmable Paper Cutter w/ Color Touch Screen Control has self-diagnostics and error indication feature that walk the operator through any potential difficulties.
Need help selecting the best industrial paper cutter for your shop? Call our experts at (866)537-2244 for guidance.
Specifications
| Item # | 04CHLT230TC |
|---|---|
| Manufacturer | Challenge Machinery |
| Manufacturer Part Number | Titan 230TC |
| Operation | Hydraulic |
| Cutting Width | 23" |
| Maximum Cutting Depth | 24" |
| Minimum Cut | 1/2" Without False Clamp 1-7/8" With False Clamp |
| Clamp Opening | 3-1/4" Without False Clamp 3" With False Clamp |
| Clamping Method | Hydraulic & Manual |
| Backgauge Control | Powered |
| Table Space | 24-1/4"in Front of Knife 24"Behind Knife |
| Safety Features | Category 4 Light Safety Curtains Enclosed Rear Table Two-Hand Timed, Non-Repeat Cut Buttons Knife Safety Latch |
| Will Pass Through Opening | 39" without Light Beams 29" Table & Treadle Out |
| Dimensions | 50" W x 66" D x 53" H |
| Power Voltage | 1-3/4 H.P. 1 Phase, 60 Hz, AC, 208/230 Volts, 12 Amps (service size 15 Amps), Requires receptacle type: NEMA 6-15R or 6-20R |
| Dimensions | |
| Certifications | UL Listed |
| Manufacturer's Warranty | 2 Year Limited Manufacturer's Warranty |
| Country of Manufacture | U.S.A |
| Product Weight | 1,000 lbs. |
| Shipping Weight | 1,120 lbs. |
Description
The programmable Challenge Titan 230TC hydraulic electrical paper guillotine, designed for the rigors of the digital print environment. It is built on a foundation of solid cast iron and steel construction for maximum durability. UHMW gib surfaces, composite bushings, and a one-inch thick solid tool aluminum table require virtually no maintenance for years of trouble-free operation.
The Titan 230TC meets the toughest safety standards in the industry today; category 4 light safety curtains, enclosed rear table, two-hand timed non-repeat cut buttons, and a knife safety latch contribute to the UL and CE certification. This ensures ultimate protection for all of your operators, while the machine is in-use and while it is not.
The intuitive menu-driven controller allows variable mode data entry with up to 99 jobs and 9,801 total cut position storage. Optional electronic clamp pressure control further reduces waste. Machine self-diagnostics and error indication walk the operator through any potential difficulties.
Proudly manufactured in the USA, The Titan 230TC continues the Challenge Machinery legacy of providing clients with the assurance that they made the right decision.
Key Features:
- Fully hydraulic cutting and clamping
- Bright red LED line light is easy to see and needs no future replacement.
- 10.5" Color Touch Screen
- Solid cast iron and steel construction ensure years of trouble-free operation
- Solid 1-inch thick tool grade aluminum table offers the strong work surface required in production environments
- Bright red LED line light is easy to see and needs no future replacement
- Optional electronic clamp pressure adjustment
- Optional air table
- Fully programmable controller offers intuitive operation and up to 9,801 total cut position storage
