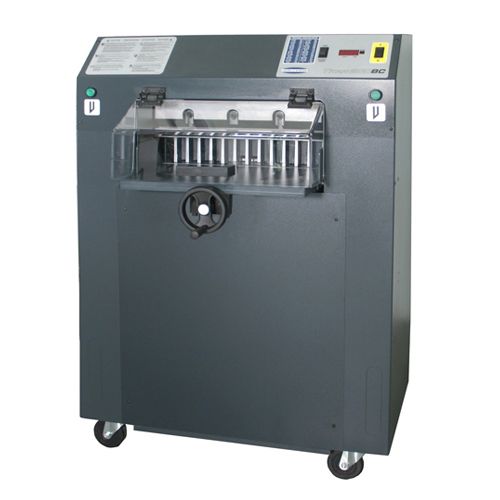

Challenge Titan 200BC w/ Light Beam Safety Option
- 0
- 1
Overview
The Challenge Titan 200BC is a 20" wide paper cutter is featured with a manually adjusted backgauge with hydraulic clamp pressure and a powered blade. It offers a 20 inch cutting length and a 3-1/4" clamp opening. Plus, its safety features offer two handed cut operation, a convenient safety shield and a plexiglass rear shield cover.You can even add side tables to expand your work area when cutting.
Specifications
Item # | 04CHLT200BCLB |
---|---|
Manufacturer | Challenge |
Manufacturer Part Number | Titan 200BC |
Brand Name | Challenge |
Operation | Electric |
Compatible Supplies & Accessories | Knocked Down (skid will go thru 32” door) Independent Mechanical Foot Pedal Clamping- Factory Installation (04CHLT200BCFPC) 208/230 Volt Motor Option (04CHLT200BCMO) |
Power Voltage | 120 Volts |
Dimensions | 53" H x 36" W x 51" L |
Certifications | UL/CUL LISTED & CE |
Manufacturer's Warranty | 1 Year Warranty |
Country of Manufacture | USA |
Cutting Width | 20" |
Product Weight (lbs) | 755 |
Shipping Weight (lbs) | 950 |
Description
The Challenge Titan 200BC is a 20" wide paper cutter that is featured with a manually adjusted backgauge with hydraulic clamp pressure and a powered blade. It offers a 20 inch cutting length and a 3-1/4" clamp opening. Plus, its safety features offer two handed cut operation, a convenient safety shield and a plexiglass rear shield cover.
The Titan 200BC has an easy-to-read LED digital display that allows for ultimate control along with a line light cut position indicator. Plus, the blade controls on the Titan 200BC is easy to use and provides operator protection. For the unit to cut, the safety shield must be closed and then using both hands, the operator pushes two blade control buttons before the blade engages.
If you are looking for a paper cutter with high-speed production, durability and superior safety, look no further than the Challenge Titan 200BC.
Key Benefits and Features:
- Hydraulic cutting & clamping
- Easy to read LED digital display
- Red LED line light
- Hydraulic motor runs only during cutting cycle
- Heavy duty casters for portability
- Steel & cast iron construction
- Plugs into standard 110V electrical socket
Safety Features:
- UL/CUL listed and conforms to CE and ANSI B65.3 safety specifications
- Safety-dual cut buttons to activate the cutting cycle
- Rear table safety cover
- Cutting area protection – light beam curtain option
Items included with unit: standard knife, 2 plastic cutting sticks, jogging aid, manual, tool kit, & knife change safety holder assembly
Electrical - UL/CUL LISTED & CE
- Standard: ¾ H.P., Single-Phase, AC, 60 Hz, 120 Volt, 12 Amps, Service size 15 Amps. Power cord included. Requires Receptacle Type: NEMA 5-15R
- Optional: 1-½ H.P., Single-Phase, AC, 60 Hz, 208/230 Volts,12 Amps, Service size 15 Amps. Power cord included. Requires Receptacle Type: NEMA 6-15R or 6-20R.
Available Options:
- Knocked Down (skid will go thru 32” door)
- Independent Mechanical Foot Pedal Clamping - Factory Installation (20-0-101BC)
- 208/230 Volt Motor Option (20-0-017BC)
SPECIFICATIONS:
- Maximum Cutting Width: 20" / 50.8cm
- Minimum Cut: (without false clamp plate) 1/2" / 13mm
- Minimum Cut: (with false clamp plate) 1-7/8" / 48mm
- Maximum Cut Depth: 20" / 50.8cm
- Clamp Opening: (without false clamp plate) 3-1/4" / 8cm
- Clamp Opening: (with false clamp plate) 3" / 7.6cm
- Clamping Method: Hydraulic Power
- Backgauge Control: Manual
- DIMENSIONS:
- Table Space: (in front of knife) 16" / 40.6cm
- Table Space: (behind knife) 20" / 50.8cm
- Overall Height: 53" / 135cm
- Overall Width: 36" / 91cm
- Overall Length: 51" / 130cm
- Net Weight (approximate): 755 lbs / 343 kg
- Shipping Weight (approximate): 950 lbs / 432 kg
- ELECTRICAL:
- 3/4 H.P. 1 Phase, 60 Hz, AC
- 120 Volts, 12 Amps (service size 15 Amps)
- Requires receptacle type: NEMA 5-15R
- U.L. Listed
