25" Polar Cub Manual Mounting & Laminating Machine Item#04POLARCUB25
- 0
- 1
Overview
The 25” Polar Cub Manual Mounting & Laminating Machine was designed to allow one operator to quickly and easily mount prints and protect prints with one sided laminating. This rugged machine is ready to use right out of the box. The Polar Cub is compatible with all types of pre-coated, self-adhesive mounting and foam boards up to 1" thick. The steel entry and exit tables support the boards so you don’t have to. When the tables are folded up, the machine is a compact size of 11” wide x 12” tall for storing just about anywhere. For use with self-adhesive boards, simply peel back about one inch of the release liner. Press and smooth your print on the inch of exposed adhesive. Insert the tacked edge into the mounting machine and remove the remainder of the release liner. Gently pull your print up and over so that it is smooth against the rollers. Turn the handle to feed your print and board through the machine for a strong and bubble free finish. For pouch boards, the process is very similar except you are able to laminate the print first and then mount the laminated print to the board. Other supplies are just as easy to use for creating a professionally mounted piece or single sided laminated flexible signs and banners.
Specifications
| Item # | 04POLARCUB25 |
|---|---|
| Manufacturer | Polar Laminating |
| Manufacturer Part Number | CL25CUB |
| Operating Method | Manual [Handle] |
| Included Supplies & Accessories | Corner Alignment Guide X-ACTO® Knife |
| Compatible Supplies | Self Adhesive Mounting Boards Self Adhesive Pouch Boards Any Other Self Adhesive Boards |
| Speed | Dependent on Operator |
| Castors | No |
| Dimensions | Working: 27 ½" W x 24 ½" D x 10" H Storage: 27 ½" W x 12.5" D x 10" H |
| Manufacturer's Warranty | 1 Year Limited |
| Size | 25" |
| Maximum Width | 25" Wide |
| Maximum Thickness | 1" Thick |
| Shipping Weight (lbs) | 32 |
| Product Weight (lbs) | 28 |
Description
If you are tired of mounting prints by hand, then the Polar Cub Manual Mounting Machine might be the perfect solution. The Polar Cub is available in either 25" or 38" working widths. It will save as much as half the time of mounting by hand, and will accept boards up to 1" thick. High-quality silicone rollers ensure consistent pressure and professional results, every time. Entry and exit feed tables also support the boards so you don't have to.
The Polar Cub Mounting Machine is easy to use! To set the gap between the rollers to match the thickness of your board, place your board between the rollers and close the rollers by turning the height control knob until there is no light between the board and the rollers. Then tighten the rolls a half turn on the height control knob. If you are using the same boards all the time, this will only need to be done once. Then you can peel back the first inch of the release liner. Smoothly tack down your print to the inch of exposed adhesive. Insert the tacked edge into the mounting machine and remove the remainder of the release liner. Hold your print up so that it is smooth against the rollers. Finally, turn the handle to pull your print and board through the mounter. Your print will be mounted with pristine quality. You can then trim your print if desired. Polar Cub Starter Kit is also available!
Features:
Compatible with ALL types of self-stick adhesive coated mounting and foam boards up to 1" thick.
Rugged design and ready to use out of the box
Professional grade silicon rollers provide even pressure and insure bubble free results and any exposed adhesive on the board will not stick to the rollers
Compact! Tables can be folded up for storage.
Videos

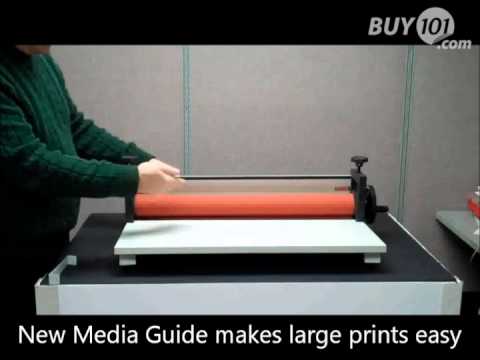

The Polar Cub Laminators Product Preview

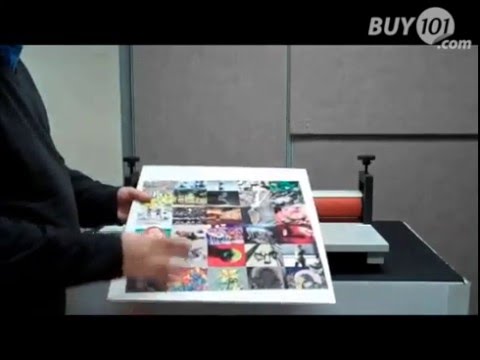

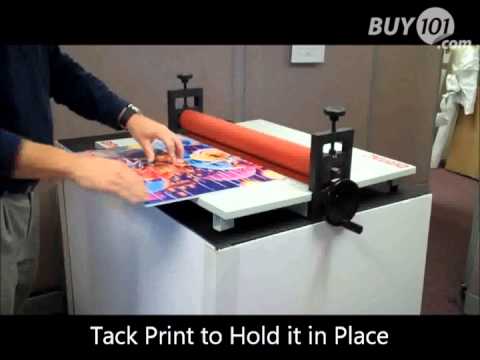

Mount & Laminate Prints with Polar Cub and Polar Pouch Boards
