MBM SF2 StitchFold-2 Bookletmaker

Brand: MBM
  • Uses patented magnetic stitching head technology, providing the reliability and economy of wire stitching. Dual sets of folding rollers assure consistent, professional results.
  • Replaces expensive preformed staples with inexpensive bookbinding wire; you save on material costs and nonproductive downtime.
  • Speed: 2,300 Booklets / Hour
  • Capacity: 25 Sheets [20 lb. Bond Paper]
  • Oversize / Truck shipping
Starting At:

$17,899.00

Choose Below
Product Name Item Number Price Qty
MBM StitchFold-2 Bookletmaker (For Hand Feed Off-Line Use) Item#04MBMSTITCHHF 04MBMSTITCHHF
$17,899.00
MBM StitchFold-2 Bookletmaker (For In-Line w/Collators Use) Item#04MBMSTITCH 04MBMSTITCH
$19,199.00

Overview

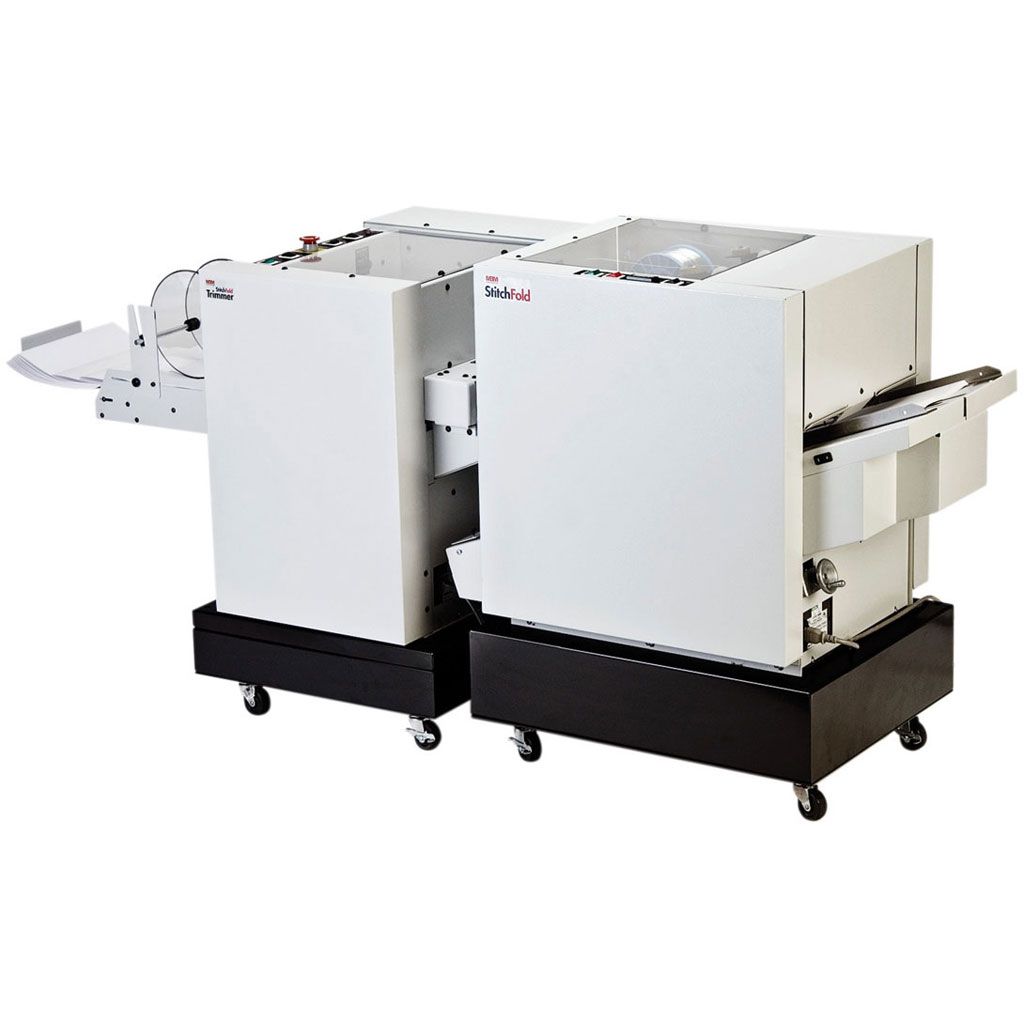

The StitchFold 2 (SF2) booklet making machine is a wire-fed stitching system that offers lower operating costs than traditional stapling systems; it will jog, stitch and fold as many as 65,000 booklets without having to replace the stitching wire spools. With a 25 sheet capacity using standard 20 lb. bond copy paper, you can create booklets with as many as 100 pages at unmatched speeds up to 2,300 booklets per hour without dealing with the hassle of reloading staples. Simple to operate, the SF 2 booklet maker comes in two models: an off-line version that runs on it's own, or an on-line version that can be attached to the FC 10 collator and Stitchfold face trimmer. This industrial booklet maker can accomplish more than just saddle stitching... it also produces side stitching, corner stitching and folding without stitching. It features patented magnetic stitching technology that ensures the complete reliability of the wire stitching process. All operators are kept safe with interlocking access guards to prevent the machine from running when open.

Specifications

Item # STITCHFOLD2-GRP
Manufacturer MBM Corporation
Manufacturer Part Number STITCHFOLD2 GRP
Binding Style Booklet Making
Operation: Binding Electric
Capacity* 25 Sheets [20 lb. Bond Paper]
Compatible Supplies & Accessories Face Trimmer for SF2 StitchFold-2 Bookletmaker
Power Voltage 115 Volts, 60 Hz, 10 Amps
Speed 2,300 Booklets / Hour
Castors Yes
Dimensions 21" W x 52" D x 24 ½" H
Sheet Size Minimum: 4 ¾" x 8 ¼"
Maximum: 12 ¾" x 18 ½"
Shipping Weight (lbs) 400
Shipping Information This item ships via Truck (Common Carrier). It is the responsibility of the Consignee (receiver) to remove the product from the truck. If you do not have a loading dock or any other means to lift the freight off the truck and/or you need assistance bringing the product inside of your location please call (800)631-3572. Click here for full details.

Description

The MBM StitchFold-2 (SF2) is so easy to use, simply load your booklet and it is automatically jogged, stitched, folded, and discharged onto an accumulating output conveyor. Side stitching, corner stitching, and folding projects, with or without stitching, are easily accomplished. StitchFold uses patented magnetic stitching head technology, providing the reliability and economy of wire stitching. Dual sets of folding rollers assure consistent, professional results. For safety, interlocked access guards prevent machine operation when open. With StitchFold, you can jog, stitch, and fold more than 65,000 booklets at a maximum speed of 2,300 finished booklets per hour - without stopping to reload staples. StitchFold's variable work thickness capacity handles from 2 sheets to a 100 page booklet with no setup changes or adjustments. The StitchFold replaces expensive preformed staples with inexpensive bookbinding wire; you save on material costs and nonproductive downtime.
