40" Keencut Sabre-2 Model 60735 All Purpose Bar Cutter
• 60" Sabre-2 Model 60736
• 80" Sabre-2 Model 60737
• 100" Sabre-2 Model 60738
• 120" Sabre Model 60739
|Manufacturer Part Number||60735 60736 60737 60738 60739|
|Included Supplies & Accessories||100 Medium-Duty Blades|
10 Graphik Blades
Vertical Textile Blade Holder with 45mm Cutting Wheel
|Compatible Supplies & Accessories||Medium Duty Blade 69108|
Heavy Duty/Superior Blade 69119
Stands for Sabre-2
Stand Packages for Sabre-2 (with waste catcher & roll feeder)
36" Extended Measuring Arm
Vertical Medium-Duty Blade Holder 60395 (Fits 69108 & 69119 Blades)
Graphik D .017 Blades 69131
Vertical Graphik Blade Holder 60396 (Fits 69131 Blades)
45mm Circular Textile Blades 69132
Vertical 45mm Textile Blade Holder 60397 (Fits 69132 Blades)
Yellow "T" Silicone Cord KX12
White Silicone Cord KX15
Series 2 Single Cutting Head 60394 (Includes: 1 Textile Blade Holder, 1 Graphik Blade Holder, 10 Graphik D.017 Blades, 1 Medium Duty Blade Holder, & 100 Medium-Duty Blades
|Dimensions||13" D x 2-1/4" H (Width Varies by Model)|
|Manufacturer's Warranty||20 Year Limited on Bearings + 5 Year General|
|Country of Manufacture||United Kingdom|
|Cutter Capacity*||13mm (1/2")|
|Can Cut Materials||Paper, Banner, Laminate, Foam Board, PVC, Corrugated Plastic, Canvas, Floor Graphics, Floor Tiles, Foil, Magnets, Polyester, Polystyrene, Flexographic Plates, & More! Call (866)537-2244 for Sample Material Testing|
|Shipping Information||Some sizes require shipment via Truck (Common Carrier). It is the responsibility of the Consignee (receiver) to remove the product from the truck. If you do not have a loading dock or any other means to lift the freight off the truck and/or you need assistance bringing the product inside of your location please call (866) 537-2244. Click here for full details.|

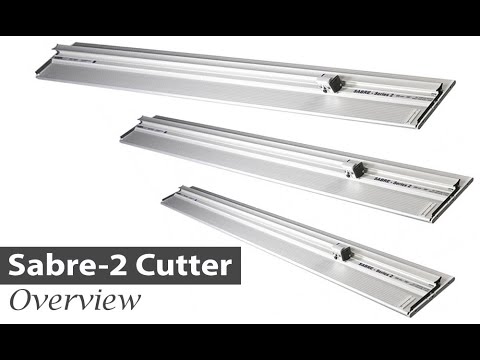

Introducing the new Sabre-2 general purpose cutter. This versatile cutting tool is designed to cut a wide range of sheet materials. It offers straight, square and clean cutting for a variety of materials including foam board, corrugated plastics, cardboard, and more. The Sabre-2 board cutter is designed for use on a bench or attached to the optional stand. It includes blade depth adjustment and features a cutting head that automatically retracts to a safe position when not in use.
The innovative hinge and lift arm mechanism makes it possible to cut materials longer than the length of the cutter. It also accepts materials of varying thickness without affecting either the line or angle of cut. Superbly styled, the extruded anodized aluminum base incorporates a narrow groove to accept the blade tip when cutting.
A full length silicone rubber grip strip mounted in the surface of the base and two more on the underside of the cutter bar ensures all work is held perfectly in place while cutting, providing protection for even the most sensitive surfaces. A high-grade polymer bearing system offers lasting accuracy. The Sabre-2 cutter is efficiently engineered for high volume production and with its patented linear bearings that have been test run under load for 1000 miles, this cutter is backed up by a 20 year limited manufacturer's warranty.
Sabre-2 Key Features:
- Cuts materials that are longer than the length of the cutter as a result of an innovative hinge and lift arm mechanism.
- A high performance cutting head design that relies on strong Graphik blades with a cutting depth up to 13mm.
- These unique reversible blades cater to both left and right-handed operators.
- Fully equipped & ready to work with blades included. Includes three interchangeable blade holders.
- Easy to adjust blade depth with integrated depth guidance allows easy and exact cutting.
- Accurate to within 0.03".
- Relies on an extruded anodized aluminum base that incorporates a narrow groove to accept the blade tip when cutting.
- Hold work securely, thanks to a full-length silicone rubber grip strip mounted in the surface of the base, and two more on the underside of the cutter bar.
- 20 year warranty on bearings + 5 year general warranty on parts.
- 100% Made in the UK.
Keencut Sabre-2 Tested and Approved Materials:
This multi-substrate cutter works great with all of the below materials that have been tested and approved, but it is not limited to these materials. So if you have a media not listed and want to test it before you buy, give us a call at (866) 537-2244 so we can arrange some sample material testing. The capacity may vary depending on the structure and hardness of the material being cut.
- Acrylic (score & snap) 1/4"
- Corrugated plastic
- Flexible sheet materials
- Fabric / Textiles
- Flexographic plates
- Floor graphics / tiles
- Foam board
- Magnetic sheets
- Mount board
- Photo paper
- Self-adhesive vinyl
*Capacity may vary depending on material being cut, operator, and other factors.
