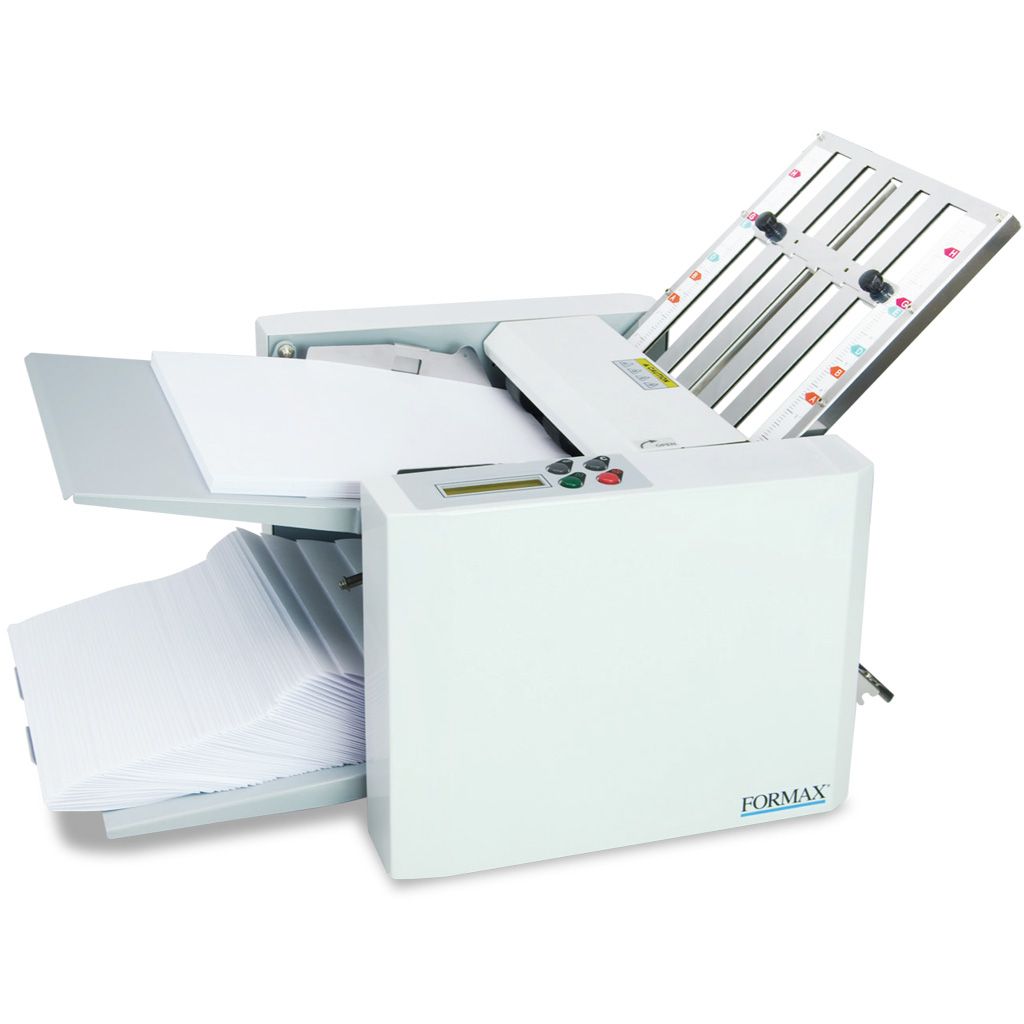

Formax FD 300 Desktop Automatic Paper Folder
- 0
- 1
- 2
- 3
- 4
- 5
- 6
Overview
The Formax FD 300 Document Folder provides an economical solution for low-volume folding projects. This compact folder processes 11" and 14" paper at speeds up to 7,400 sheets per hour, and is clearly marked for 4 common fold settings.
Specifications
| Item # | 04FXFD300 |
|---|---|
| Manufacturer | Formax |
| Manufacturer Part Number | FD 300 |
| Brand Name | Formax |
| Operation | Automatic |
| Speed | 7,400 Sheets / Hour |
| Sheet Size | 4" W x 5" H - 8.5" W x 14" H |
| Hopper Capacity | Up to 200 Sheets (20 lb. Bond) |
| Paper Weight | Up to 30# (112 gsm) |
| Fold Types | C, Z, V, Double-Parallel |
| Counter | 3-Digit Resettable Counter |
| Controls | LCD Control Panel |
| AutoBatch | Yes |
| Dimensions | 24” L x 14” W x 16.5” H |
| Net Machine Weight | 25 lbs. |
| Shipping Weight | 42 lbs |
| Power | 120W AC, 60Hz |
| Safety Certifications | CE Approved |
Description
The Formax FD 300 Document Folder provides an economical solution for low-volume folding projects. This compact folder processes 11" and 14" paper at speeds up to 7,400 sheets per hour, and is clearly marked for 4 common fold settings.
The LCD control panel includes a resettable 3-digit counter, and AutoBatch for processing a set number of sheets with a pause between sets. The output conveyor features easily adjustable stacker wheels for neat, sequential stacking of folded pieces. Clearly marked fold settings and simple out-of-the-box operation make this folder ideal for churches, schools, and offices that demand quick and easy set-up with minimal adjustment.
Standard Features:
- Compact size is ideal for low-volume applications
- Quick set-up right out of the box, with simple push-button operation
- Pre-Marked for four popular folds: C, Z, Half and Double Parallel in 11" and 14" lengths
- Folds up to 7,400 sheets per hour
- LCD control panel with 3-digit resettable counter
- Output conveyor for neat and sequential stacking
- Clearly marked fold settings: Switch between fold types quickly and easily
- Drop-in top-feed system: Simply square the paper and load it in the feed tray, no fanning required
- Paper Sizes: Up to 8.5" x 14"
- Hopper capacity: Up to 200 sheets at a time
- AutoBatch: Processes a pre-set number of sheets with pauses between
- Made in USA
Videos
Formax FD 300 Table Document Folder Demo Video
Formax presents the FD 300 Tabletop Document Folder. The FD 300 is an economical space saving document folder ideal for any small organization with folding needs. The rugged compact folder can fold documents up to 14 inches in length and up to 8 ½ inches wide. At speeds of up to 7,400 sheets per hour, the FD 300 completes folding tasks in no time. The FD 300 comes pre-marked with fold settings in both 11” and 14” sizes. A chart is conveniently located on the in-feed of the folder to identify where each fold plate should be set. The FD 300 features a belt driven stacker conveyor without feed wheels to keep folded documents in a neat and sequential order. It also includes the 3-digit counter to keep track of the number of sheets folded. The auto batch mode allows for a set number of sheets to be folded with a pause in between sets for easy handling. The FD 300 is easy to set up right out of the box. Simply set the folder on a level sturdy surface, lower the catch tray, open the feed table extension, and then insert the fold plate. Next, set the fold plates using the fold chart mentioned earlier, adjust the upfeed stacker wheels, and then load the documents to be folded and press start. In no time, the documents will be folded with crisp accurate folds ready for further processing. The Formax FD 300 Tabletop Document Folder.
