Formax Cut-True 29H Programmable Hydraulic Paper Cutter
19185.25
NewCondition
InStock
Formax Cut-True 29H Programmable Hydraulic Paper Cutter
SWIPE FOR MORE IMAGES
- 0
- 1
- 2
- 3
- 4
- 5
Overview
The Formax Cut-True 29H Hydraulic Guillotine Paper Cutter offers precision cutting for paper stacks up to 20.5” wide. User-friendly, intuitive features include a touchscreen control panel, automatically-adjusting back gauge and the capacity to program up to 100 jobs/100 cuts. An infrared light beam safety curtain provides safety and convenience as it shuts down operation if the light plane is interrupted.
Specifications
| Item # | 04FXCT29H |
|---|---|
| Manufacturer | Formax |
| Manufacturer Part Number | 29H |
| Operation | Electric |
| Included Supplies & Accessories | Lockout Key Blade-Change Safety Tool Wooden Push Block |
| Compatible Supplies & Accessories | 29-30 Wide Side Tables 29-10 Replacement Blade 29-20 Replacement Cutting Sticks (8 pack) |
| Power Voltage | 220V, 60Hz, 20A dedicated line, NEMA 6-20P |
| Dimensions | 36.75" W x 53.2" D x 49.2" H (61.5" W with Optional Side Tables) |
| Cutting Width | 20-1/2" |
| Cutter Capacity* | 3.15" Thick Stack |
| Narrow Cut | 1.18" (without False Clamp) |
| Length Behind Blade | 20-1/2" |
| Length in Front of Blade | 18-1/4" |
| Cutter Accuracy | 0.1mm |
| Clamp Pressure | Automatic, Hydraulic (700 - 4,500 psi) |
| Cutter Memory | 100 Jobs with 100 Steps |
| Safety Features | Infrared Light Beam Safety Curtain Lock with Key Blade Lock Two-Hand Operation External Blade Depth Adjustment Automatic Blade Return Blade-Change Safety Tool Wooden Push Block |
| Can Cut Materials | Paper |
| Table Size | 30.75" W x 15.75" D (56" W x 15.75" D with Optional Side Tables) |
| Product Weight (lbs) | 1014 |
| Shipping Weight (lbs) | 1014 |
| Shipping Information | This item ships via Truck (Common Carrier). It is the responsibility of the Consignee (receiver) to remove the product from the truck. If you do not have a loading dock or any other means to lift the freight off the truck and/or you need assistance bringing the product inside of your location please call (866) 537-2244. Click here for full details. |
Description
The Formax Cut-True 29H Hydraulic Guillotine Paper Cutter offers precision cutting for paper stacks up to 20.5” wide. User-friendly, intuitive features include a touchscreen control panel, automatically-adjusting back gauge and the capacity to program up to 100 jobs/100 cuts. An infrared light beam safety curtain provides safety and convenience as it shuts down operation if the light plane is interrupted.
Operation is simple: utilize the touchscreen to program and select job settings, then load a stack of paper, up to 3.15” high. Set the back gauge using the touchscreen, then use the foot pedal pre-clamp to check the paper position. The bright LED Cutting Line allows operators to see exactly where the blade will cut and make fine adjustments. Electronically-controlled two-hand operation engages the hardened steel blade for crisp, accurate cuts, every time.
Cutting accuracy is 0.1mm on paper stacks up to 80mm. The Cut-True 29H also features a special anti-friction surface with optional wide side tables, making it easier for operators to maneuver large paper stock. The hydraulic clamp pressure is adjustable to give the best clamp possible for different paper weights and stack heights. A false clamp is included to minimize the risk of marking sensitive paper stock or perfect bound books. In addition, the clamp can be removed to decrease the minimum cut length, and stored within the machine. The Cut-True 29H also features an internal light to illuminate the cutting area.
Cut-True 29H Safety Features:
- Safety Curtain - Infrared light beam prevents the machine from cutting if something it near the cutting field.
- Cutting Line - Bright red LED cut line shows exactly where the blade will make contact with your stack.
- Lockout Function with Key - Limits access to only authorized users.
- Two-Hand Operation - Ensures both of your operator's hands are off the table before cutting.
- Blade Adjustments - Accomplished externally, keeping hands away from the blades.
- Automatic Blade Return - Brings the blade back up into the machine after a cut.
- Blade Change Tool - Easy to use blade change-out tool protects your users during replacement.
- Transparent Rear Safety Guard
- Push-Block - Strong wooden push block to press pages back without bringing hands near the cut area.
- Blade Lock
Cut-True 29H Key Features & Benefits:
- Thick 3.15" cutting capacity
- Wide 20.5" cutting length
- Touchscreen control panel for easy setup and programming of jobs
- Touchscreen features: program jobs, alternate between inches/mm, paper eject function, programming via cutting, business card cutting mode
- Programmable with room for up to 100 jobs with 100 steps per job
- Minimum cut of 1.6" with false clamp and 0.98" without false clamp
- Automatic, hydraulically controlled clamp
- Automatic blade return from any position
- Hardened steel blade for a long life
- Hydraulic controlled clamp pressure and blade carrier
- False clamp minimizes marking of sensitive paper stock and easily stores inside the machine when not in use
- Solid steel blade carrier
- Fine tuning knob for precise manual adjustment of back gauge
- Low friction work table makes it easy to move large stacks of paper
- Built-in shelf storage
Videos
Overview of Cut-True 29A & 29H Electric and Hydraulic Stack Cutters
Transcript:
Formax presents the Cut-True 29A and 29H, two true shift light production cutters. The Formax Cut-True 29A automatic electric cutter and 29H hydraulic cutter, provide precision paper cutting for sheets up to 20.5 inches wide. Ideal for the digital print marketplace. Both models feature programmable job settings, an infrared light beam safety curtain, a high speed hardened steel blade and a color touchscreen control panel for quick and easy setup and operation.
In addition, the 29H features tr... Read More
In addition, the 29H features tr... Read More
Formax presents the Cut-True 29A and 29H, two true shift light production cutters. The Formax Cut-True 29A automatic electric cutter and 29H hydraulic cutter, provide precision paper cutting for sheets up to 20.5 inches wide. Ideal for the digital print marketplace. Both models feature programmable job settings, an infrared light beam safety curtain, a high speed hardened steel blade and a color touchscreen control panel for quick and easy setup and operation.
In addition, the 29H features true hydraulic operation that activates both the clamp and the blade, the Cut-True 29A and 29H quickly and accurately cut stacks up to three inches high in paper sizes up to 20.5 inches wide. The bright LED cutting line indicates exactly where the blade will cut, allowing operators to make fine adjustments. Two button operation engages the clamp and high-speed hardened steel blade for crisp, accurate cuts every time the user friendly touchscreen control panel allows operators to program up to 100 jobs with up to 100 cuts each. The smooth deck surface allows for easy maneuverability of large paper stacks. The optional table extensions are available for added working surface. A false clamp is included to minimize the risk of marking sensitive paper stocks. The clamp can be removed to decrease the minimum cut length and is easily stored under the front table of the cutter. When it's being stored a sensor is activated which automatically changes the minimum cutting size.
Safety is a key element for both models. The infrared light beam curtain provides both safety and convenience. As it shuts down operation if the light plane is interrupted. A key lock, wooden paper push, and blade change tool are also standard for safe operation. The Cut-True 29A utilizes an adjustable electronic mechanism to securely clamp the paper stack. The Cut-True 29H uses hydraulic pressure to activate both the clamp and blade, which can be adjusted to provide the best cut possible for different paperweights and stack heights.
For a basic cutting job select or set the program using the control panel, which will automatically adjust the back gauge. Next, slide the paper stack into position and use the wooden paper push to safely align the stack. With the paper in position, press the two activation buttons which engage the cutting blade while keeping hands away from the cutting area.
The high speed hardened steel blade is designed to last, cut after cut. When it does need to be replaced the blade change tool makes it safe and easy. Select the blade change option on the control panel. Remove the mounting bolts, attach the blade change tool and remove. Simply reverse the process to install the new blade. Cutting sticks are both economical and easy to adjust as they can be rotated up to four times before being replaced.
Formax Cut-True 29A and 29H cutters are true two-shift light production cutters that are ideal for transforming large digitally printed sheets into brochures, invitations, and more with crisp accurate cuts. These cutters are a welcome addition to print shops and implant finishing operations.
In addition, the 29H features true hydraulic operation that activates both the clamp and the blade, the Cut-True 29A and 29H quickly and accurately cut stacks up to three inches high in paper sizes up to 20.5 inches wide. The bright LED cutting line indicates exactly where the blade will cut, allowing operators to make fine adjustments. Two button operation engages the clamp and high-speed hardened steel blade for crisp, accurate cuts every time the user friendly touchscreen control panel allows operators to program up to 100 jobs with up to 100 cuts each. The smooth deck surface allows for easy maneuverability of large paper stacks. The optional table extensions are available for added working surface. A false clamp is included to minimize the risk of marking sensitive paper stocks. The clamp can be removed to decrease the minimum cut length and is easily stored under the front table of the cutter. When it's being stored a sensor is activated which automatically changes the minimum cutting size.
Safety is a key element for both models. The infrared light beam curtain provides both safety and convenience. As it shuts down operation if the light plane is interrupted. A key lock, wooden paper push, and blade change tool are also standard for safe operation. The Cut-True 29A utilizes an adjustable electronic mechanism to securely clamp the paper stack. The Cut-True 29H uses hydraulic pressure to activate both the clamp and blade, which can be adjusted to provide the best cut possible for different paperweights and stack heights.
For a basic cutting job select or set the program using the control panel, which will automatically adjust the back gauge. Next, slide the paper stack into position and use the wooden paper push to safely align the stack. With the paper in position, press the two activation buttons which engage the cutting blade while keeping hands away from the cutting area.
The high speed hardened steel blade is designed to last, cut after cut. When it does need to be replaced the blade change tool makes it safe and easy. Select the blade change option on the control panel. Remove the mounting bolts, attach the blade change tool and remove. Simply reverse the process to install the new blade. Cutting sticks are both economical and easy to adjust as they can be rotated up to four times before being replaced.
Formax Cut-True 29A and 29H cutters are true two-shift light production cutters that are ideal for transforming large digitally printed sheets into brochures, invitations, and more with crisp accurate cuts. These cutters are a welcome addition to print shops and implant finishing operations.

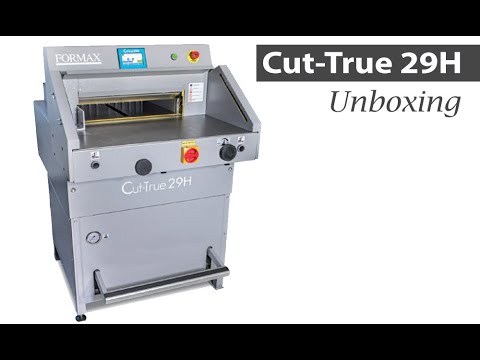

Unboxing the Cut-True 29H Pneumatic Stack Cutter
Transcript:
29H Unboxing. To set up your Cut-True 29H, begin by properly unpacking the cutter. Remove the screws in the top cover. Then, remove the cover. Remove the four sidewalls of the container. Then, remove the plastic wrapping from the 29H.
Remove the accessory box located in front, underneath the foot pedal. With the cutter unpackaged, remove each of the four bolts that connect the 29H to the pallet. Use a forklift to lift the machine off the pallet. Gently, lower the cutter onto the ground. Using... Read More
Remove the accessory box located in front, underneath the foot pedal. With the cutter unpackaged, remove each of the four bolts that connect the 29H to the pallet. Use a forklift to lift the machine off the pallet. Gently, lower the cutter onto the ground. Using... Read More
29H Unboxing. To set up your Cut-True 29H, begin by properly unpacking the cutter. Remove the screws in the top cover. Then, remove the cover. Remove the four sidewalls of the container. Then, remove the plastic wrapping from the 29H.
Remove the accessory box located in front, underneath the foot pedal. With the cutter unpackaged, remove each of the four bolts that connect the 29H to the pallet. Use a forklift to lift the machine off the pallet. Gently, lower the cutter onto the ground. Using a hand truck, set the 29H into place. Then, adjust the bottom of the left front leg to level the cutter.
Remove the accessory box located in front, underneath the foot pedal. With the cutter unpackaged, remove each of the four bolts that connect the 29H to the pallet. Use a forklift to lift the machine off the pallet. Gently, lower the cutter onto the ground. Using a hand truck, set the 29H into place. Then, adjust the bottom of the left front leg to level the cutter.
