Formax Cut-True 27S Electric Paper Cutter
- 0
- 1
- 2
- 3
- 4
- 5
Overview
Specifications
| Item # | 04FXCT27S |
|---|---|
| Manufacturer | Formax |
| Manufacturer Part Number | 27S |
| Operation | Electric |
| Included Supplies & Accessories | Lockout Key Blade-Change Safety Tool Wooden Push Block |
| Compatible Supplies & Accessories | 27-10 Replacement Blade 27-20 Replacement Cutting Sticks (8 pack) |
| Power Voltage | 110V, 20A dedicated line |
| Dimensions | 36" W x 39" D x 51" H |
| Certifications | CE Approved, UL Pending |
| Cutting Width | 18.9" |
| Cutter Capacity* | 3.15" Thick Stack |
| Narrow Cut | 1.89" |
| Length Behind Blade | 19.87" |
| Length in Front of Blade | 12.37" |
| Clamp Pressure | Manual crank with digital readout (inch / metric) |
| Safety Features | Lock with Key Two-Hand Operation Front Safety Shield Rear Safety Shield External Blade Depth Adjustment Blade-Change Safety Tool Wooden Push Block |
| Can Cut Materials | Paper |
| Table Size | 32" W x 37" D |
| Product Weight (lbs) | 550 |
| Shipping Weight (lbs) | 550 |
| Shipping Information | This item ships via Truck (Common Carrier). It is the responsibility of the Consignee (receiver) to remove the product from the truck. If you do not have a loading dock or any other means to lift the freight off the truck and/or you need assistance bringing the product inside of your location please call (866) 537-2244. Click here for full details. |
Description
The Cut-True 27S Semi-Automatic Electric Paper Cutter offers precision cutting for paper stacks up to 18.9” wide. User-friendly features include dual-button electronic operation, automatic paper clamp, and LED digital readout. Simply load a stack of paper, up to 3.15” high and press the clamp and blade buttons to engage the hardened-steel Guillotine blade. These features, combined with the bright red LED Cutting Line, allow operators to make fine adjustments and see exactly where the blade will cut.
Accurate cutting is easy with its spindle-guided back gauge with LED digital readout and calibrated scales. These features, combined with the LED Laser Line allow operators to make fine adjustments and see exactly where the blade will cut.
The Cut-True 27S Electric Cutter is ideal for transforming brochures, invitations and more, with crisp, accurate cuts, and makes a welcome addition to print shops and in-plant finishing operations.
Cut-True 27S Safety Features:
- Front & Rear Safety Shield.
- Cutting Line - Bright red LED cut line shows exactly where the blade will make contact with your stack.
- Lockout Function with Key - Limits access to only authorized users.
- Two-Hand Operation - Ensures both of your operator's hands are off the table before cutting.
- Blade Adjustments - Accomplished externally, keeping hands away from the blades.
- Blade Change Tool - Easy to use blade change-out tool protects your users during replacement.
- Push-Block - Strong wooden push block to press pages back without bringing hands near the cut area.
Cut-True 27S Key Features & Benefits:
- Thick 3.15" cutting capacity
- Wide 18.9" cutting length
- Minimum cut of 1.89"
- Manual crank back gauge with digital readout in inches and metric
- Hardened steel blade for a long life
- Built-in stand
- Main switch and safety lock with key
- Electronically-controlled front safety guard
- Geared clamping system
- Automatic blade return from every position
- Calibrated scale for fine adjustments, in both inches and metric
- Common paper sizes clearly marked
- Solid steel blade carrier
- Adjustable blade guides
Videos

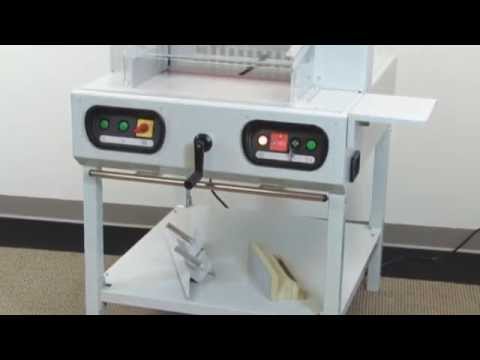

Cut True 27S Electric Paper Cutter
