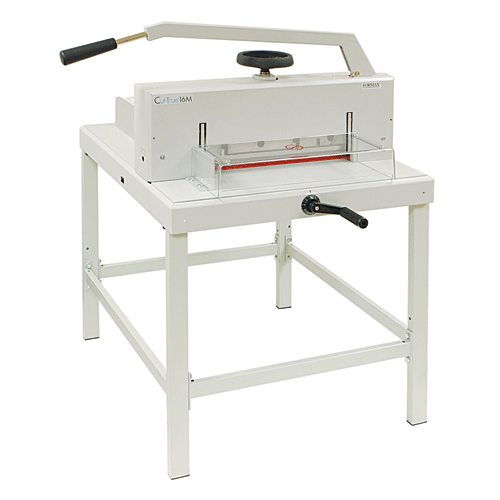

Formax Cut-True 16M Manual Stack Paper Cutter
2795 NewCondition InStock

Formax Cut-True 16M Manual Stack Paper Cutter

Item #: 04FXCT16M
Brand: Formax
  • Manual crank adjusted back gauge with inch/metric scale
  • High quality steel blade for a long life
  • Thick 3.15" cutting capacity
  • Wide 18.7" cutting length
  • Price Match Guarantee!
  • Oversize / Truck shipping
  • Brand New
  • In Stock

$2,795.00

SWIPE FOR MORE IMAGES
  • 0
  • 1
  • 2
  • 3
  • 4
  • 5
video

Overview

The Cut-True 16M manual stack cutter combines accuracy with ease-of-use in cutting paper stacks up to an impressive 3.15" thick and 18.7" wide. With its hardened-steel straight guillotine style blade and lever-activated blade arm, it takes minimal effort to slice through thick stacks of pages with razer sharp precision. Safety is imperative to Formax, so they have an integrated safety system to ensure complete operator protection, virtually eliminating the potential for accidents. It comes standard with the comfortable height stand, but can also be placed on your own work table if you prefer. With the model 16M paper stack cutter from Formax, you can achieve professional cutting results for your business or school's various needs.

Specifications

Item #04FXCT16M
ManufacturerFormax
Manufacturer Part Number16M
OperationManual
Included Supplies & AccessoriesStand
Blade-Change Safety Tool
Wooden Push Block
Compatible Supplies & Accessories16M-10 Replacement Blade
16M-20 Replacement Cutting Sticks (8 pack)
Dimensions39" W x 35" D x 46.25" H
CertificationsCE Approved
Cutting Width18.7"
Cutter Capacity*3.15" Thick Stack
Narrow Cut0.99"
Length Behind Blade19.37"
Length in Front of Blade8.25"
Clamp PressureSpindle-guided clamping wheel
Safety FeaturesFront & Rear Safety Shields
External Blade Depth Adjustment
Blade-Change Safety Tool
Wooden Push Block
Can Cut MaterialsPaper
Table Size30.3" W x 31.5" D
Product Weight (lbs)199
Shipping Weight (lbs)199
Shipping InformationThis item ships via Truck (Common Carrier). It is the responsibility of the Consignee (receiver) to remove the product from the truck. If you do not have a loading dock or any other means to lift the freight off the truck and/or you need assistance bringing the product inside of your location please call (866) 537-2244. Click here for full details.

Description

The Cut-True 16M Manual Paper Cutter combines accuracy with ease-of-use in cutting paper up to 18.7” wide. With its hardened-steel Guillotine blade, and lever-activated blade arm, it has the capacity to cut through paper stacks up to 3.15” with razor-sharp precision.

Using the LED Laser Line, spindle-guided back gauge and calibrated scales, operators can make fine adjustments, and know exactly where to cut. In addition to accuracy, the Cut-True 16M ranks high in safety features including front and rear transparent covers, blade lock, external blade depth adjustment, easy blade change access from the front of the cutter, and a wooden paper push for safe alignment. It also includes a rugged metal stand for a comfortable working height, and feet for tabletop use.

The Cut-True 16M is ideal for transforming brochures, invitations and more, with crisp, professional cutting, and makes a great addition to print shops and in-plant finishing.

Cut-True 16M Safety Features:

  • Front & Rear Safety Shields - Will not cut when shields are open.
  • Cutting Line - Bright red LED cut line shows exactly where the blade will make contact with your stack.
  • Blade Adjustments - Accomplished externally, keeping hands away from the blades.
  • Blade Change Tool - Easy to use blade change-out tool protects your users during replacement.
  • Push-Block - Strong wooden push block to press pages back without bringing hands near the cut area.

Cut-True 16M Key Features & Benefits:

  • Thick 3.15" cutting capacity
  • Wide 18.7" cutting length
  • Minimum cut of 0.99"
  • Manual crank adjusted back gauge with inch/metric scale
  • Spindle-guided geared clamping system
  • High quality steel blade for a long life
  • All-metal stand, as well as tabletop feet included for tabletop use
  • Calibrated scale for fine adjustments, in both inches and metric
  • Common paper sizes clearly marked
  • Solid steel blade carrier

Videos

Overview of the Cut-True 15M & 17M Stack Cutters from Formax

Transcript: In this video we offer an overview of the Formax Cut-True 15M and 16M manual stack cutters.

The Formax Cut-True 15M and 16M are manually operated guillotine cutters.

All Cut-True cutters include a rugged metal stand. The 15M cuts paper stacks up to 2.15 inches high and can handle paper sizes up to 16.9 inches wide. The 16M easily cuts a stack up to 3.15 inches high and handles larger paper up to 18.7 inches wide. The back gauge easily adjusts forward and back for various paper sizes and cuts. ...
Read More
In this video we offer an overview of the Formax Cut-True 15M and 16M manual stack cutters.

The Formax Cut-True 15M and 16M are manually operated guillotine cutters.

All Cut-True cutters include a rugged metal stand. The 15M cuts paper stacks up to 2.15 inches high and can handle paper sizes up to 16.9 inches wide. The 16M easily cuts a stack up to 3.15 inches high and handles larger paper up to 18.7 inches wide. The back gauge easily adjusts forward and back for various paper sizes and cuts. A scale is located on the side rails with metric and standard measurements. The dial on the back gauge crank has additional markings for fine-tuning.

A spindle guided clamping system easily lowers the paper clamp in place for accurate cuts. The long lasting heat-treated steel blade gives smooth, clean cuts every time.

Standard on all Cut-True cutters, the bright LED laser line provides visual accuracy. The transparent plexiglass cover is part of the Cut-True safety system. It covers the blade during the cutting process. When in the open position, it locks the cutter lever in place, preventing the blade from being lowered. As another safety feature, the back gauge crank can easily be disengaged when not in use.

How to Change the Blade & Cut Sticks on Cut-True 15M, 16M, & 22S Cutters

Transcript: In this video we show you how easy it is to change the cutting stick and blade on the Formax Cut-True 15M, 16M, and 22S stack cutters.

Changing blades and cutting sticks on the Cut-True cutters is simple. On the 15M and 16M, a notch is located near the center of the stick for easy removal and replacement. The Cut-True 22S has a mechanical release for accessing the cutting stick.

Blades can easily and safely be removed with the blade change tool. Remove the four outer screws, then attach the bl...
Read More
In this video we show you how easy it is to change the cutting stick and blade on the Formax Cut-True 15M, 16M, and 22S stack cutters.

Changing blades and cutting sticks on the Cut-True cutters is simple. On the 15M and 16M, a notch is located near the center of the stick for easy removal and replacement. The Cut-True 22S has a mechanical release for accessing the cutting stick.

Blades can easily and safely be removed with the blade change tool. Remove the four outer screws, then attach the blade change tool, remove the center screw, then safely remove and replace the blade. Formax Cut-True replacement blades and cutting sticks are a great value at up to 25% lower cost than competitors.
