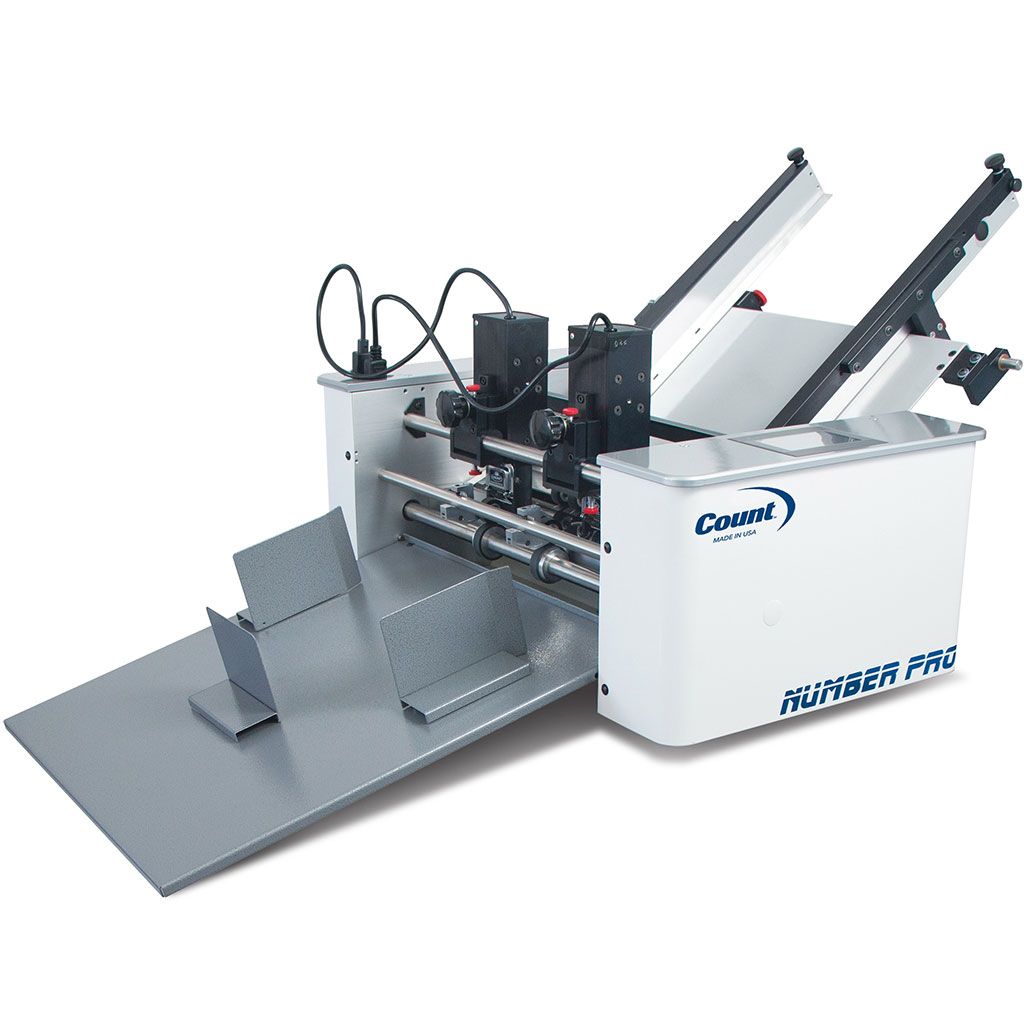

Count™ NumberPro Numbering, Perforating and Scoring Machine
The COUNT™ NumberPro system utilizes simple touchscreen programming that lets you number, perforate, micro-perforate, and score documents with impressive speed and accuracy. It features a reliable top-load friction feeding system and a batch/total sheet counter to keep track of your job progress. It features patented self-inking cartridges to keep production efficient. You may use the 1 included head to number up to 12 times per sheet or add a 2nd optional head for an additional up to 12 times. This system also crash number up to 6-part carbonless forms. Numbering, perforating, and scoring of your sheets is simple, fast, and accurate when you buy the NumberPro Numbering, Perforating, and Scoring Machine online.
|Manufacturer Part Number||NPT|
|Feed Type||Friction, Top-Feed|
|Sheet Counter||Yes, Total and Batch|
|Multi-Part Forms||Yes, Crash Number Carbonless 6-Part Forms|
|Number Locations||Virtually Anywhere; from Lead Edge & and within 1mm of Previous Number|
|Impression Size||3/16 x 3/32"|
|Numbering Speed (Maximum)||6,000 Sheets per Hour¹|
|Number Locations (Maximum)||12 per Sheet (per Head); To 1mm from Previous Number|
|Perf/Score Speed (Maximum)||8,500 Sheets per Hour¹ (Linear)|
|Perf/Score Locations (Maximum)||4 per Sheet|
|Sheet Size||3” W x 5” H to 18” W x 24” H|
|Included Supplies & Accessories||1 Electric Numbering Head (Gothic Font, Reverse, 7 Digits, 4 Drop Zeros)|
1 Perforating Wheel (33 Tooth/9 per Inch)
1 Scoring Wheel
3 Red Inks
3 Black Inks
|Optional Accessories (Sold Separately)||Electric Numbering Head (Gothic Font, Reverse, 7 Digits, 4 Drop Zeros)|
Count™ NumberPro Stand (#CTS100)
18-Tooth Perforating Wheel (5 Perfs per Inch)
33-Tooth Perforating Wheel (9 Perfs per Inch)
45-Tooth Perforating Wheel (12 Perfs per Inch)
96-Tooth Micro-Perforating Wheel (26 Perfs per Inch)
185-Tooth Micro-Perforating Wheel (96 Perfs per Inch)
|Electrical||115V, 60Hz, 20A|
|Warranty||3 Year Limited Manufacturer’s Warranty|
|Country of Manufacture||Made in USA|
|Dimensions||44" W x 32" D x 27" H|
|Shipping Weight||250 lbs.|
|Shipping Method||Freight Truck (Qualifies for Free Shipping*)|
After selecting a repeat sequence, replace the head and run a test sheet. If you are still having trouble with this setting, please refer to the user manual for additional instructions.
To do so, remove the Numbering Head from the Head Bracket and hold it upside down resting it on a flat surface. By doing this you will activate the Test Print button. This will keep the head in the “Open or Down” position for as long as the button is depressed. This will swing the Ink Cartridge away from the wheels or you can remove it altogether. Using the provided set-up tool rotate the 1st wheel until the 9 is in the up position. Then press forward slightly and down, you will feel the wheel depress below the level of the others. Do the same to the 2nd and 3rd wheel. Now you can print a 4 digit number.
To return to position, simply rotate the wheel and it will pop up. This feature is also available on the custom Numbering Wheel with letters. Rotate the wheel until the blank position is up then press forward and down.
The easiest way to check your impression is to use a 3 part carbonless set. Program the Auto Pro Plus to stamp in one location anywhere on the sheet. Run your test sheet through the machine and check the impression for pressure as well as levelness. By level we mean a level impression. Where the impression of the 1st digit is the same pressure and impression as the 5th and 6th digit and the top of the digits is the same as the bottom you are level. We do not mean “plumb level,” as using a small level will not help.
