Tamerica TCC 1400F+ Roll Laminator & Foil Fuser
- 0
- 1
- 2
- 3
- 4
- 5
- 6
Overview
• Variable Speed & Heat Settings
• Mounted Onto Stand
• Temperature Memory Function
• Compatible with 1" Core Films and Foils
• 2-Sided Rear Film Slitter
• Mounts up to 3/16" Thick Boards
• 8.8 Feet / Minute Maximum Speed
Specifications
Item # | 04TAMTCC1400F |
---|---|
Manufacturer | Tamerica |
Manufacturer Part Number | 700001 |
Power Voltage | 110 Volts 15amp |
Castors | Yes |
Dimensions | 14 ¼" D x 23 ¾" W x 47" H [on stand] |
Certifications | UL Pending |
Manufacturer's Warranty | 1 Year Limited |
Assembly Required | Yes |
Compliance & Warnings | Cancer & Reproductive Harm [Prop 65] Visit www.p65warnings.ca.gov for info |
Size | 14" |
Color | Black |
Operation | Electric |
Double-Sided Lamination | Yes |
Single-Sided Lamination | No |
Thermal Laminating | Yes |
Digital Laminating (Low-Temp) | No |
Cold Laminating | No |
Speed | 8.8' / Minute (Feet per Minute) |
Adjustable Speed | Yes |
Heating Type | Rollers |
Warm-Up Time | 8-10 Minutes |
Maximum Mil Thickness | 10 Mil |
Temperature Range | 176° - 248°F (80° -140°C) |
Maximum Width | 14" |
Core Size | 1" Core |
Reverse Function | Yes |
Capable of Mounting | Yes |
Maximum Mounting Thickness | 3/16" Boards |
Capable of Foiling | Yes |
Compatible Foil Core Size | 1" Core |
Maximum Foil Roll Width | 14" |
De-Curling Device | No |
Integrated Cutter | Dual Rear Slitters (Fixed on a bar; slides side-to-side) |
Document Guides | Yes |
Liner Take-Up | Yes |
Stand-By / Power-Save Mode | No |
Auto-Shut Off | No |
Mounted Onto Stand | No |
Removable from Stand (for Tabletop Use) | Yes |
Shipping Weight (lbs) | 101 |
Product Weight (lbs) | 91 |
Description

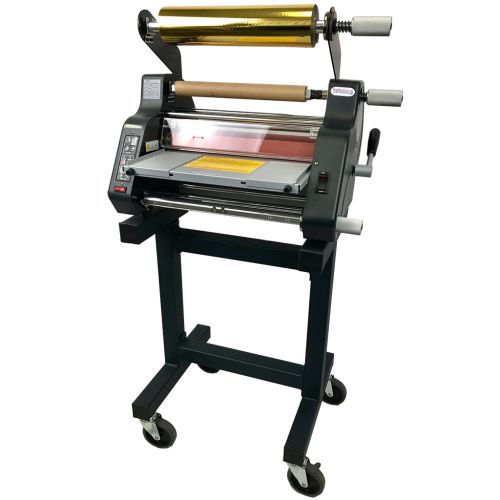

With the Tamerica TCC 1400F+ roll laminator and foil fuser, you can achieve premium quality lamination and foiling with one compact and economical machine. No longer will you have to spend your budget on two expensive machines; this one unit will do it all, including even mounting up to 3/16" thick. It feature variable heat and speed controls so you can tailor the machine to your specific application requirements, as well as a stand that keeps the machine at a comfortable working height. The TCC 1400 Foil Plus handles documents up to 14" wide and 3/16" thick and is compatible with lamination films and foil fusing rolls that have a 1" core. A take-up roller is used with foil films to wind the foil as it exits. The Tamerica TCC 1400F Plus also has a roller engage/disengage button, reverse function, a temperature conversion feature, a sliding lower "J" bar for easy film loading, and a 2-side rear film slitter, and a guide plate to assist with letter size documents.
