Keencut SteelTrak 65" Vertical Sign Cutter (ST165)
5061.6
NewCondition
InStock
Keencut SteelTrak 65" Vertical Sign Cutter (ST165)
SWIPE FOR MORE IMAGES
- 0
- 1
- 2
Overview
The SteelTraK 65" Multi-Substrate Cutter (ST165) by Keencut has been designed and built by Keencut engineers to enable sign makers to easily meet the challenge of processing increasingly complex materials used in the modern sign industry. Cutting without noise or airborne debris the SteelTraK can be installed at any point in the production process without compromising valuable artwork or equipment.
Specifications
| Item # | 04FMSTEELT65 |
|---|---|
| Manufacturer | Keencut |
| Manufacturer Part Number | ST165 |
| Operating Method | Manual |
| Compatible Supplies & Accessories | SteelTrak Replacement Blades, Stand Kit, & Accessories |
| Dimensions | Wall Mounted: 84" W x 20-22" D 96" H Mounted to Free Standing Kit: 84" W x 40" D 96" H |
| Manufacturer's Warranty | Guaranteed for 5 Years |
| Size | 65" |
| Safety Features | Automatic Blade Retraction After Cut |
| Can Cut Materials | Foam Board Corrugated Plastic Glass (≤ 6mm) with Glass Cut Kit Acrylic & Cast Acrylic (≤ 6mm) Plexiglas (≤ 6mm) Aluminium Composite (DiBond ≤ 4mm) MDF (≤ 3mm) PVC Foam Cardboard (≤ 13mm) Conservation Board ≤ 13mm Flexible Pol |
| Shipping Information | This item ships via Truck (Common Carrier). It is the responsibility of the Consignee (receiver) to remove the product from the truck. If you do not have a loading dock or any other means to lift the freight off the truck and/or you need assistance bringing the product inside of your location please call (866) 537-2244. Click here for full details. |
Description
The SteelTraK Multi-Substrate Cutter by Keencut has been designed and built by Keencut engineers to enable sign makers to easily meet the challenge of processing increasingly complex materials used in the modern sign industry. Cutting without noise or airborne debris the SteelTraK can be installed at any point in the production process without compromising valuable artwork or equipment.
Building on the huge success of the all-purpose Keencut Excalibur, and recognising the increasing demands of thicker, tougher sign materials, the SteelTraK is strong, versatile, safe and easy to use. Virtually maintenance free and built to last almost indefinitely in the toughest working conditions the SteelTraK is now a piece of essential equipment in sign making workshops in over 70 countries world-wide.
 |
TURN & LOCK READY MOUNTED TOOLS
ALL BLADES CUT ON SAME LINE
|
 |
LOW FRICTION BALL BEARINGS ON A STEEL TRACK FOR ULTRA-SMOOTH OPERATION
|
 |
FUTURE PROOF & EASY TO USE
|
 |
TELESCOPIC LEGS
PERMA-LOCK SQUARING
|
 |
UNIVERSAL 4 TOOL CUTTING HEAD WITH AUTO BLADE DISENGAGEMENT
TOOLS INCLUDE:
|
 |
FULL LENGTH EXTRA-GRIP CLAMPING SYSTEM
TRANSPARENT CUTLINE CURSOR
|
 |
QUICK SET PRODUCTION STOPS
|
 |
AVAILABLE IN THREE CUTTING LENGTHS:
|
 |
TWIN WHEEL CUTTING HEAD - NOISELESS & DUST-FREE
|
 |
STEELTRAK SQUARING ARM EXTENSION
|
STANDARD FEATURES & PERFORMANCE
- Multi-tool cutting head provides the maximum convenience and is permanently attached to prevent loss
- Universal cut line for quick, simple, and accurate cut set-up
- Integral counterbalance - total convenience - no shock - less fatigue - easy loading
- Extruded back beams - firm support for large & small sheets
- Full length extra grip clamping system
- Heavy duty steel composite twin wheel cutting head. Keencut invention 1983
- Twin Wheels cut DiBond™ in a single clean pass
- Precise horizontal & vertical scales (Imperial & Metric)
- Wall mounted as standard but with a free-standing option
- Twin Production Stops
- Accepts standard utility blades for the majority of applications
- 3 Standard Turn & Lock ready mounted tools for instant action. Glass cutting can be added for create 4 Turn & Lock Tools.
- Accepts bolt-on accessories; suitable for existing & future innovations
- Precise screw adjusted perma-lock squaring. Accurately cut panels every time
- Rotating Tool Turret for instant tool change
- Transparent cutline cursor - renewable - fixed - ultra precise - no laser shake - no doubt and no wasted panels
- Hinge-out slide track for access and maintenance
- Pre-lubricated ball bearings on steel tracks for precision, low friction & trouble-free life without adjustment
EASE OF OPERATION & SAFETY
- Total dust free operation - safe to use near printers and plotters
- Pre-lubricated, low friction ball bearings on a steel track for ultra-smooth operation
- Automatic blade disengagement at the end of cut - blade safely retracts
- All blades cut on the same line. One production stop setting - One measurement - One cutline - No special operator training
- Optional stand has telescopic legs adjust for height & minimum fatigue
GUARANTEES & CONSTRUCTION
- 100% manufactured by Keencut Technicians in England to the highest quality standards
- 99.98% of materials from the best suppliers in Western Europe
- High tensile aerospace aluminium alloy construction
- Super grade anodising for lifetime good looks and function
- Designed specifically for the design & display industries
- Guaranteed for 5 Years
- Register your Machine here > (keencut.com)
MATERIALS THE STEELTRAK WILL CUT
- Cast Acrylic ≤ 6mm
- Plexiglas ≤ 6mm
- Aluminium Composite (DiBond) ≤ 4mm
- V-grooves DiBond ≤ 6mm with Optional SteelTraK V-groover
- MDF ≤ 3mm
- Glass ≤ 6mm with optional Glass Cutting Kit
- Cardboard ≤ 13mm
- Conservation Board ≤ 13mm
- Foam Centred Board ≤ 13mm
- Flexible Polycarbonate ≤ 3mm
- Mountboard ≤ 13mm
- Polystyrene ≤ 13mm
- Aluminium Sheet ≤ 1mm with optional STALC
- PVC Foamboard (Forex) ≤ 13mm, and more
Videos
Keencut LIVE! How to Calibrate and use the V-groover tool on your SteelTrak
Transcript:
Watch our Keencut LIVE series that walks you through how to calibrate and use the V-groove tool on your SteelTrack vertical cutter.
Watch our Keencut LIVE series that walks you through how to calibrate and use the V-groove tool on your SteelTrack vertical cutter.
Keencut LIVE! How to square your SteelTrak
Transcript:
Calling all Keencut users. We are excited to announce our brand new program of free 15-minute LIVE training sessions. These are designed to answer your questions and maximize the impact of your Keencut products. In this video, we walk you through how to square your SteelTrak vertical cutter.
Calling all Keencut users. We are excited to announce our brand new program of free 15-minute LIVE training sessions. These are designed to answer your questions and maximize the impact of your Keencut products. In this video, we walk you through how to square your SteelTrak vertical cutter.
15 Minute Live Training Session - How to install and correctly use glass cutting kit for SteelTrak
Transcript:
Each short session is hosted Live on YouTube and is designed as a bite-sized learning opportunity to improve productivity and precision. We will be sharing the link soon. In this session you can learn how to install and correctly use the glass cutting kit on your SteelTrak vertical cutter.
Each short session is hosted Live on YouTube and is designed as a bite-sized learning opportunity to improve productivity and precision. We will be sharing the link soon. In this session you can learn how to install and correctly use the glass cutting kit on your SteelTrak vertical cutter.
Additional Videos
Keencut SteelTrak - Cut and Finish ACM in a Single Pass
Keencut SteelTrak - Time Challenge Video

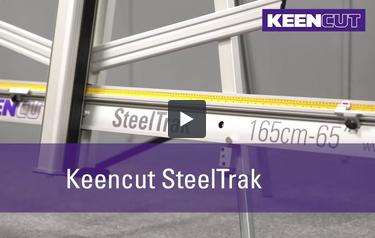

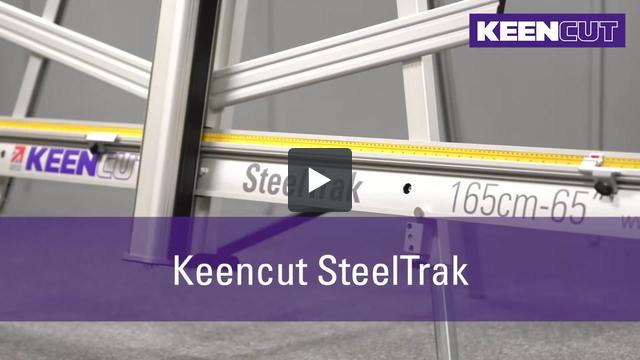

Keencut Steeltrak Substrate Cutter Demo Video
Transcript:
The Keencut SteelTrak is the market leading cutter for rigid and semi rigid materials including composite panels. It quickly and easily cuts through heavy-duty materials making it ideal for many different industries and it comes with a cutting blade, scoring blade and composite cutting wheels as standard. The SteelTrak will efficiently cut through PVC foamboard, corrugated plastic and foam-centered board up to 13mm thick, aluminum composite panels up to 4mm thick, or MDF up to 3mm thick. The C2 cutting head for SCP cutting reduces offcut bend and easily cuts steel and aluminum composite panels without creating sparks or dust. Designed for a busy production environment, the SteelTrak is built from durable anodized aluminum. The steel bearing system guides the cutting head up and down the machine to ensure perfect blade control and exceptional reliability, even with heavy everyday use. And as a manually operated cutter, the SteelTrak produces accurate smooth edges without the noise, dust and static build-up associated with powered cutters. All the standard options are mounted permanently in the cutting head so switching between the different cutting options is fast easy and safe. Aligning materials for an accurate cut is simple, you just use the pressure-sensitive clamping system and the sightline strip. You will see precisely where the cutting line will be for all fitted blades. The optional composite board V-grooving tool can be added in seconds. The SteelTrak can be fitted in almost any workshop, either mounted to save space, or in the freestanding configuration. As you would expect from the manufacturers of the world's finest cutting machines, Keencut offers a comprehensive five-year guarantee on all SteelTrak parts making the Keencut SteelTrak the future proof investment for any busy production facility.
Keencut SteelTrak - Cut and Finish ACM in a Single Pass
Keencut SteelTrak - Time Challenge Video
Keencut Steeltrak Substrate Cutter Demo Video
Transcript:
The Keencut SteelTrak is the market leading cutter for rigid and semi rigid materials including composite panels. It quickly and easily cuts through heavy-duty materials making it ideal for many different industries and it comes with a cutting blade, scoring blade and composite cutting wheels as standard. The SteelTrak will efficiently cut through PVC foamboard, corrugated plastic and foam-centered board up to 13mm thick, aluminum composite panels up to 4mm thick, or MDF up to 3mm thick. The C2 cutting head for SCP cutting reduces offcut bend and easily cuts steel and aluminum composite panels without creating sparks or dust. Designed for a busy production environment, the SteelTrak is built from durable anodized aluminum. The steel bearing system guides the cutting head up and down the machine to ensure perfect blade control and exceptional reliability, even with heavy everyday use. And as a manually operated cutter, the SteelTrak produces accurate smooth edges without the noise, dust and static build-up associated with powered cutters. All the standard options are mounted permanently in the cutting head so switching between the different cutting options is fast easy and safe. Aligning materials for an accurate cut is simple, you just use the pressure-sensitive clamping system and the sightline strip. You will see precisely where the cutting line will be for all fitted blades. The optional composite board V-grooving tool can be added in seconds. The SteelTrak can be fitted in almost any workshop, either mounted to save space, or in the freestanding configuration. As you would expect from the manufacturers of the world's finest cutting machines, Keencut offers a comprehensive five-year guarantee on all SteelTrak parts making the Keencut SteelTrak the future proof investment for any busy production facility.
The Keencut SteelTrak is the market leading cutter for rigid and semi rigid materials including composite panels. It quickly and easily cuts through heavy-duty materials making it ideal for many different industries and it comes with a cutting blade, scoring blade and composite cutting wheels as standard. The SteelTrak will efficiently cut through PVC foamboard, corrugated plastic and foam-centered board up to 13mm thick, aluminum composite panels up to 4mm thick, or MDF up to 3mm thick. The C2 cutting head for SCP cutting reduces offcut bend and easily cuts steel and aluminum composite panels without creating sparks or dust. Designed for a busy production environment, the SteelTrak is built from durable anodized aluminum. The steel bearing system guides the cutting head up and down the machine to ensure perfect blade control and exceptional reliability, even with heavy everyday use. And as a manually operated cutter, the SteelTrak produces accurate smooth edges without the noise, dust and static build-up associated with powered cutters. All the standard options are mounted permanently in the cutting head so switching between the different cutting options is fast easy and safe. Aligning materials for an accurate cut is simple, you just use the pressure-sensitive clamping system and the sightline strip. You will see precisely where the cutting line will be for all fitted blades. The optional composite board V-grooving tool can be added in seconds. The SteelTrak can be fitted in almost any workshop, either mounted to save space, or in the freestanding configuration. As you would expect from the manufacturers of the world's finest cutting machines, Keencut offers a comprehensive five-year guarantee on all SteelTrak parts making the Keencut SteelTrak the future proof investment for any busy production facility.
