MBM Triumph 6660-VRCut 25-1/2" Automatic Programmable Paper Cutter
19599 NewCondition InStock

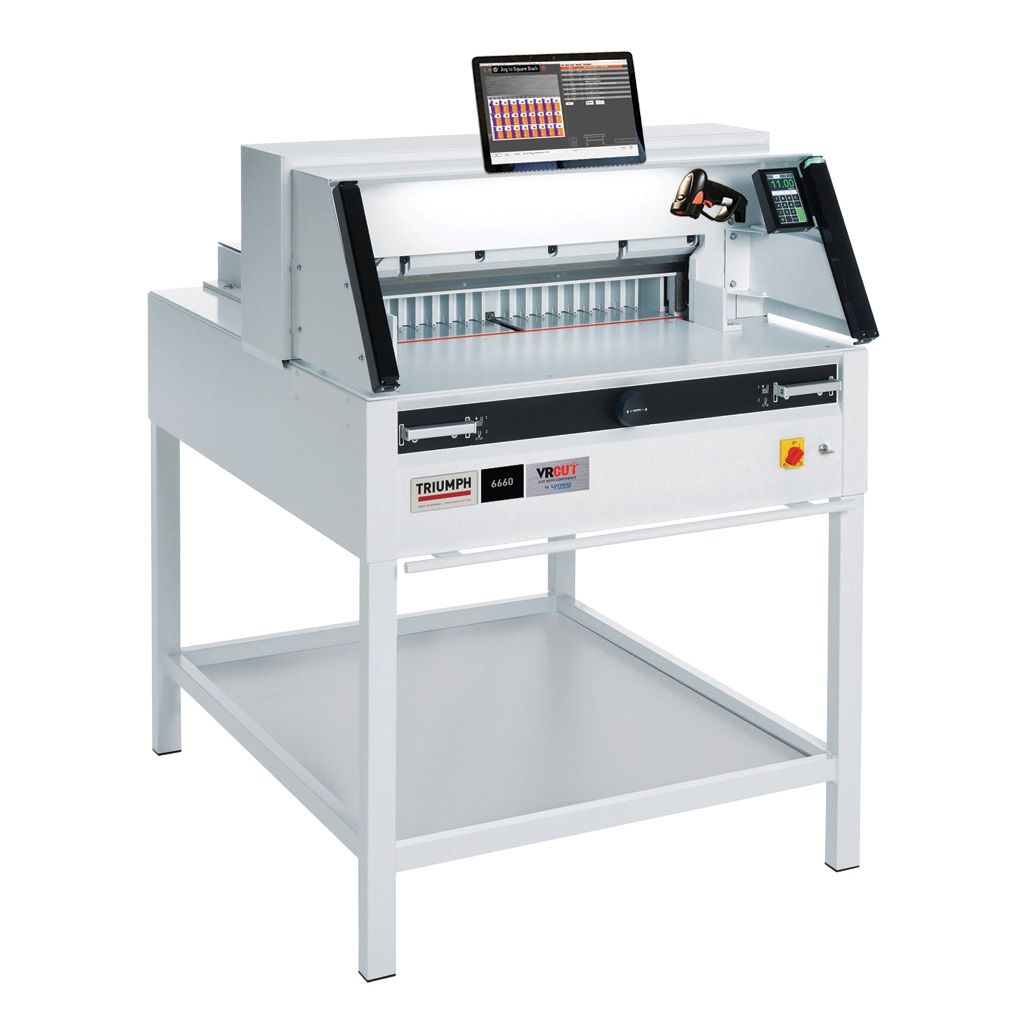

MBM Triumph 6660-VRCut 25-1/2" Automatic Programmable Paper Cutter

Item #: 04MBM6660VR
Brand: MBM
  • Cutting Width: 25 1/2"
  • Cutter Capacity: 3" Thick Stack (About 750 Sheets)
  • Narrow Cut: 1"
  • Length Behind Blade: 24"
  • 1 Year Manufacturer Warranty
  • Price Match Guarantee!
  • Oversize / Truck Shipping
  • Brand New

$19,599.00

Buy Now, Pay Later
Starting at $1,813/monthLearn More >

SWIPE FOR MORE IMAGES
  • 0
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
video

Overview

The MBM Triumph 6660-VRCut 25-1/2" Automatic Programmable Paper Cutter is an automatic machine suitable for a wide range of paper cutting applications. Designed with efficiency in mind, the unit provides automatic clamping paired with an easily programmable powered back gauge. The patented "Easy-Cut" blade activating bars ensure a safe and accurate cutting operation, while the IR light beams enhance the safety features further. Easy to use, the 6660-VRCut has multilingual touch pad controls and can store up to 99 jobs with 99 steps each (up to 15 repeat cuts can be integrated as a single step).

Save more with the optional MBM Triumph 6660-VRCut Cutter Package. This package includes Triumph 6660-VRCut cutter, side tables, knife, and cutter sticks (6pk).

Specifications

Item # 04MBM6660VR
Manufacturer MBM
Manufacturer Part Number CU0492V
Brand Name MBM
Operation Electric
Cutting width 25 1/2"
Cutting height 3"
Narrow cut 1"
Length behind blade 24"
Maximum Horsepower 2
Power Voltage 115 V, 60 Hz (20 amp dedicated line required)
Dimensions (D x W x H) 48 x 39 x 51 (61 1/2 W with side tables)
Shipping Weight (lbs) 775 (796 with side tables)
Shipping Information
This item ships via Truck (Common Carrier). It is the responsibility of the Consignee (receiver) to remove the product from the truck. If you do not have a loading dock or any other means to lift the freight off the truck and/or you need assistance bringing the product inside of your location please call (866) 537-2244. Click here for full details.

Description

The MBM Triumph 6660-VRCut 25-1/2" Automatic Programmable Paper Cutter is an automatic machine suitable for a wide range of paper cutting applications. Designed with efficiency in mind, the unit provides automatic clamping paired with an easily programmable powered back gauge. The patented "Easy-Cut" blade activating bars ensure a safe and accurate cutting operation, while the IR light beams enhance the safety features further. Easy to use, the 6660-VRCut has multilingual touch pad controls and can store up to 99 jobs with 99 steps each (up to 15 repeat cuts can be integrated as a single step). This machine also comes with the VRCut Software that offers an ingenious way to automatize and streamline your workflow while eliminating errors from the cutting process.

Save more with the optional MBM Triumph 6660-VRCut Cutter Package. This package includes Triumph 6660-VRCut cutter, side tables, knife, and cutter sticks (6pk).

Features:

  • Programmable cutter with automatic clamp, power back gauge, digital touchpad, and IR safety light beams on front table.
  • Ergonomic, 37 inch working height.
  • VRCut is a groundbreaking software solution designed to automate the cutting workflow by promoting an efficient and error-free cutting process from start to finish. VRCut intelligently bridges the gap between pre-press and the finishing process, allowing operators of any experience level the ability to cut with confidence on select Triumph cutters.
  • Electric blade and clamp drive
  • Electric back gauge drive with touchpad for easy programming.
  • Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch.
  • Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step).
  • Pre-programmed for standard paper sizes.
  • Memory key for repeat cuts.
  • Automatic SET function for reference measurement and EJECT function for pushing out paper.
  • Self-diagnostic system with error indication on display.
  • Electronic back gauge control with variable speed control for manual back gauge setting.
  • Bright, LED optical cutting line.
  • 3-step, LED front table illumination
  • Adjustable, spindle guided back gauge with narrow separations and plastic gliders.
  • Dual side guides on front and rear tables.
  • High quality, German steel blade.
  • Solid steel blade carrier and adjustable blade guides.
  • All-metal construction.
  • Includes stand with storage shelf, easy-access tool holder, and paper blocking tool.
  • Optional side tables increase work surface.
  • UL and C UL approved.

Comes with FREE VRCut Controller Hardware Kit:





After registering your VRCut license you have the option to order a complete VRCut Controller Hardware Kit at no cost (free shipping included within the United States). The VRCut Controller Hardware Kit comes with everything you need, including a touchscreen PC tablet with VRCut Controller license installed, a barcode scanner, mount and all of the required cabling. Open the box, set up the components, and you’re ready to go!

Comprehensive SCS™ Safety Package:

  • An IR light beam safety curtain on the front table
  • Patented EASY CUT electronic blade activation bars for true two-hand operation
  • Transparent safety cover on rear table
  • Main switch and safety lock with key
  • 24 volt controls (low voltage)
  • Patented IDEAL safety drive
  • Automatic blade and clamp return from every position
  • Disc brake for instant blade stop
  • Blade changing device covers cutting edge of blade
  • Blade depth adjustment from outside of machine
  • Blade and cutting stick can be changed without removing covers.

Videos

MBM VR Cut Models – How to Use the Control Panel

Transcript: Speaker 1:
Today we're going to be demonstrating the VR Cut Controller. The VR Cut Controller will automatically guide the operator with a visual interface. To start the job, we're on a Triumph 5260. We click the start button and read the bar code on the job layout. The job layout was created in VR Cut Impose, and it automatically calls in the appropriate template. It gives the operator an option to call in the actual artwork. And that way you can actually see the-
VR Cut Controller:
Jog to s...
Read More
Speaker 1:
Today we're going to be demonstrating the VR Cut Controller. The VR Cut Controller will automatically guide the operator with a visual interface. To start the job, we're on a Triumph 5260. We click the start button and read the bar code on the job layout. The job layout was created in VR Cut Impose, and it automatically calls in the appropriate template. It gives the operator an option to call in the actual artwork. And that way you can actually see the-
VR Cut Controller:
Jog to squares down.
Speaker 1:
-artwork that you're heading. The backgauge moves to the first position.
VR Cut Controller:
Ready to cut step one.
Speaker 1:
The operator places the document into the cutter to ensure that it can cut. You'll see it will have the visual marker on the paper,-
VR Cut Controller:
Rotate 90 clockwise.
Speaker 1:
-as well as on the screen. Now they have the audio command. Visual commands to rotate the paper. Also, it alines with cut two- [crosstalk 00:01:02].
VR Cut Controller:
Scan two.
Speaker 1:
-on the paper and on the screen. You'll see lid trash can open to indicate that there's a scrap to throw away.
VR Cut Controller:
Rotate 90 clockwise.
Speaker 1:
We rotate the paper-
VR Cut Controller:
Ready to cut step three.
Speaker 1:
-throw away the scrap.
VR Cut Controller:
Ready to cut step four.
Speaker 1:
And you'll notice in this case that the table on the-
VR Cut Controller:
Ready to cut step five.
Speaker 1:
-screen has the-
VR Cut Controller:
Rotate 90 clockwise.
Speaker 1:
-has the work table. Now you take the page off the work table, rotate it, place it onto the cutter.
VR Cut Controller:
Ready to cut step six. Ready to cut step seven.
Speaker 1:
No rotation here. Now you'll notice the two pieces move over to-
VR Cut Controller:
Ready to cut step eight.
Speaker 1:
-the pallet indicating they are finished. This edge rips off the bleed edge.
VR Cut Controller:
Job complete.
Speaker 1:
And now the final two are push forward, and the job is complete.
