Keencut Excalibur 3S Vertical Board Cutter (Discontinued)
4285.71
NewCondition
OutOfStock
Keencut Excalibur 3S Vertical Board Cutter (Discontinued)
We're sorry, but we no longer sell this item.
Below are a few alternative options that may be a great fit for your needs.
If not, please call us at (866) 537-2244 for personalized recommendations.
Overview

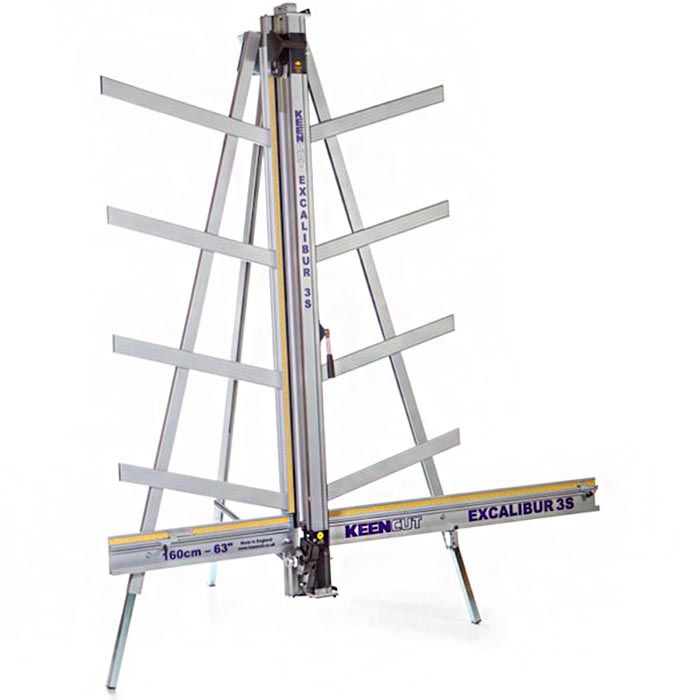

The Keencut Excalibur 3S is a new, innovative vertical board cutter that was designed to replace the discontinued Excalibur 1000X cutter. This premium cutting machine can either be mounted to your wall, or placed onto the optional free standing kit. It will cut through a huge variety of materials (such as foam board, corrugated plastic, polycarbonate, magnetic sheets, cast acrylic, and more) up to 63" long, and was manufactured in the UK to the highest quality standards. It is the perfect multi-substrate cutter for print and sign shops that need the versatility and cut length that it offers, but don't need all the bells and whistles (such as those available on the SteelTrak cutter).
The Excalibur 3S features self-lubricating bearings on both cutting heads for a smooth and clean cut, and a full-length material clamp will ensure your material is held perfectly still. A clear sight line strip shows you exactly where your boards will be cut, and a twin wheel cutting system helps reduce noise and dust. These features combine to create an outstanding accuracy-of-cut.
With the new and improved Exclaibur 3S cutter by Keencut, you can produce the highest quality of cut on a huge variety of items, all conveniently in the vertical-cut format. It is perfect for print shops of many sizes, and will work with a variety of replacement blades available. It comes with the standard Keencut warranty, which includes 5 year coverage of all parts (excluding blades, clamping strips, and cutting wheels) and a 20 year warranty on the bearings. Included for free with your purchases is 1 pack of medium duty blades (100 blades) and a wall mounting kit.
Specifications
| Item # | 04EXCAL3S |
|---|---|
| Manufacturer | Keencut |
| Manufacturer Part Number | EXC3S |
| Operating Method | Manual |
| Included Supplies & Accessories | 1 Box of Medium Duty Blades (100 / Box) Wall-Mounting Bracket |
| Compatible Supplies & Accessories | Excalibur 3S Replacement Blades, Stand Kit, & Accessories |
| Dimensions | 84" W x 12-16" D (Wall Mount Depth) x 96" H Depth with Optional Freestanding Kit: 32” – 36” |
| Manufacturer's Warranty | Guaranteed for 5 Years |
| Country of Manufacture | 100% Manufactured in the UK |
| Size | 63" |
| Safety Features | Automatic Blade Retraction After Cut |
| Can Cut Materials | Foam Board Corrugated Plastic Glass Acrylic PVC Foam Flexible Polycarbonate Polystyrene & More! Call (866)537-2244 for Sample Material Testing |
| Shipping Weight (lbs) | 185.1 |
| Shipping Information | This item ships via Truck (Common Carrier). It is the responsibility of the Consignee (receiver) to remove the product from the truck. If you do not have a loading dock or any other means to lift the freight off the truck and/or you need assistance bringing the product inside of your location please call (866) 537-2244. Click here for full details. |
Description
The Excalibur 3S is a premium cutting machine with exceptional return on investment. It is ideal for those who do not need the heavy production features of the SteelTrak. The Excalibur 3S is suited to the regular cutting of light and medium-weight boards and can also cut tough materials including 3mm (3/32″) aluminum composite panels. Simple alignment and permanently mounted blades guarantee a fast and accurate finish. Its unique features will allow you to improve quality, reduce waste and increase productivity.
Excalibur 3S Features:
- • Allows quick access to 3 cutting tools attached to cutting head (composite twin wheel cutting head, standard utility blade, scoring blade for acrylic).
• Instantly switch tools - It takes no more than 2 seconds to select any of the cutting tools.
• Minimal maintenance - Incorporates sealed self-lube bearings. No special skills required for maintenance.
• Blades all cut on the same line.
• 13 mm (1/2") blade cutting capacity - Cuts materials up to 13 mm (1/2") thick
• Acrylic Scoring blade - Uses inexpensive standard utility blade for scoring acrylic up to 6mm thick.
• Counterbalance keeps the cut head in any position, so it doesn't drop down to the bottom.
• Auto blade disengagement- When using the lower cutting blade and scoring blade the cutting head. automatically disengages ready for the next cut.
• Turn-and-lock ready tools.
• Twin-wheel cutting system reduces noise and dust.
• Full length material clamp.
• Pressure sensitive clamp - The vertical cutter clamping system is unsurpassed it operates perpendicular to the material face and applies the right amount of pressure to grip ACP or lightweight foam centered board.
• Clear view of the cutting line, so it is easy to see where your material will be cut.
• Telescoping legs are adjustable for your optimal height.
• Single piece squaring arm - Manufactured from one piece of high grade aluminum extrusion for perfect horizontal alignment.
• Two flip-stops make cutting easy.
• Blade supports - Adjustable steel supports allow maximum blade control particularly for thinner tough materials.
• Vertical measuring scale - Conveniently measuring the height of the board on the machine.
• Left and Right hand measuring stops - Quick set production stops for accurate fast one-off and production cutting.
• Precision squaring adjuster - Perma-lock squaring adjustment for setting precisely at 90 degrees.
• Includes bracket for wall mounting. Optional stand also available.
• Floor mounted - A-frame construction mounted on the floor, with safety wall fixing at the top. Weight of machine, material and cutting forces go down through the floor.
• Anodised aluminum construction - High grade European extrusions made to Keencut's specification, designed for the purpose.
• Guaranteed for 5 Years.
• 100% manufactured in the UK.
Excalibur 3S Cutting Capacities:
- • PVC Foamboard - 13mm
• Corrugated Plastic (Fluted) - 13mm
• Foam Core Boards - 13mm
• Flexible Polycarbonate - 3mm
• Magnetic Sheets - 4mm
• Cast Acrylic / Plexiglas (Score & Snap) - 6mm
• Aluminum Composite Panels (Dibond) - 3mm
• MDF Board - 3mm
Videos
Keencut Excalibur 3S Vertical Cutter Overview
Transcript:
If you are looking for an affordable cutter for tough sheet materials, the Excalibur 3S is the machine for you. It's ideal for the busy studio or workshop and will give you a quick payback with reduced waste and savings on cutting time. Developed by Keencut's world leading experts, the Excalibur 3S is simple, intuitive to operate and provides a consistent perfect cut every time.
We have already set-up the Excalibur 3S using Keencut's quick precision 90 degree squaring system and by adjusting ... Read More
We have already set-up the Excalibur 3S using Keencut's quick precision 90 degree squaring system and by adjusting ... Read More
If you are looking for an affordable cutter for tough sheet materials, the Excalibur 3S is the machine for you. It's ideal for the busy studio or workshop and will give you a quick payback with reduced waste and savings on cutting time. Developed by Keencut's world leading experts, the Excalibur 3S is simple, intuitive to operate and provides a consistent perfect cut every time.
We have already set-up the Excalibur 3S using Keencut's quick precision 90 degree squaring system and by adjusting the telescopic legs. The material stands easily on the one piece squaring arm. There are two ways to set-up for your cut. Use the [cycline 00:00:48] strip for cutting accurately to crop lines or use the production stops when cutting to size. Keencut's unique full length pressure sensitive clamp provides maximum clamping to hold tough materials precisely for a perfect cut.
A silicone rubber cord gently holds delicate or printed surfaces without damage and the cycline strip achieves accuracy every time without the need for expensive, unpredictable lasers. All of the tools on the Excalibur 3S are permanently attached, ready for action and cut along the same line. The multiple tool head cuts or scores without the need for expensive specialist blades. For thicker materials, the automatic ratchet system provides incremental cutting for a quality finish. For the dust and noise free cutting of Dibond and MDF, select the twin-wheel cutter. This creates a safe, clean edge in a single pass.
As with all Keencut products, the Excalibur 3S is safe by design, robust, durable and made with premium quality materials.
We have already set-up the Excalibur 3S using Keencut's quick precision 90 degree squaring system and by adjusting the telescopic legs. The material stands easily on the one piece squaring arm. There are two ways to set-up for your cut. Use the [cycline 00:00:48] strip for cutting accurately to crop lines or use the production stops when cutting to size. Keencut's unique full length pressure sensitive clamp provides maximum clamping to hold tough materials precisely for a perfect cut.
A silicone rubber cord gently holds delicate or printed surfaces without damage and the cycline strip achieves accuracy every time without the need for expensive, unpredictable lasers. All of the tools on the Excalibur 3S are permanently attached, ready for action and cut along the same line. The multiple tool head cuts or scores without the need for expensive specialist blades. For thicker materials, the automatic ratchet system provides incremental cutting for a quality finish. For the dust and noise free cutting of Dibond and MDF, select the twin-wheel cutter. This creates a safe, clean edge in a single pass.
As with all Keencut products, the Excalibur 3S is safe by design, robust, durable and made with premium quality materials.
