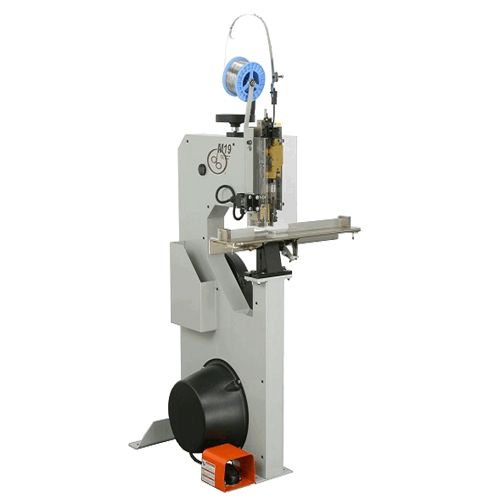

DeLuxe M19G20-AST 3/4" Stitcher w/ G20 stitch head
9670 NewCondition InStock

DeLuxe M19G20-AST 3/4" Stitcher w/ G20 stitch head

Item #: 04DSM19G20AST
Brand: DeLuxe
  • Capacity: From 2 sheets to 3/4"
  • Wire Sizes: 20-28 round and 19 x 21-1/2, 20 x 24 and 21 x 25 flat
  • Throat: 14" throat for flat and saddle work
  • Speed: 190 stitches per minute
  • Price Match Guarantee!
  • Oversize / Truck shipping
  • Brand New
  • In Stock

$9,670.00

SWIPE FOR MORE IMAGES
  • 0
  • 1

Overview

The DeLuxe M19G20-AST is a single-head stitcher designed to accommodate both light and heavy-duty work. It can stitch both flat and saddle ,and is recognized for being the perfect stitcher for the smaller bindery due in part to its 3/4” (20mm) capacity and range of crown sizes. The M19 is foot-switch operated and belt driven by a 1/2 HP motor, making possible cycle speeds up to 200 stitches per minute. It accommodates the Side-Feed Style G20 Stitcher Head. Recommended wire sizes for the M19 are: 20 to 28 gauge round wire and 19x21-1/2, 20x24 and 21x25 flat wire.

Specifications

Item #04DSM19G20AST
ManufacturerDeLuxe Stitcher Company, Inc
Brand NameDeLuxe Stitcher
Manufacturer Part NumberM19G20 AST
Binding StyleSaddle Stitching
Operation: BindingElectric
Power Voltage110 V
Speed190 stitches per minute
Dimensions30" W x 35" D x 64" H
CertificationsCE Compliant
Manufacturer's Warranty90 Day Limited
Throat Depth14"
Product Weight (lbs)369
Shipping Weight (lbs)400

Description

The DeLuxe M19G20-AST is a single-head stitcher designed to accommodate both light and heavy-duty work. It can stitch both flat and saddle ,and is recognized for being the perfect stitcher for the smaller bindery due in part to its 3/4” (20mm) capacity and range of crown sizes.

The M19 is easily adjusted from saddle work to flat work by tilting the 5-1/2" x 26" work table. An adjustable work guide and adjustable work stops are easily attached to the work table and provide for accurate registering of flat work for uniformly spacing the stitches. In addition a work table extension is provided to accommodate larger format work.

The M19 is foot-switch operated and belt driven by a 1/2 HP motor, making possible cycle speeds up to 200 stitches per minute. The motor is mounted on an adjustable bracket which can be raised or lowered to adjust driving belt tension. The driving mechanism is thoroughly shielded, preventing the possibility of personal injury.

The M19 has a 14" throat depth for either flat or saddle stitching. The work table is approximately 35" above the floor and there is approximately 1" clearance between the top of the work to be stitched and the protective guarding around the stitcher head.

It accommodates the Side-Feed Style G20 Stitcher Head. Recommended wire sizes for the M19 are: 20 to 28 gauge round wire and 19x21-1/2, 20x24 and 21x25 flat wire.

Features:

  • Capacity: From 2 sheets to 3/4"
  • Wire Sizes: 20-28 round and 19 x 21-1/2, 20 x 24 and 21 x 25 flat
  • Clinch: moveable clincher for flat stitching
  • Table: 26" wide heavy duty
  • Throat: 14" throat for flat and saddle work
  • Speed: 190 stitches per minute
  • Compatible Stitching Head: Side-Feed Style G20 Stitcher Head
  • Manufacturers Warranty - 90 Days
